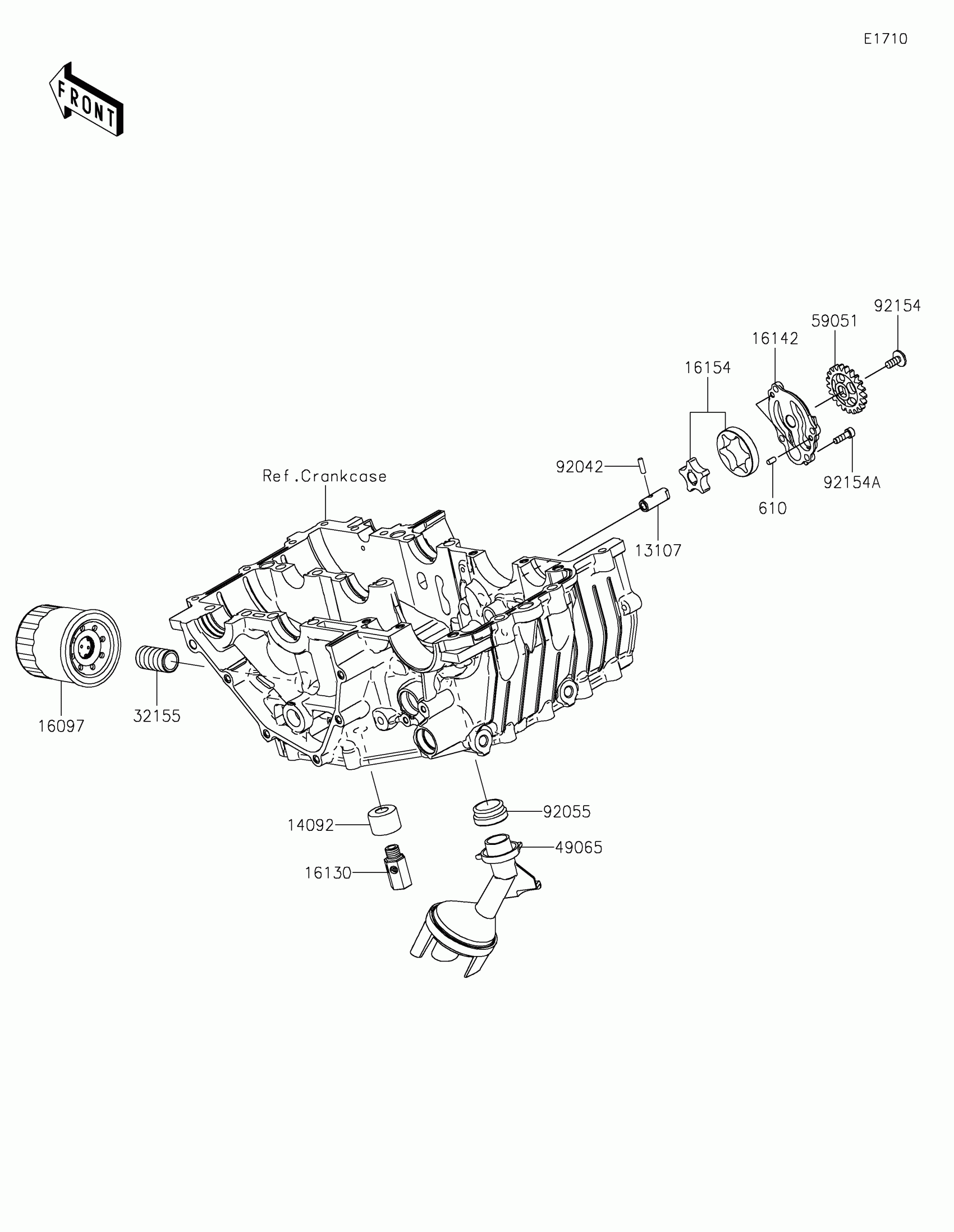

Kawasaki Ninja 500 SE ABS Oil Pump/Oil Filter Diagram

Description

Price

13107

SHAFT

13107-0905

$40.64

14092

COVER,RELIEF VALVE

14092-1002

$2.64

16097

FILTER-ASSY-OIL

16097-0552

Unavailable

16130

VALVE-ASSY-RELIEF

16130-0006

$41.98

16142

COVER-PUMP

16142-0748

$29.59

16154

ROTOR-PUMP

16154-0738

$70.18

32155

PIPE,OIL FILTER

32155-0029

$14.94

49065

FILTER-OIL

49065-0048

$25.89

59051

GEAR-SPUR,OIL PUMP,21T

59051-0797

$99.21

92042

PIN,DOWEL,4X13.8

92042-030

$3.92

92055

RING-O,OIL FILTER

92055-1354

$9.51

92154

BOLT,SOCKET,6X14

92154-2731

$2.17

92154A

BOLT,SOCKET,5X16

92154-2792

$1.69

610

ROLLER,4X8

610A0408

$4.31
