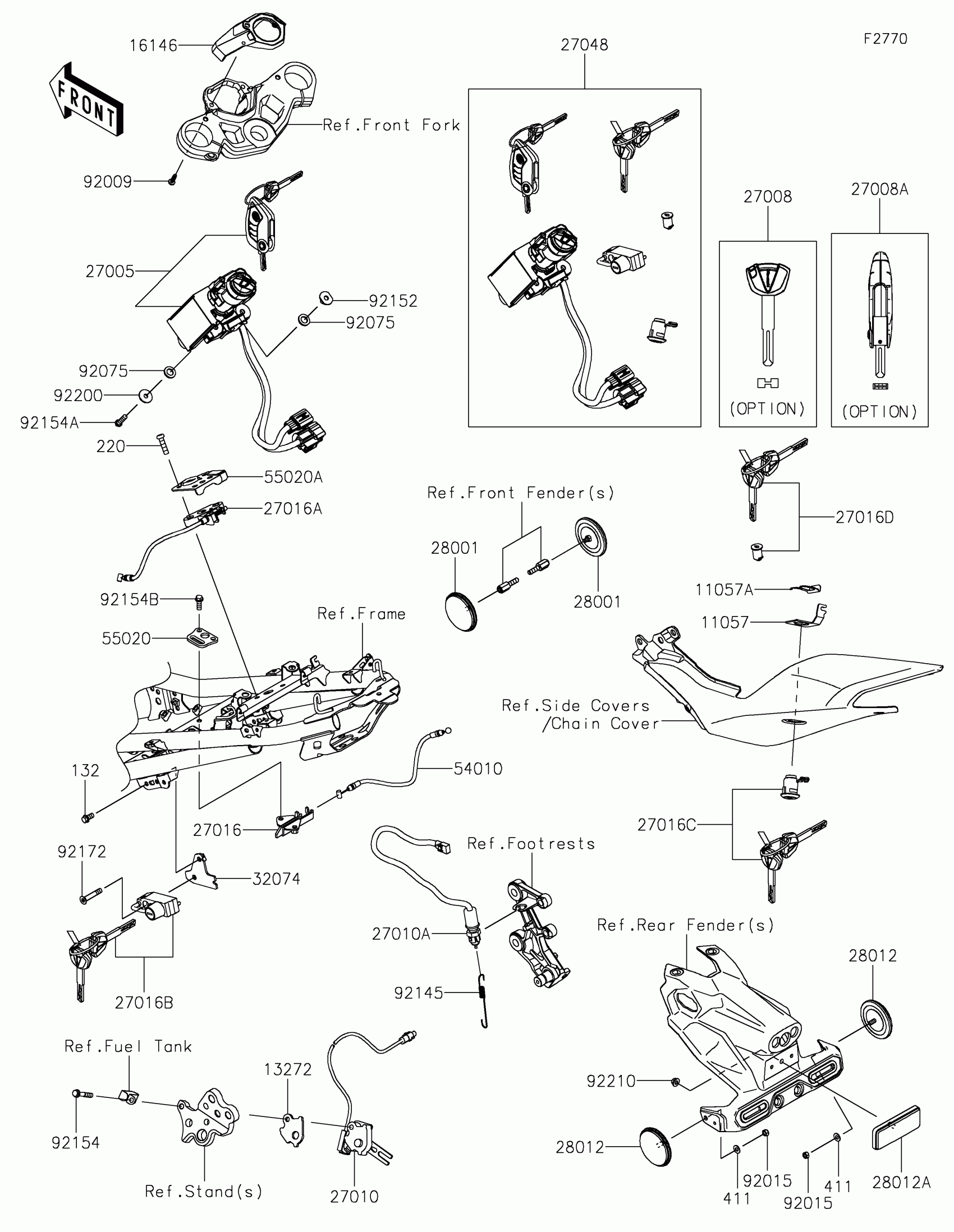

Find the part on the Ignition Switch/locks/reflectors diagram for your 2026 Kawasaki Ninja 500 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Ninja 500 Se ABS Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SEAT LOCK

11057-7033

1
Out of stock

11057A

BRACKET,SEAT LOCK,UPP

11057-7740

1
Out of stock

13272

PLATE

13272-1330

1
Out of stock

16146

COVER-ASSY,SWITCH KNOB

16146-0849

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0740

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0686

1
Out of stock

27008A

FOB KEY,BLANK

27008-0704

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0845

1
Out of stock

27010A

SWITCH,STOP

27010-0863

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

1
Out of stock

27016A

LOCK-ASSY,SEAT STRIKER

27016-0025

1
Out of stock

27016B

LOCK-ASSY,HELMET

27016-5423

1
Out of stock

27016C

LOCK-ASSY,SEAT

27016-5424

1
Out of stock

27016D

LOCK-ASSY,TANK CAP

27016-5425

1
Out of stock

27048

SWITCH-ASSY

27048-5321

1
Out of stock

28001

REFLECTOR-ASSY-REFLEX,FR

28001-0033

1
Out of stock

28012

REFLECTOR-REFLEX,RR,SIDE

28012-0063

1
Out of stock

28012A

REFLECTOR-REFLEX,RR,FLAP

28012-0064

1
Out of stock

32074

BRACKET-LOCK,HELMET

32074-0039

1
Out of stock

54010

CABLE,SEAT LOCK

54010-0661

1
Out of stock

55020

GUARD,SEAT STRIKER

55020-2246

1
Out of stock

55020A

GUARD,SEAT STRIKER

55020-2477

1
Out of stock

92009

SCREW,TAPPING,5X16

92009-1264

1
Out of stock

92015

NUT,LOCK,5MM

92015-1221

1
Out of stock

92075

DAMPER

92075-1564

1
Out of stock

92145

SPRING,BRAKE LAMP SWITCH

92145-0683

1
Out of stock

92152

COLLAR,6X9X10.6

92152-1971

1
Out of stock

92154

BOLT,FLANGED,6X35

92154-1009

1
Out of stock

92154A

BOLT,TORX,6X22

92154-1858

1
Out of stock

92154B

BOLT,FLANGED-SMALL,6X16,TB2468

92154-3869

1
Out of stock

92172

SCREW,HEXLOBE,6X35

92172-0835

1
Out of stock

92200

WASHER,6X20X1.6

92200-0780

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132BA0612

1
Out of stock

220

SCREW-PAN-CROS,6X25

220AC0625

1
Out of stock

411

WASHER-PLAIN,5MM

411AB0500

1
Out of stock
