2026 Kawasaki Ninja 500 Se ABS Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2026 Kawasaki Ninja 500 Se ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

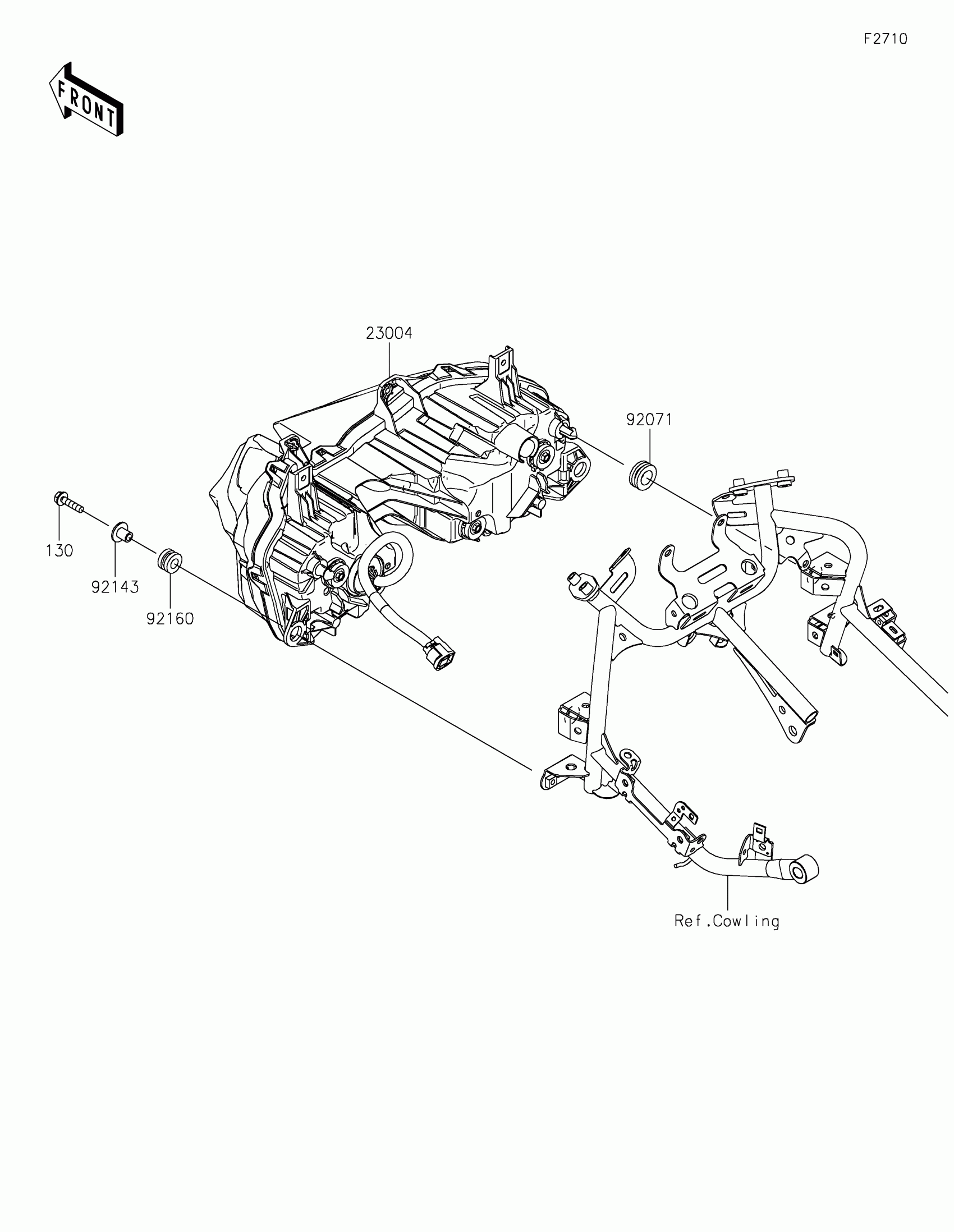

2026 Kawasaki Ninja 500 Se ABS Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23004

LAMP-HEAD,LED

23004-0461

1

$1,149.50

In stock

92071

GROMMET

92071-1131

1

$6.18

In stock

92143

COLLAR

92143-1353

1

$6.81

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock
