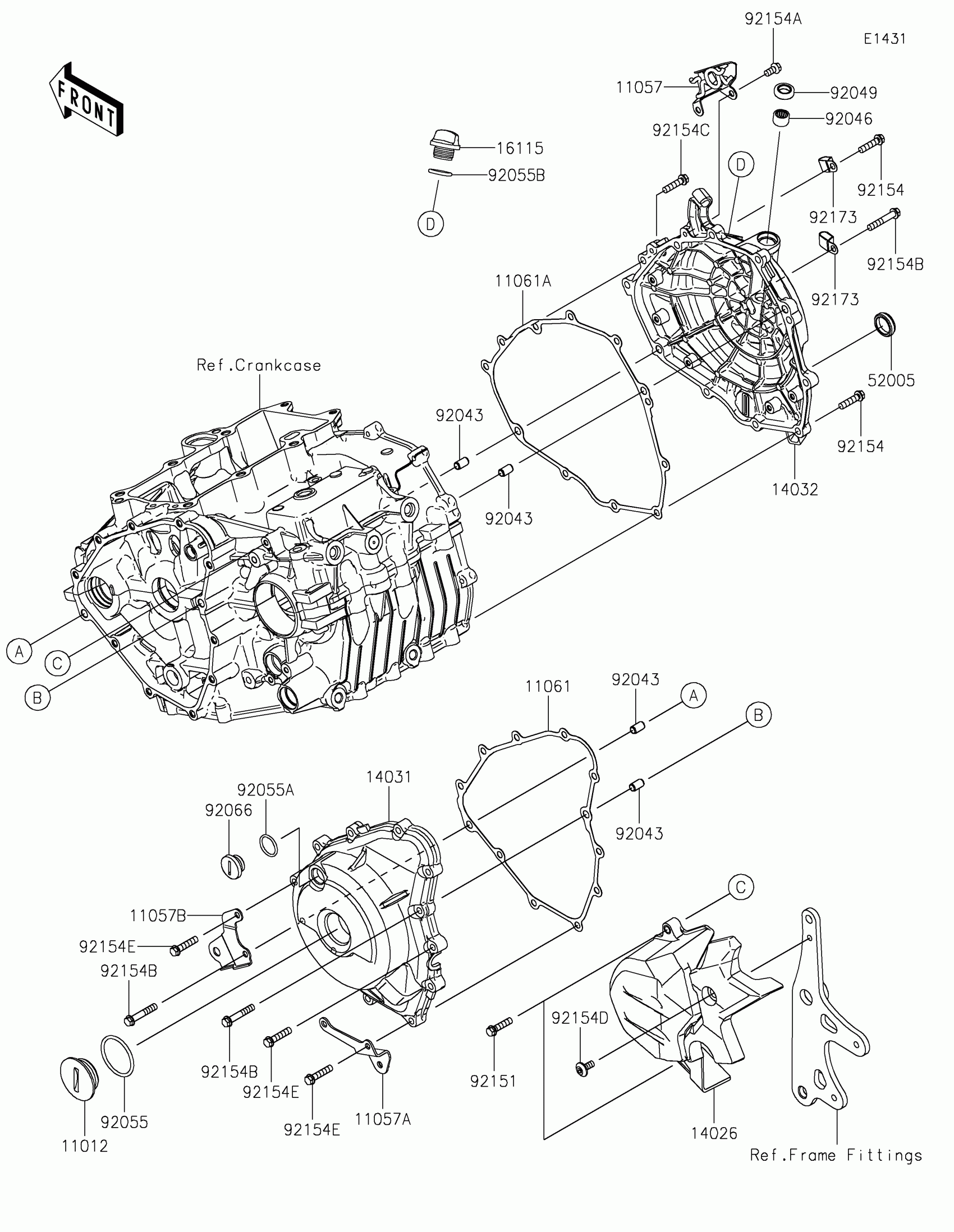

Kawasaki Ninja 500 SE ABS Engine Cover(s) Diagram

Description

Price

11012

CAP

11012-1362

$8.79

11057

BRACKET

11057-1231

$18.06

11057A

BRACKET

11057-1256

$3.21

11057B

BRACKET

11057-1416

$3.57

11061

GASKET,GENERATOR COVER

11061-1252

$40.76

11061A

GASKET,CLUTCH COVER

11061-1253

$40.76

14026

COVER-CHAIN

14026-0141

$70.48

14031

COVER-GENERATOR

14031-0618

$121.53

14032

COVER-CLUTCH

14032-0656

$183.93

16115

CAP-OIL FILLER

16115-1053

$12.20

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL

92049-1560

$9.28

92055

RING-O,39.4X3.1

92055-0734

$1.97

92055A

RING-O,20X2

92055-1146

$8.58

92055B

RING-O

92055-1777

$1.08

92066

PLUG

92066-0748

$15.64

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92154

BOLT,FLANGED,6X25

92154-0819

$2.32

92154A

BOLT,FLANGED,6X12

92154-1777

$0.95

92154B

BOLT,FLANGED,6X35

92154-1779

$1.71

92154C

BOLT,FLANGED,6X25

92154-2734

$2.17

92154D

BOLT,SOCKET,6X14

92154-2735

$1.69

92154E

BOLT,FLANGED,6X28

92154-2788

$1.42

92173

CLAMP

92173-1828

$2.95
