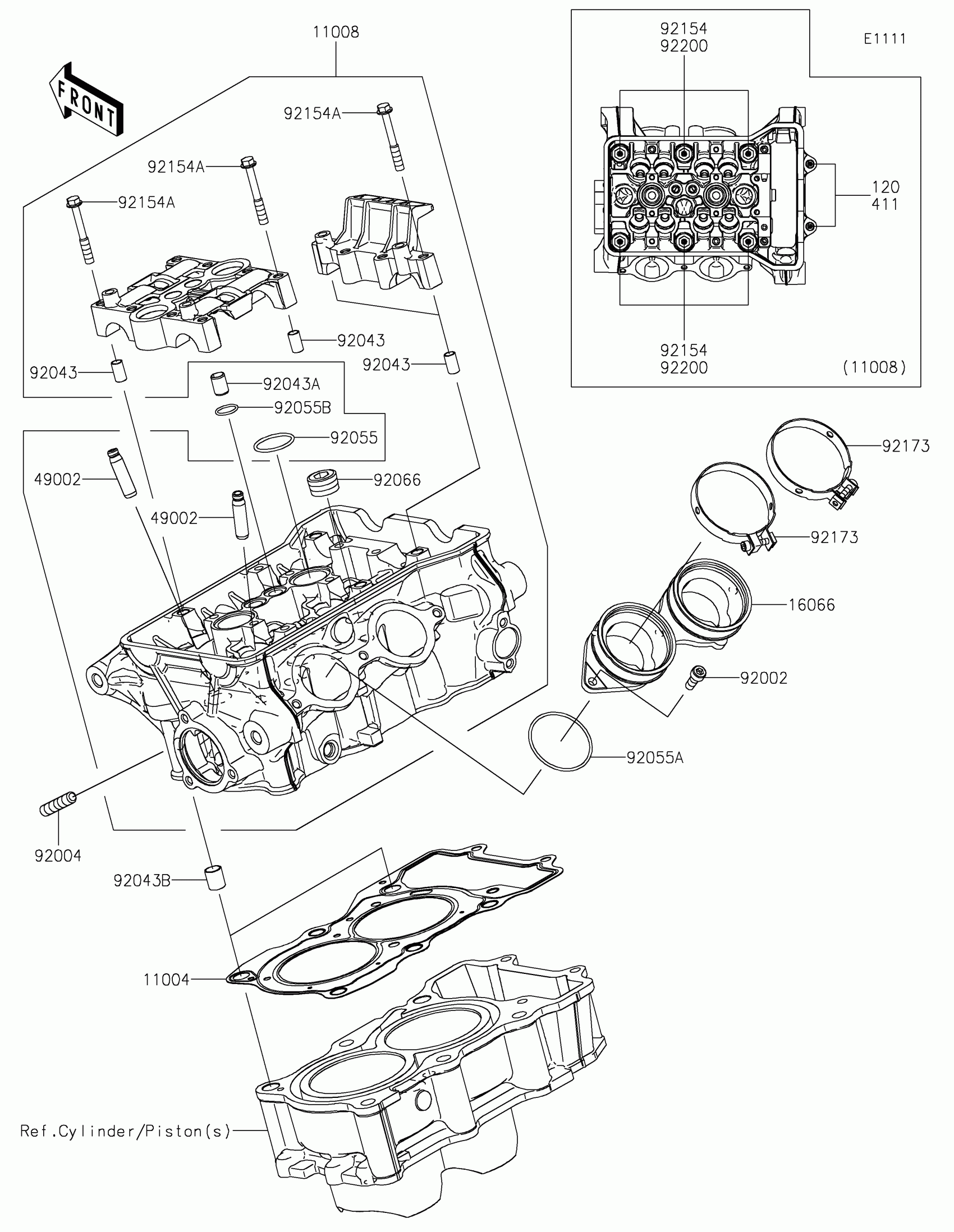

Kawasaki Ninja 500 SE ABS Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0805

$67.62

11008

HEAD-COMP-CYLINDER

11008-1534

$1,481.60

16066

HOLDER-THROTTLE BODY

16066-0007

$72.06

49002

GUIDE-VALVE

49002-0009

$34.18

92002

BOLT,6X16

92002-1143

$3.92

92004

STUD,8X25

92004-0731

$4.14

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,8.2X10X14

92043-1264

$0.64

92043B

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,25.5X2

92055-0074

$3.90

92055A

RING-O,44.5X1.9

92055-0890

$15.26

92055B

RING-O,13.5X1.5

92055-0944

$3.99

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92154

BOLT,FLANGED,9X138

92154-2732

$14.62

92154A

BOLT,FLANGED,6X45

92154-3737

$1.42

92173

CLAMP,58MM

92173-0927

$14.34

92200

WASHER,10.5X19X2.3

92200-0363

$3.90

120

BOLT-SOCKET,6X90

120CC0690

$3.44

411

WASHER-PLAIN,6MM

411AA0600

$2.92
