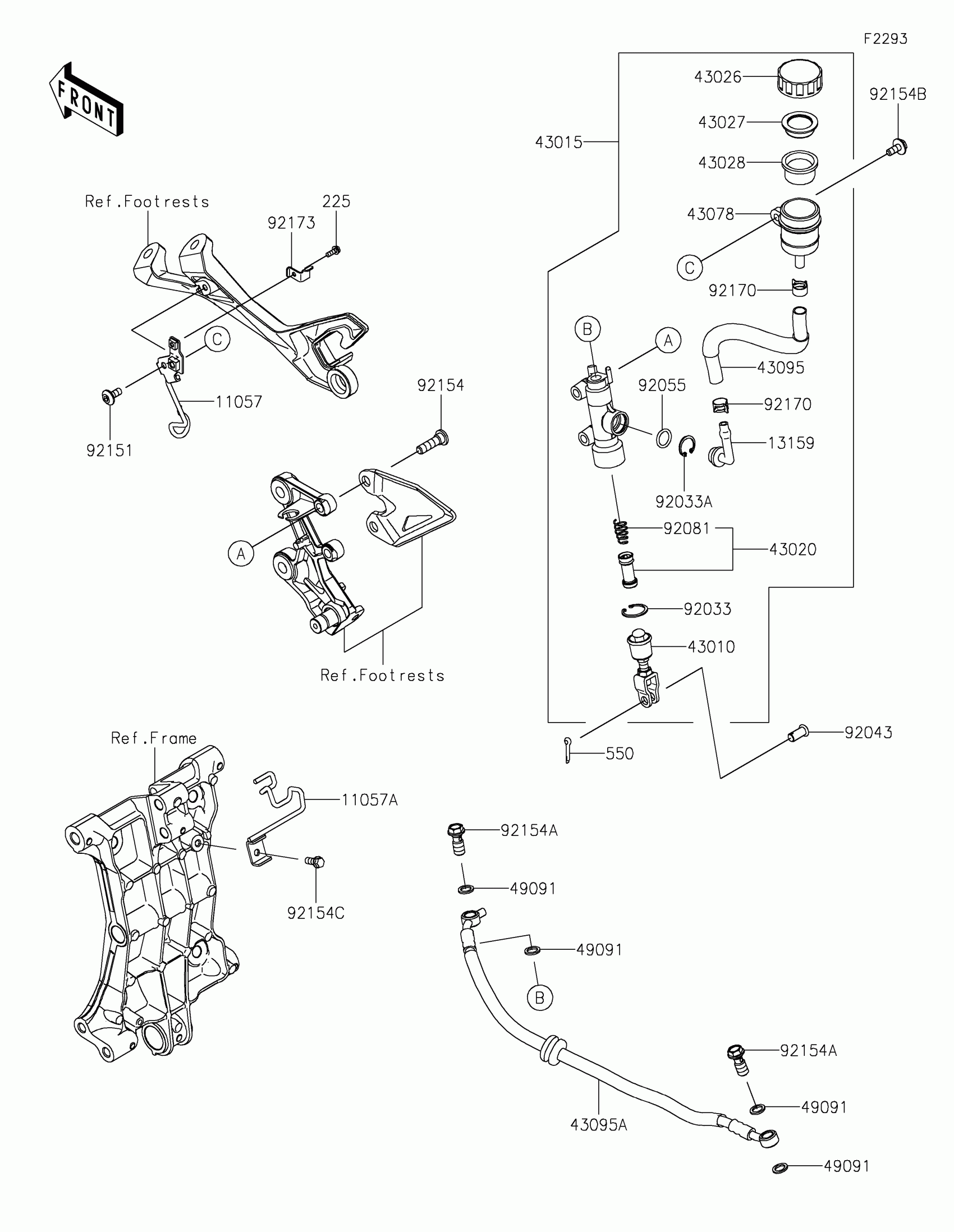

Kawasaki Ninja 500 Rear Master Cylinder Diagram
#
Description
Price
11057
BRACKET,RR RESERVOIR
11057-1101
$7.65
11057A
BRACKET,PIVOT BRACKET
11057-1105
$6.90
13159
CONNECTOR
13159-1056
$14.10
43010
ROD-ASSY-BRAKE
43010-0022
$71.10
43015
CYLINDER-ASSY-MASTER,RR
43015-0667
$264.68
43020
PISTON-COMP-BRAKE
43020-0023
$65.22
43026
CAP-BRAKE
43026-0009
$37.51
43027
PLATE-DIAPHRAGM
43027-1053
$5.67
43028
DIAPHRAGM
43028-1065
$19.09
43078
RESERVOIR
43078-0040
$28.98
43095
HOSE-BRAKE,RR RESERVOIR
43095-1495
$14.12
43095A
HOSE-BRAKE,RR,489MM
43095-1953
$66.14
49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
$2.15
92033
RING-SNAP,20.9X24.6X1.2
92033-0079
$7.78
92033A
RING-SNAP,20.5MM
92033-1186
$4.96
92043
PIN
92043-0904
$3.90
92055
RING-O,14.8X2.4
92055-0741
$3.71
92081
SPRING,MASTER CYLINDER
92081-1737
$12.23
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92154
BOLT,SOCKET,8X30
92154-0843
$4.72
92154A
BOLT,BANJO,10X23
92154-1712
$3.94
92154B
BOLT,UPSET-WP,6X16
92154-2244
$1.17
92154C
BOLT,6X14
92154-4129
$0.90
92170
CLAMP,HOSE
92170-1091
$5.00
92173
CLAMP,RESERVOIR TANK CAP
92173-0028
$5.54
225
SCREW-PAN-WSP-CROS,4X12
225AB0412
$2.94
550
PIN-COTTER,2.0X15
550AA2015
$1.12
