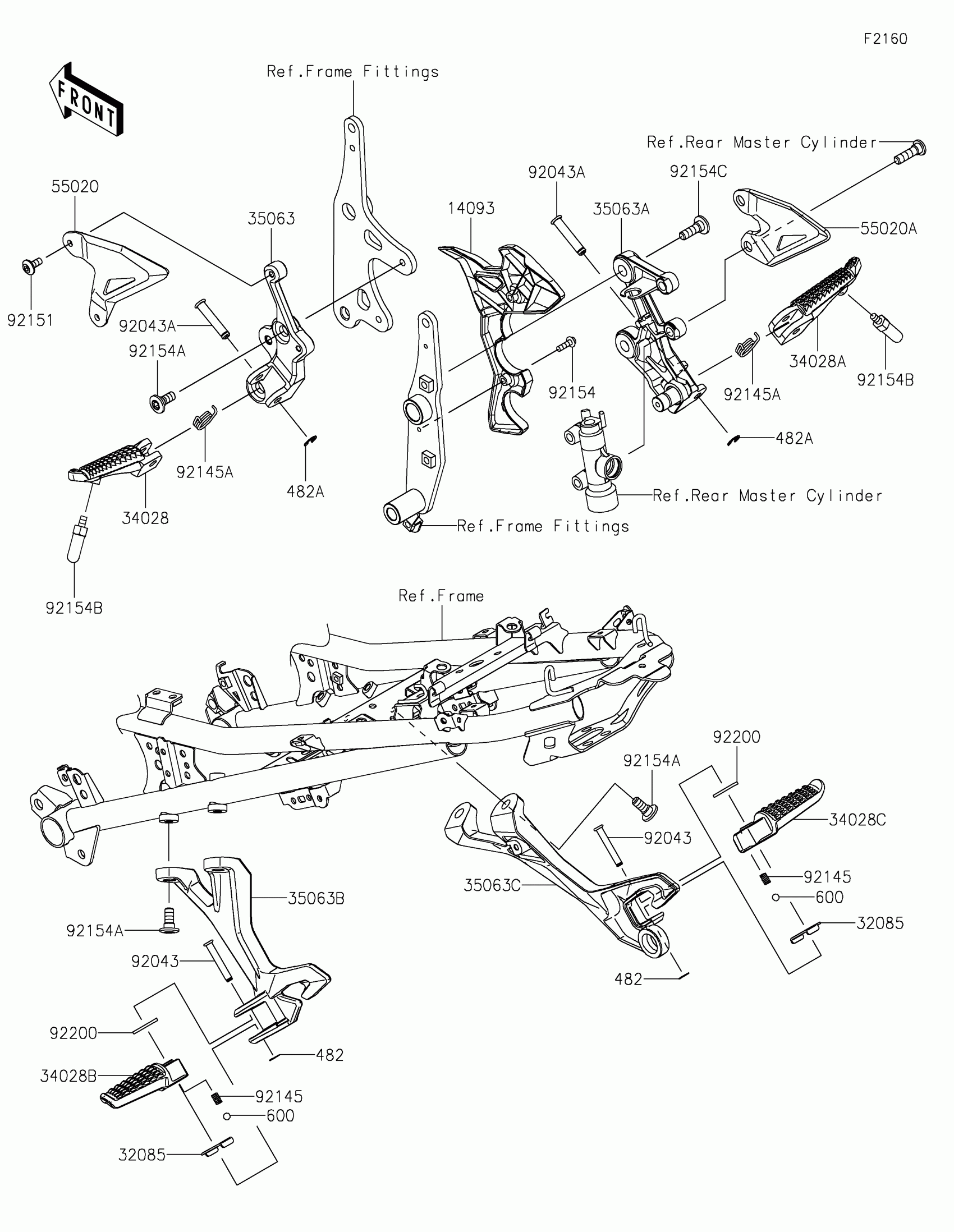

Kawasaki Ninja 500 Footrests Diagram
#
Description
Price
14093
COVER,PIVOT,RH
14093-0641
$29.30
32085
STOPPER,REAR STEP
32085-0047
$5.57
34028
STEP,FR,LH
34028-0356
$61.29
34028A
STEP,FR,RH
34028-0357
$61.29
34028B
STEP,RR,LH
34028-0366
$70.40
34028C
STEP,RR,RH
34028-0367
$70.40
35063
STAY,FR STEP,LH
35063-1407
$86.39
35063A
STAY,FR STEP,RH
35063-1408
$108.46
35063B
STAY,RR STEP,LH
35063-1409
$116.26
35063C
STAY,RR STEP,RH
35063-1410
$130.51
55020
GUARD,HEEL,LH
55020-2195
$44.13
55020A
GUARD,HEEL,RH
55020-2196
$44.13
92043
PIN,6X40
92043-0200
$3.02
92043A
PIN,8X40.5
92043-0877
$4.96
92145
SPRING
92145-1319
$1.81
92145A
SPRING
92145-2240
$1.34
92151
BOLT,SOCKET,6X14
92151-1654
$1.83
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,SOCKET,8X20
92154-0936
$4.10
92154B
BOLT,BANK SENSOR
92154-2799
$7.93
92154C
BOLT,SOCKET,8X26
92154-3747
$3.21
92200
WASHER,16X26X2.3
92200-0043
$7.65
482
CIRCLIP-TYPE-E
482EA5000
$1.34
482A
CIRCLIP-TYPE-E
482EA7000
$3.92
600
BALL-STEEL,1/4
600A0800
$0.62
