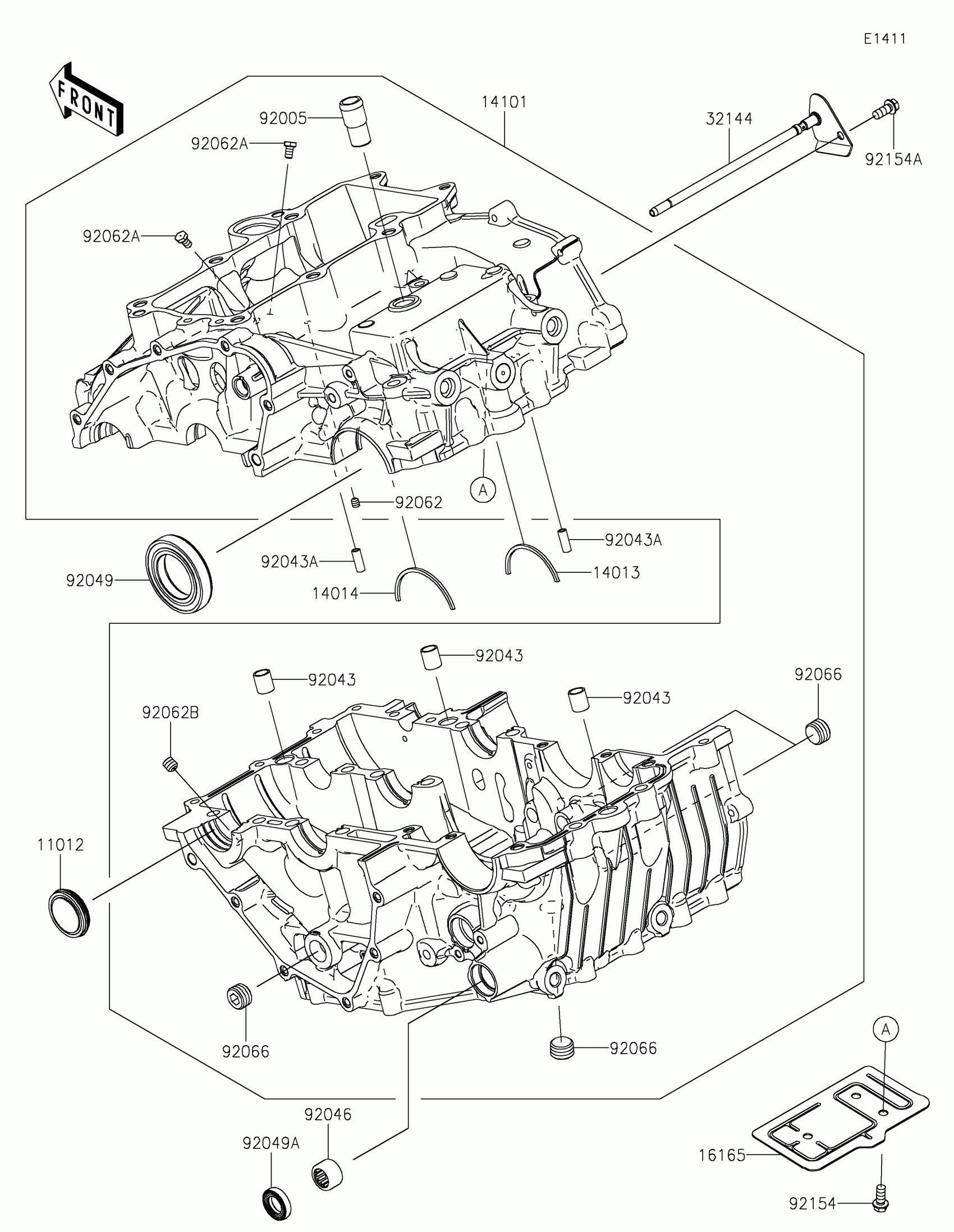

Kawasaki Ninja 500 Crankcase Diagram

Description

Price

11012

CAP,LH

11012-1770

$13.10

14013

RING-POSITION

14013-004

$10.19

14014

PLATE-POSITION

14014-0576

$1.42

14101

SET-CRANKCASE

14101-0023

$999.80

16165

SEPARATOR

16165-0016

$5.31

32144

PIPE-ASSY

32144-0008

$44.88

92005

FITTING,BREATHER

92005-0713

$12.20

92043

PIN,12X14

92043-0963

$6.57

92043A

PIN,3.5X6X16

92043-1309

$5.52

92046

BEARING-NEEDLE,HK1412FM

92046-0043

$17.22

92049

SEAL-OIL

92049-0799

$15.20

92049A

SEAL-OIL,TC14245

92049-1520

$13.87

92062

NOZZLE

92062-0004

$4.49

92062A

NOZZLE

92062-0047

$15.14

92062B

NOZZLE

92062-0048

$5.61

92066

PLUG

92066-0831

$5.62

92154

BOLT,FLANGED,6X14

92154-1426

$2.00

92154A

BOLT,FLANGED,6X14

92154-2907

$0.64
