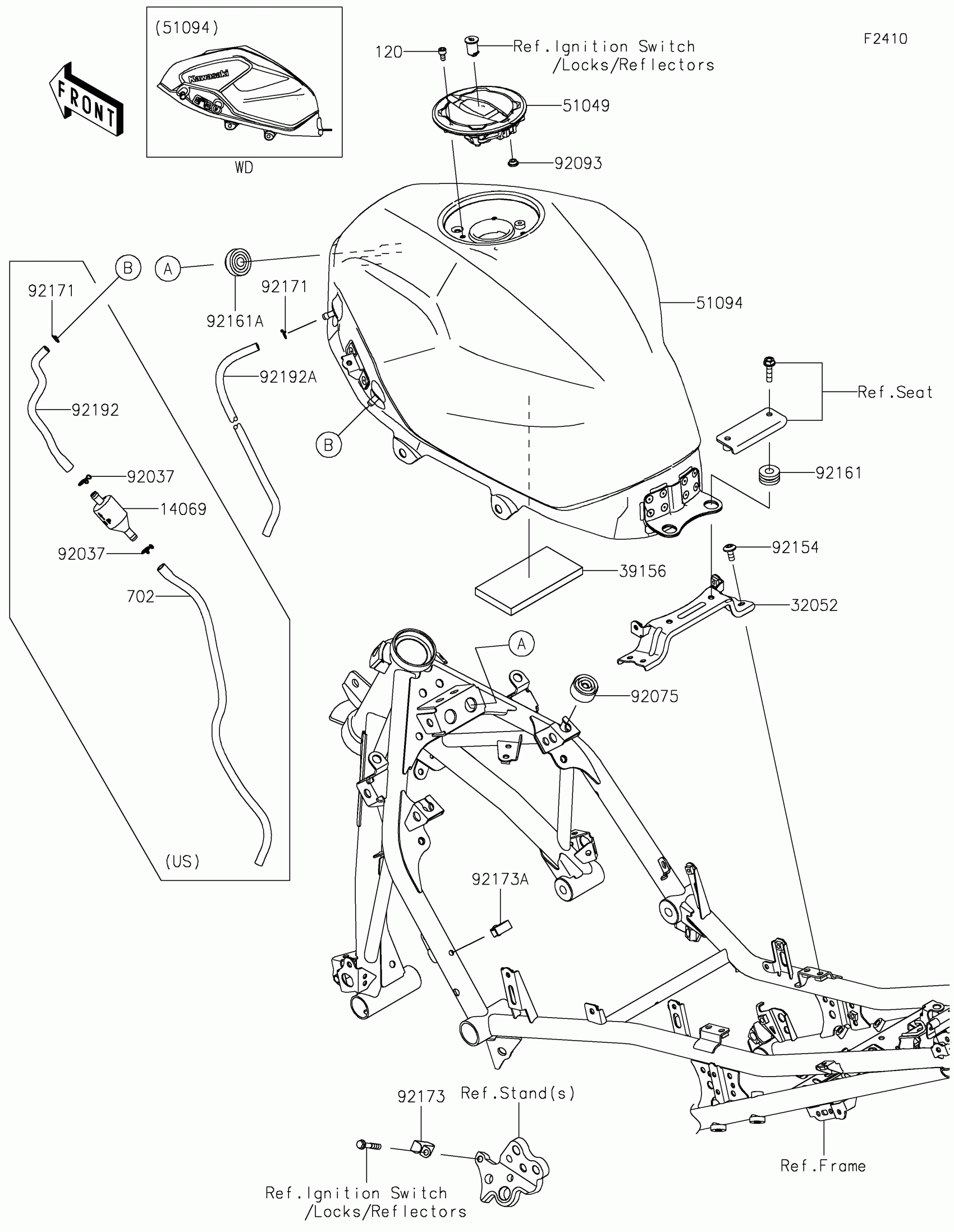

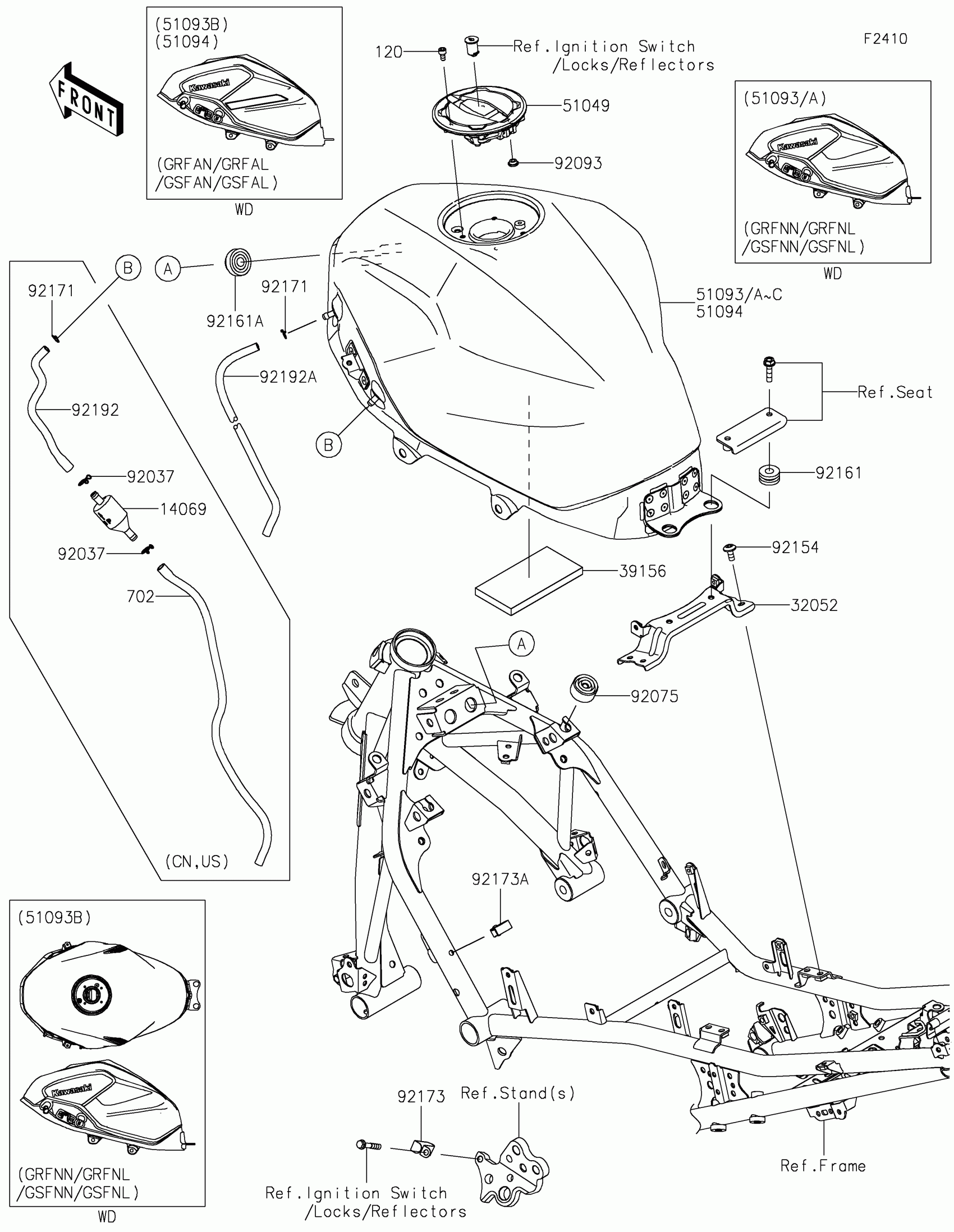

Find the part on the Fuel Tank diagram for your 2025 Kawasaki Ninja® 500 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja® 500 ABS Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14069

BREATHER,FUEL TANK

14069-1004

1

$8.09

In stock

32052

BRACKET-TANK

32052-0809

1
Out of stock

39156

PAD,60X120X10

39156-2388

1
Out of stock

51049

CAP-TANK,FUEL

51049-0756

1
Out of stock

51093

TANK-COMP-FUEL,M.C.GRAY

51093-5332-51A

1
Out of stock

51093B

TANK-COMP-FUEL,M.M.W.SILVER

51093-5334-63V

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92075

DAMPER

92075-015

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-0932

1
Out of stock

92161

DAMPER,10X24X12

92161-0927

1
Out of stock

92161A

DAMPER,10X32X17

92161-1980

1
Out of stock

92171

CLAMP,8X0.7

92171-1973

1
Out of stock

92173

CLAMP

92173-0833

1
Out of stock

92173A

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92192

TUBE,6X9X200

92192-1824

1
Out of stock

92192A

TUBE,DRAIN,6X9X810

92192-1860

1
Out of stock

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

702

TUBE-RUBBER,6X9X450

702A06450

1
Out of stock

92171

CLAMP,8X0.7

92171-1973

1
Out of stock
