2025 Kawasaki Ninja® 500 ABS Fuel Evaporative System Diagram

← All diagrams

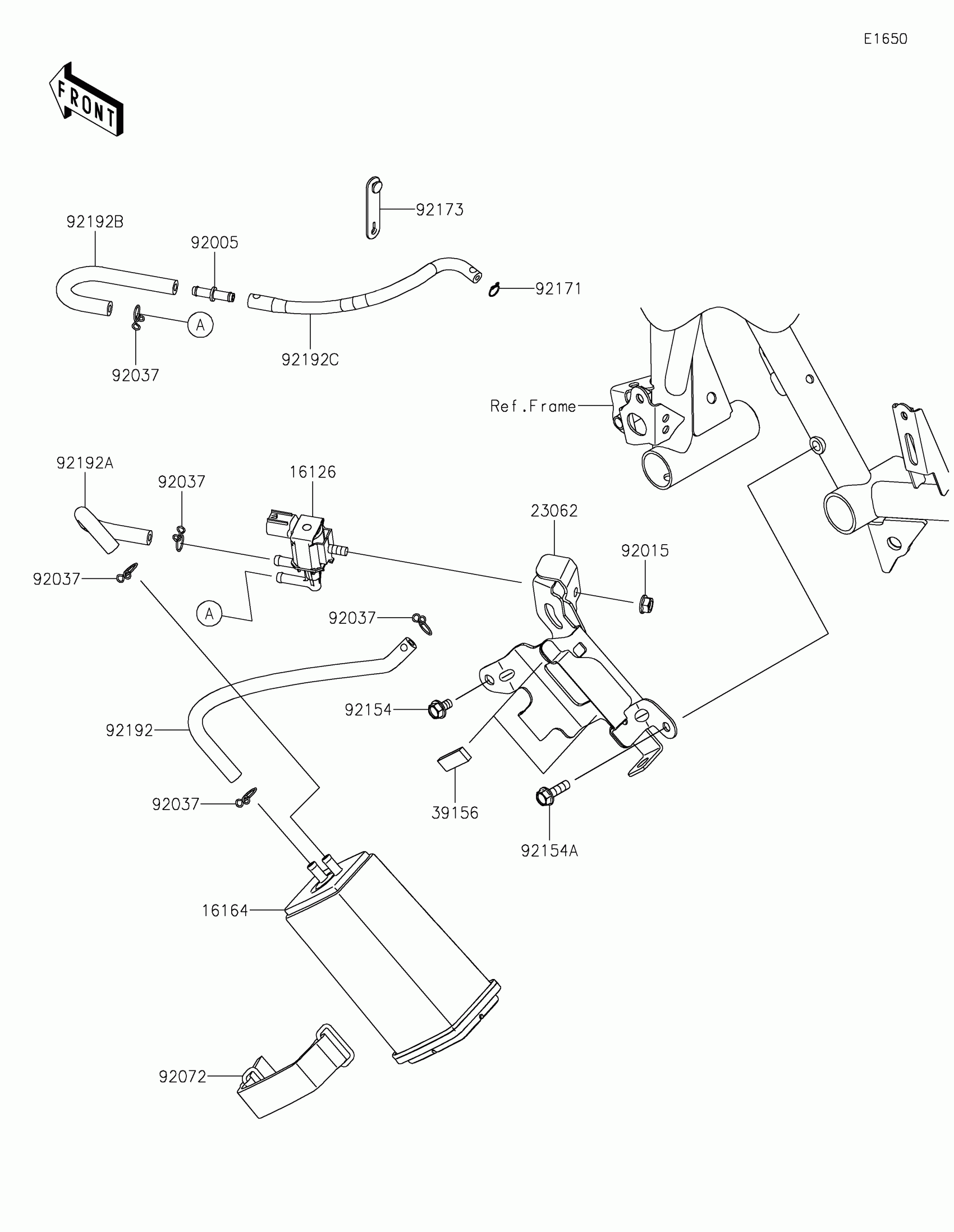

Find the part on the Fuel Evaporative System diagram for your 2025 Kawasaki Ninja® 500 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Kawasaki Ninja® 500 ABS Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

16126

VALVE,SOLENOID

16126-0705

1
Out of stock

16164

CANISTER

16164-0012

1
Out of stock

23062

BRACKET-COMP,CANISTER

23062-0949

1
Out of stock

39156

PAD,10X30X4

39156-0927

1

$0.85

In stock

92005

FITTING

92005-0721

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92072

BAND,CANISTER

92072-0815

1
Out of stock

92154

BOLT,FLANGED,6X10

92154-2939

1
Out of stock

92154A

BOLT-FLANGED,6X20

92154-3812

1
Out of stock

92171

CLAMP

92171-0573

1

$1.20

In stock

92173

CLAMP

92173-2198

1
Out of stock

92192

TUBE,FUEL TANK-CANISTER

92192-1806

1
Out of stock

92192A

TUBE,CANISTER-VALVE SOLENOID

92192-1807

1
Out of stock

92192B

TUBE,SOLENOID VALVE-FITTING

92192-1808

1
Out of stock

92192C

TUBE,FITTING-THROTTLE BODY

92192-1920

1
Out of stock
