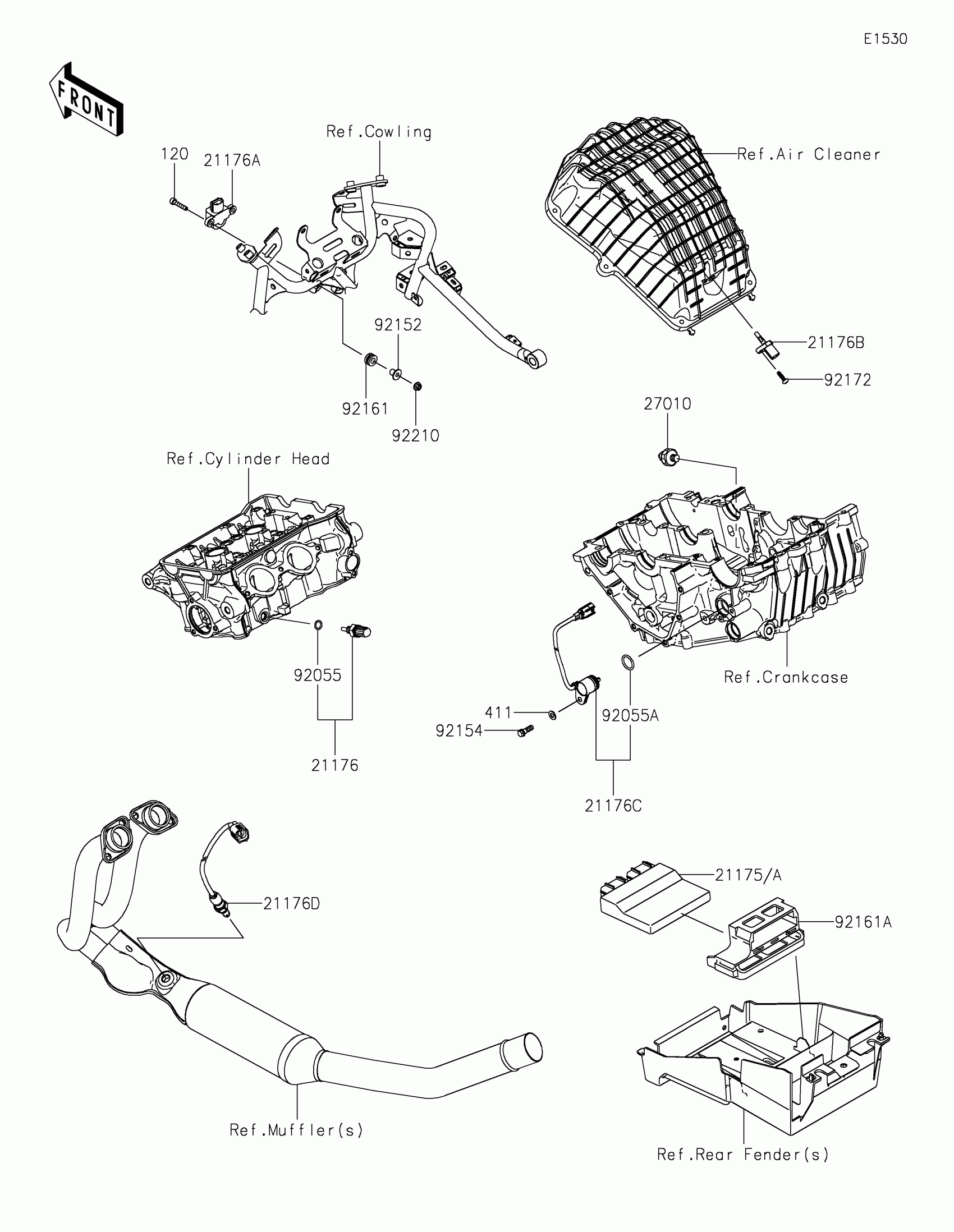

Kawasaki NINJA® 500 ABS Fuel Injection Diagram

Description

Price

21175

CONTROL UNIT-ELECTRONIC

21175-1982

$962.85

21175A

CONTROL UNIT-ELECTRONIC

21175-1983

$962.85

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176C

SENSOR,GEAR POSITION

21176-0852

$151.78

21176D

SENSOR,OXYGEN

21176-1202

$237.62

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

92055

RING-O,9.5X1.9

92055-0016

$8.89

92055A

RING-O

92055-0917

$3.71

92152

COLLAR,5.6X8X11.2

92152-1562

$2.67

92154

BOLT

92154-3764

$1.69

92161

DAMPER,8X16X8.6

92161-0685

$6.61

92161A

DAMPER

92161-2437

$15.39

92172

SCREW,TAPPING,5X16

92172-0790

$0.85

92210

NUT,FLANGED,5MM

92210-0007

$2.70

120

BOLT-SOCKET,5X25

120CA0525

$4.71

411

WASHER-PLAIN,6MM

411AA0600

$2.92
