2023 Kawasaki Ninja® 400 Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2023 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

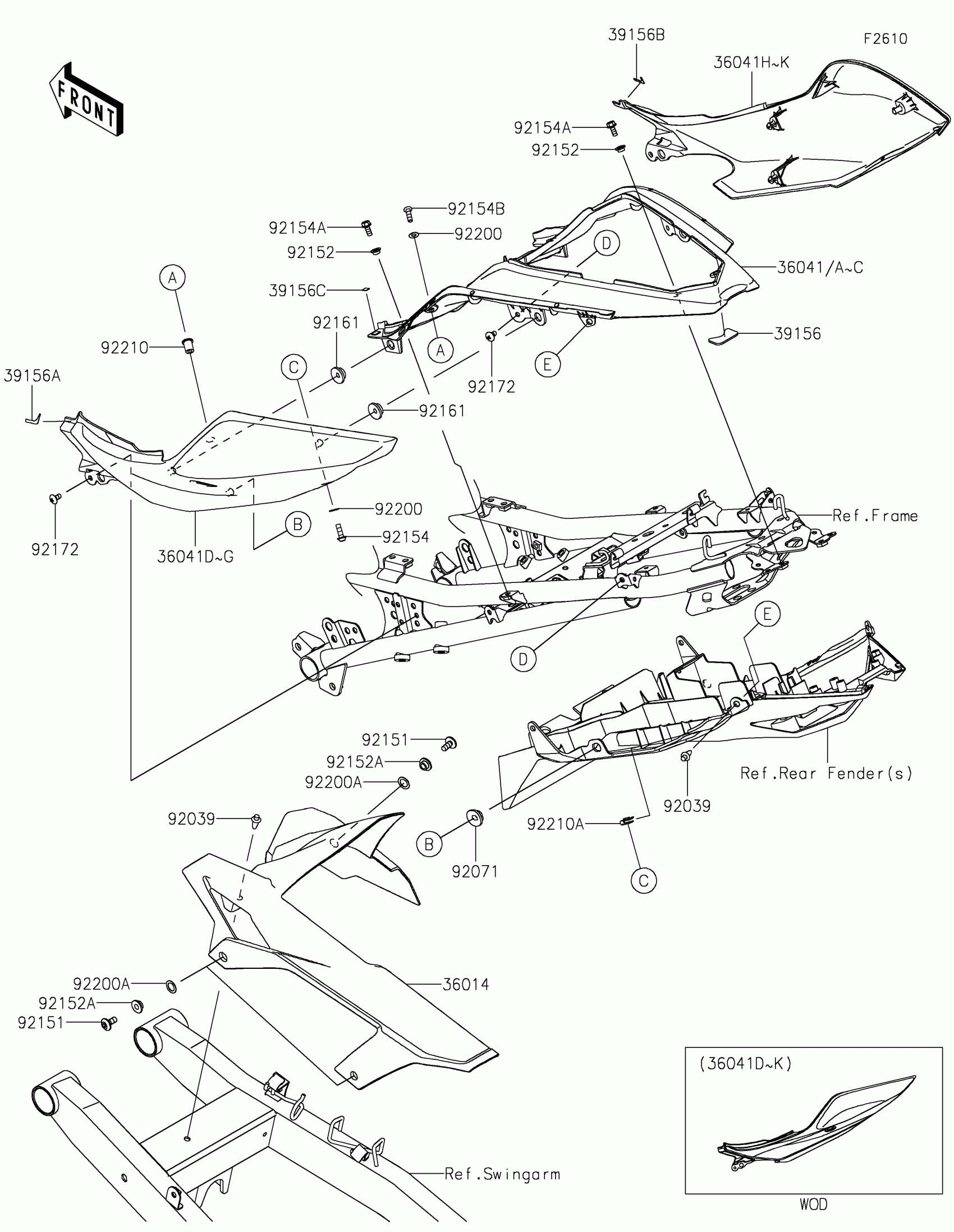

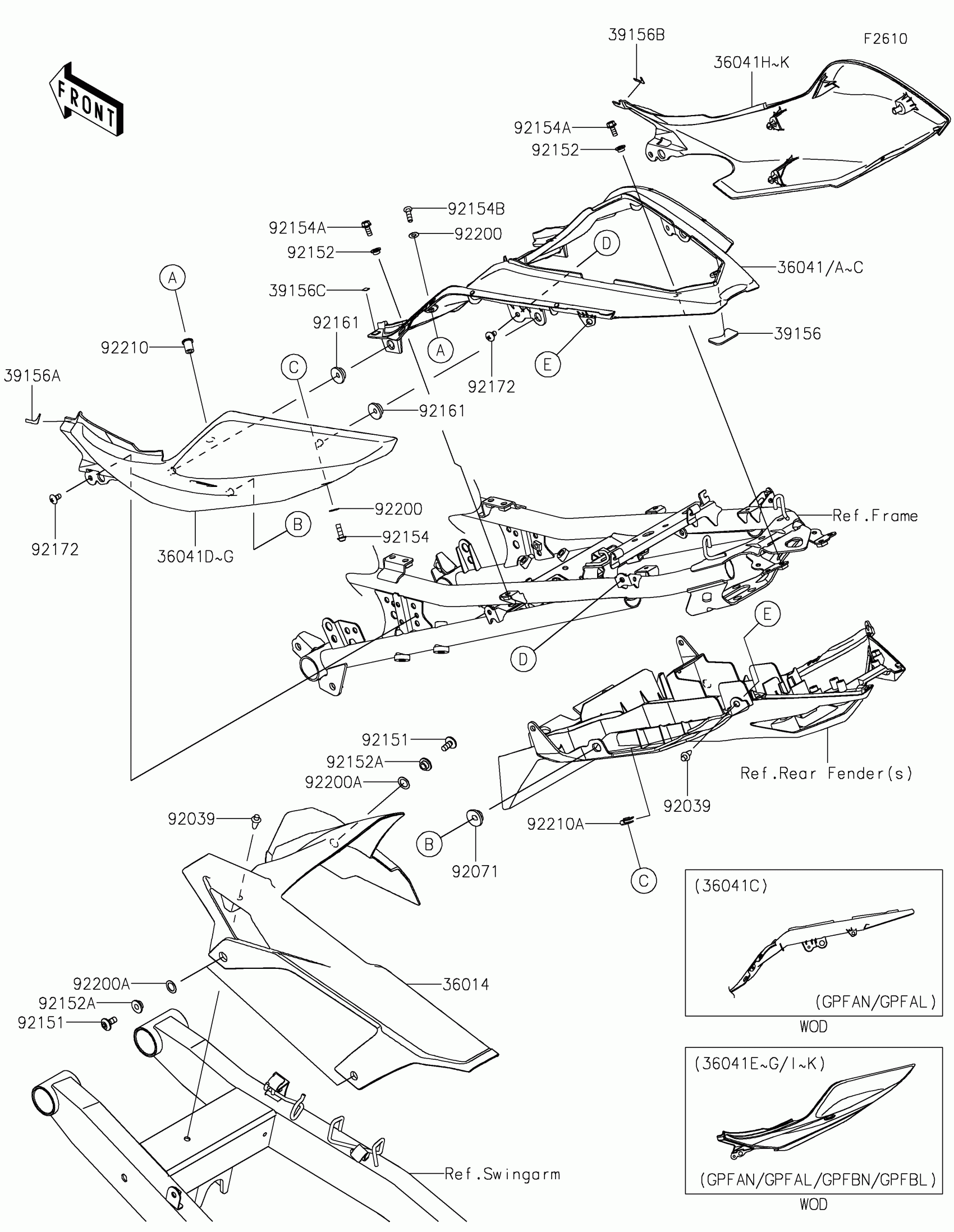

2023 Kawasaki Ninja® 400 Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36014

CASE-CHAIN

36014-0571

1
Out of stock

36041

COVER-TAIL,CNT,M.C.GRAY

36041-0036-51A

1
Out of stock

36041D

COVER-TAIL,LH,M.C.GRAY

36041-0037-51A

1
Out of stock

36041H

COVER-TAIL,RH,M.C.GRAY

36041-0038-51A

1
Out of stock

39156

PAD,19.4X34X2

39156-2218

1
Out of stock

39156A

PAD,TAIL COVER,FR,LH

39156-2298

1
Out of stock

39156B

PAD,TAIL COVER,FR,RH

39156-2299

1
Out of stock

39156C

PAD,5X13

39156-2300

1
Out of stock

92039

RIVET

92039-0060

1
Out of stock

92071

GROMMET,20X24X7.5

92071-0766

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92152

COLLAR,6X8X4.5

92152-2395

1
Out of stock

92152A

COLLAR,6.5X10X5.9

92152-2486

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,FLANGED,5X12

92154-2893

1
Out of stock

92154B

BOLT,SOCKET,5X16

92154-3837

1
Out of stock

92161

DAMPER

92161-1531

1

$2.44

In stock

92172

SCREW,5X10

92172-1090

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,10.4X15.9X0.5

92200-2525

1
Out of stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock

92210A

NUT

92210-0571

1
Out of stock
