2023 Kawasaki Ninja® 400 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2023 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

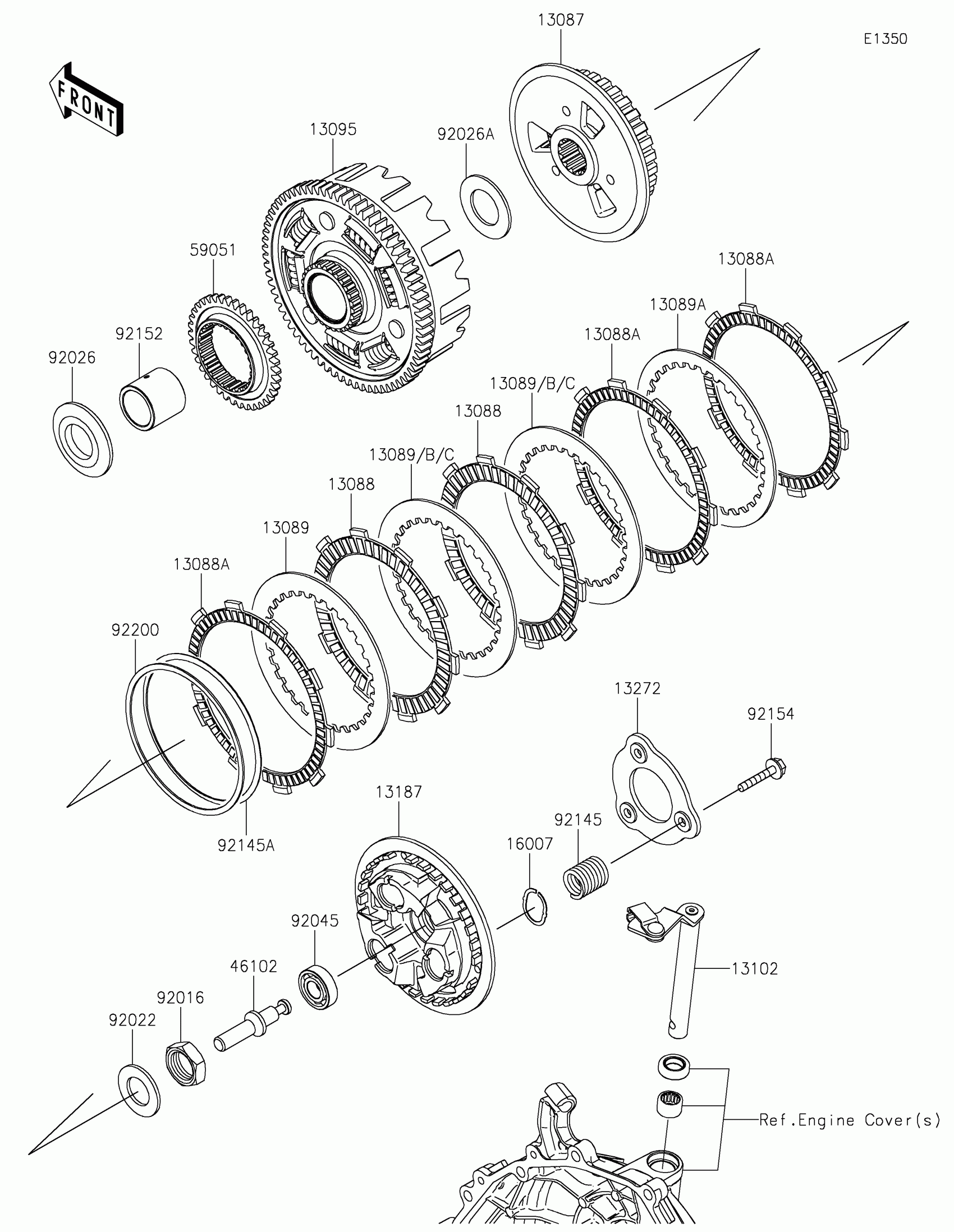

2023 Kawasaki Ninja® 400 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13087

HUB-CLUTCH

13087-0585

1
Out of stock

13088

PLATE-FRICTION

13088-0592

1
Out of stock

13088A

PLATE-FRICTION

13088-0630

1
Out of stock

13089

PLATE-CLUTCH,T=2.0

13089-0041

1
Out of stock

13089A

PLATE-CLUTCH,T=2.0

13089-0042

1
Out of stock

13089B

PLATE-CLUTCH,T=1.6

13089-0043

—
Out of stock

13089C

PLATE-CLUTCH,T=2.3

13089-0044

—
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-0587

1
Out of stock

13102

RELEASE-COMP-CLUTCH

13102-0076

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-0033

1
Out of stock

13272

PLATE

13272-2414

1
Out of stock

16007

SEAT-SPRING

16007-0711

1
Out of stock

46102

ROD

46102-0648

1
Out of stock

59051

GEAR-SPUR,OIL PUMP,38T

59051-0796

1
Out of stock

92016

NUT,20MM

92016-028

1
Out of stock

92022

WASHER,20.3X36X2.3

92022-1116

1
Out of stock

92026

SPACER,25X52X5.5

92026-0115

1
Out of stock

92026A

SPACER,25.5X44.5X2

92026-0734

1
Out of stock

92045

BEARING-BALL

92045-0937

1
Out of stock

92145

SPRING,CLUTCH

92145-1789

1
Out of stock

92145A

SPRING,JUDDER

92145-1829

1
Out of stock

92152

COLLAR,25X32X29.1

92152-2524

1
Out of stock

92154

BOLT,UPSET,6X30

92154-0997

1
Out of stock

92200

WASHER,99.4X107X1.2

92200-1987

1
Out of stock
