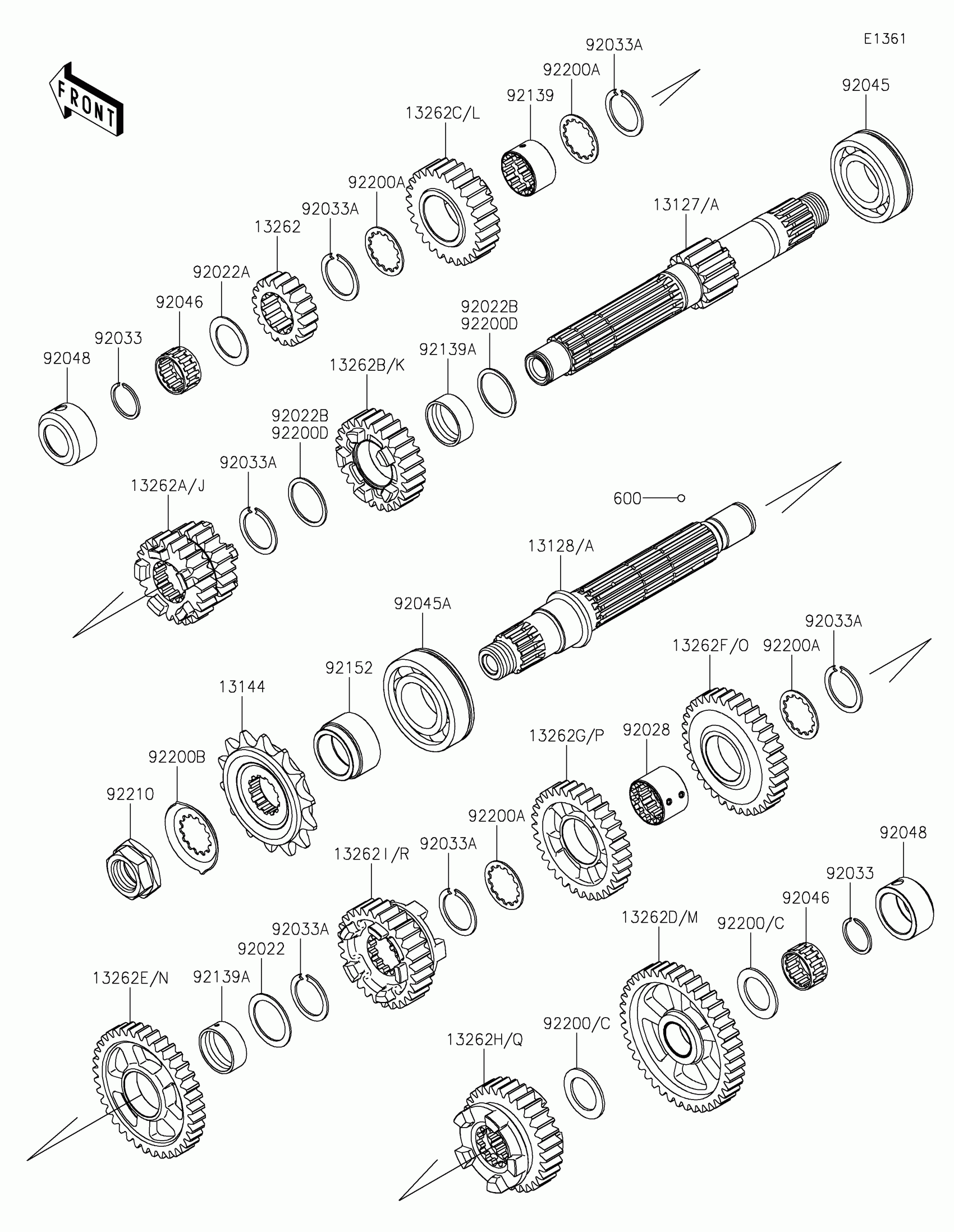

Kawasaki NINJA® 400 KRT EDITION Transmission Diagram

#

Description
Price

13127A

SHAFT-TRANSMISSION INPUT,13T

13127-0716

$230.65

13128A

SHAFT-TRANSMISSION OUTPUT

13128-0724

$186.48

13144

SPROCKET-OUTPUT,14T

13144-0577

$52.93

13262

GEAR,INPUT 2ND,18T

13262-1288

$49.25

13262J

GEAR,INPUT 3RD&4TH,21T,24T

13262-1591

$100.73

13262K

GEAR,INPUT 5TH,26T

13262-1592

$66.92

13262L

GEAR,INPUT 6TH,27T

13262-1593

$69.63

13262M

GEAR,OUTPUT LOW,41T

13262-1594

$82.92

13262N

GEAR,OUTPUT 2ND,37T

13262-1595

$78.42

13262O

GEAR,OUTPUT 3RD,34T

13262-1596

$83.36

13262P

GEAR,OUTPUT 4TH,32T

13262-1597

$81.34

13262Q

GEAR,OUTPUT 5TH,30T

13262-1598

$99.17

13262R

GEAR,OUTPUT 6TH,28T

13262-1599

$99.83

92022

WASHER,25.3X33X1

92022-1109

$5.96

92022A

WASHER,20.5X30X1,STEEL

92022-112

$8.86

92028

BUSHING,OUTPUT 3RD&4TH GEAR

92028-1858

$20.97

92033

RING-SNAP,20MM

92033-015

$4.26

92033A

RING-SNAP,24MM

92033-026

$8.79

92045

BEARING-BALL,6TM-6205NX3

92045-0735

$32.64

92045A

BEARING-BALL,28X58X16

92045-0841

$39.80

92046

BEARING-NEEDLE,20X25X12.8

92046-0607

$21.99

92048

RACE

92048-0025

$31.87

92139

BUSHING,26X28X16.6

92139-0781

$24.93

92139A

BUSHING,25X28X10.4

92139-0793

$15.36

92152

COLLAR

92152-2369

$24.07

92200A

WASHER

92200-1389

$2.34

92200B

WASHER

92200-1932

$4.60

92200C

WASHER,20.5X31X1.5

92200-2523

$2.32

92200D

WASHER,25.3X30X1

92200-2524

$1.60

92210

NUT,20MM

92210-0850

$14.39

600

BALL-STEEL,5/32

600A0500

$0.81
