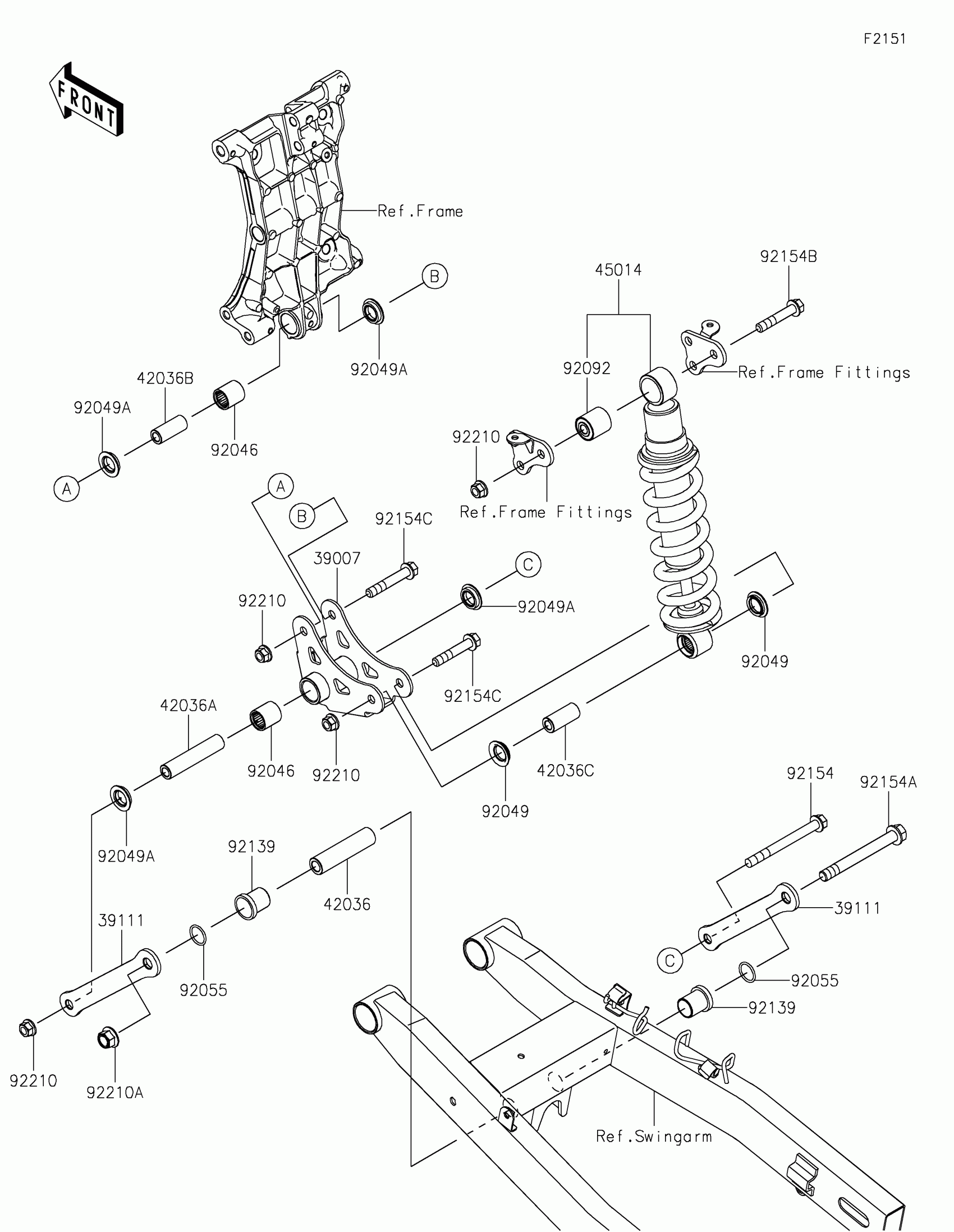

Kawasaki NINJA® 400 KRT EDITION Suspension/Shock Absorber Diagram

Description

Price

39007

ARM-SUSP

39007-0438

$110.84

39111

ROD-TIE

39111-0363

$42.21

42036

SLEEVE,12.1X20X83

42036-0807

$32.15

42036A

SLEEVE,10.1X17X83

42036-0808

$30.68

42036B

SLEEVE,10.1X17X40.5

42036-0809

$19.25

42036C

SLEEVE,10.1X18X40.5

42036-0810

$20.09

45014

SHOCKABSORBER,BLACK+BLK

45014-0605-37S

$466.98

92046

BEARING-NEEDLE,SFYZM172425

92046-1273

$17.69

92049

SEAL-OIL

92049-0133

$10.05

92049A

SEAL-OIL,MHA17245.7F

92049-1223

$8.86

92055

RING-O,19.8X2.2

92055-1215

$4.31

92092

BUSHING-RUBBER

92092-1058

$29.88

92139

BUSHING,20X23X29

92139-0890

$7.36

92154

BOLT,FLANGED,10X105

92154-2810

$10.26

92154A

BOLT,FLANGED,12X110

92154-2811

$15.14

92154B

BOLT,FLANGED,10X54

92154-2813

$6.13

92154C

BOLT,FLANGED,10X60

92154-3771

$6.38

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210A

NUT,LOCK,FLANGED,12MM

92210-1150

$6.22
