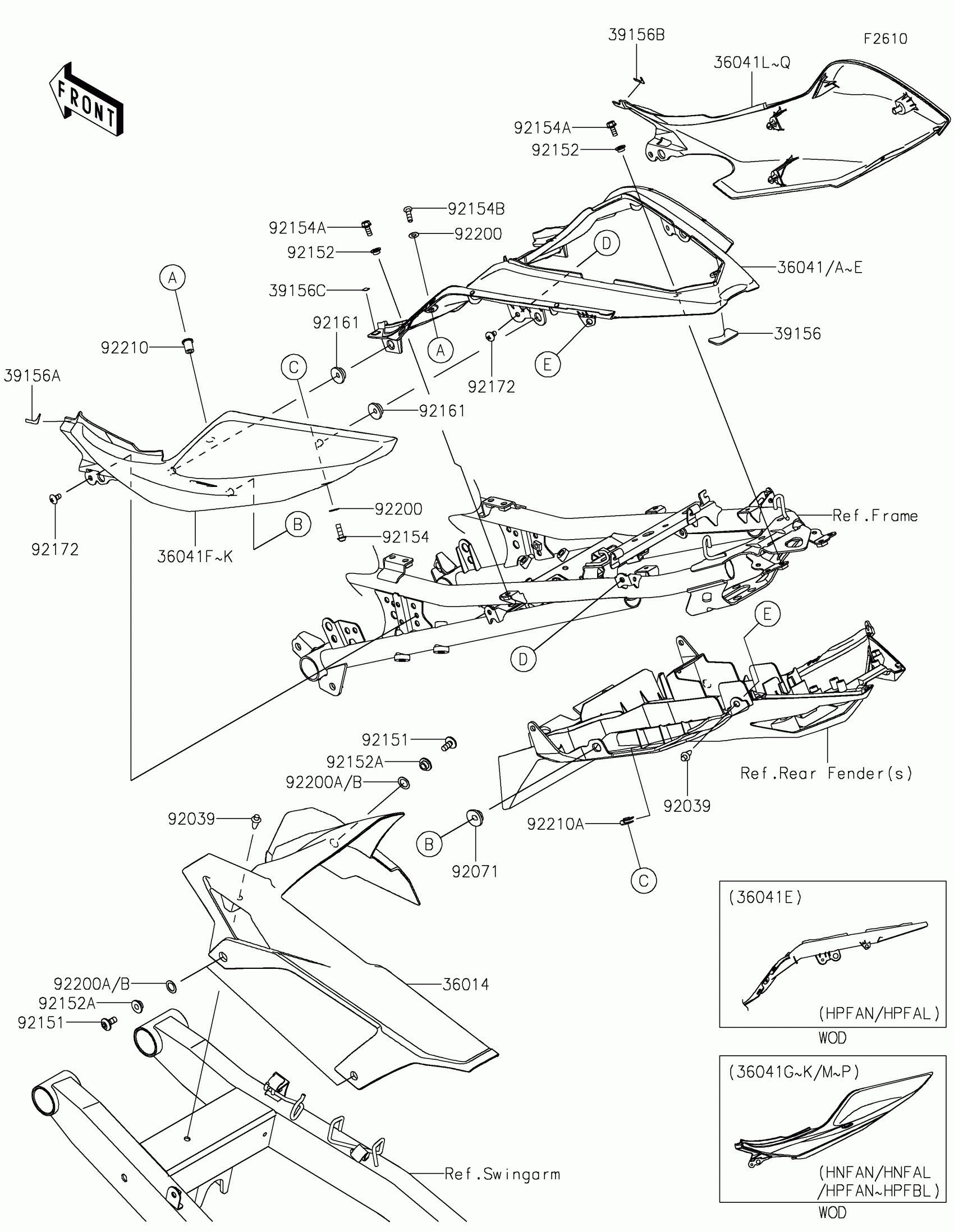

Kawasaki NINJA® 400 KRT EDITION Side Covers/Chain Cover Diagram

Description

Price

36014

CASE-CHAIN

36014-0571

$32.97

36041A

COVER-TAIL,CNT,M.C.GRAY

36041-0036-51A

$207.88

36041B

COVER-TAIL,CNT,P.B.WHITE

36041-0036-54X

$186.69

36041E

COVER-TAIL,CNT,EBONY

36041-0036-H8

$213.87

36041F

COVER-TAIL,LH,M.C.GRAY

36041-0037-51A

$62.90

36041G

COVER-TAIL,LH,P.B.WHITE

36041-0037-54X

$62.90

36041J

COVER-TAIL,LH,L.GREEN

36041-0037-777

$75.03

36041L

COVER-TAIL,RH,M.C.GRAY

36041-0038-51A

$71.65

36041M

COVER-TAIL,RH,P.B.WHITE

36041-0038-54X

$71.65

36041P

COVER-TAIL,RH,L.GREEN

36041-0038-777

$75.03

39156

PAD,19.4X34X2

39156-2218

$0.82

39156A

PAD,TAIL COVER,FR,LH

39156-2298

$0.95

39156B

PAD,TAIL COVER,FR,RH

39156-2299

$0.95

39156C

PAD,5X13

39156-2300

$0.50

92039

RIVET

92039-0060

$2.34

92071

GROMMET,20X24X7.5

92071-0766

$1.09

92151

BOLT,SOCKET,6X14

92151-1654

$1.24

92152

COLLAR,6X8X4.5

92152-2395

$0.95

92152A

COLLAR,6.5X10X5.9

92152-2486

$2.38

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,FLANGED,5X12

92154-2893

$0.60

92154B

BOLT,SOCKET,5X16

92154-3837

$0.95

92161

DAMPER

92161-1531

$2.11

92172

SCREW,5X10

92172-1090

$0.44

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36

92200B

WASHER,10.4X15.9X0.5

92200-2525

$0.68

92210

NUT,WELL,5MM

92210-0498

$5.58

92210A

NUT

92210-0571

$2.69
