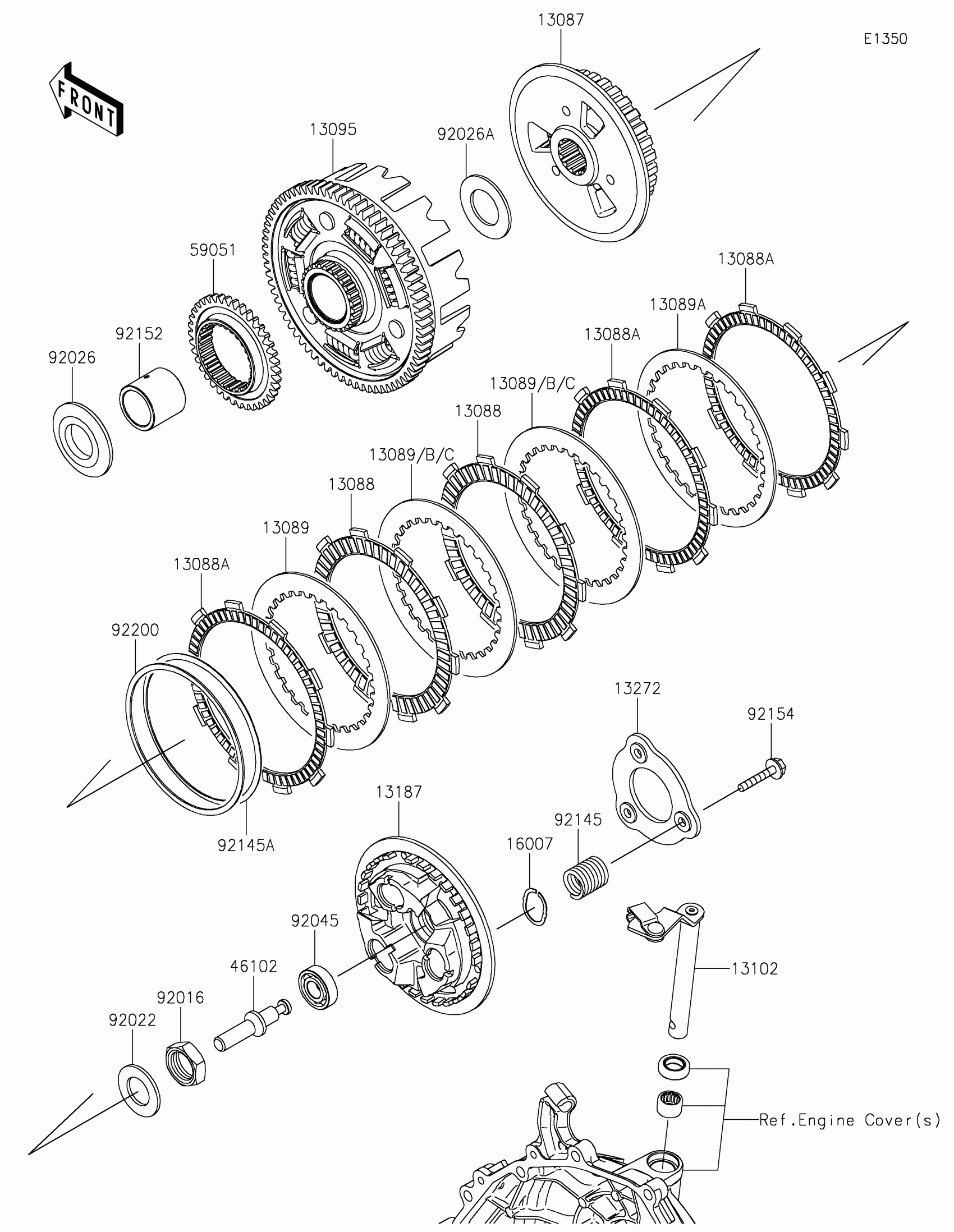

Kawasaki NINJA® 400 KRT EDITION Clutch Diagram

#

Description
Price

13087

HUB-CLUTCH

13087-0585

$119.32

13088

PLATE-FRICTION

13088-0592

$12.08

13088A

PLATE-FRICTION

13088-0630

$12.41

13089

PLATE-CLUTCH,T=2.0

13089-0041

$8.20

13089A

PLATE-CLUTCH,T=2.0

13089-0042

$9.02

13089B

PLATE-CLUTCH,T=1.6

13089-0043

Unavailable

13089C

PLATE-CLUTCH,T=2.3

13089-0044

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-0587

$544.89

13102

RELEASE-COMP-CLUTCH

13102-0076

$53.33

13187

PLATE-CLUTCH OPERATING

13187-0033

$85.96

13272

PLATE

13272-2414

$18.05

16007

SEAT-SPRING

16007-0711

$3.10

46102

ROD

46102-0648

$29.84

59051

GEAR-SPUR,OIL PUMP,38T

59051-0796

$132.24

92016

NUT,20MM

92016-028

$7.54

92022

WASHER,20.3X36X2.3

92022-1116

$6.55

92026

SPACER,25X52X5.5

92026-0115

Unavailable

92026A

SPACER,25.5X44.5X2

92026-0734

$5.76

92045

BEARING-BALL

92045-0937

$13.08

92145

SPRING,CLUTCH

92145-1789

$6.65

92145A

SPRING,JUDDER

92145-1829

$7.91

92152

COLLAR,25X32X29.1

92152-2524

$36.98

92154

BOLT,UPSET,6X30

92154-0997

$2.31

92200

WASHER,99.4X107X1.2

92200-1987

$7.98
