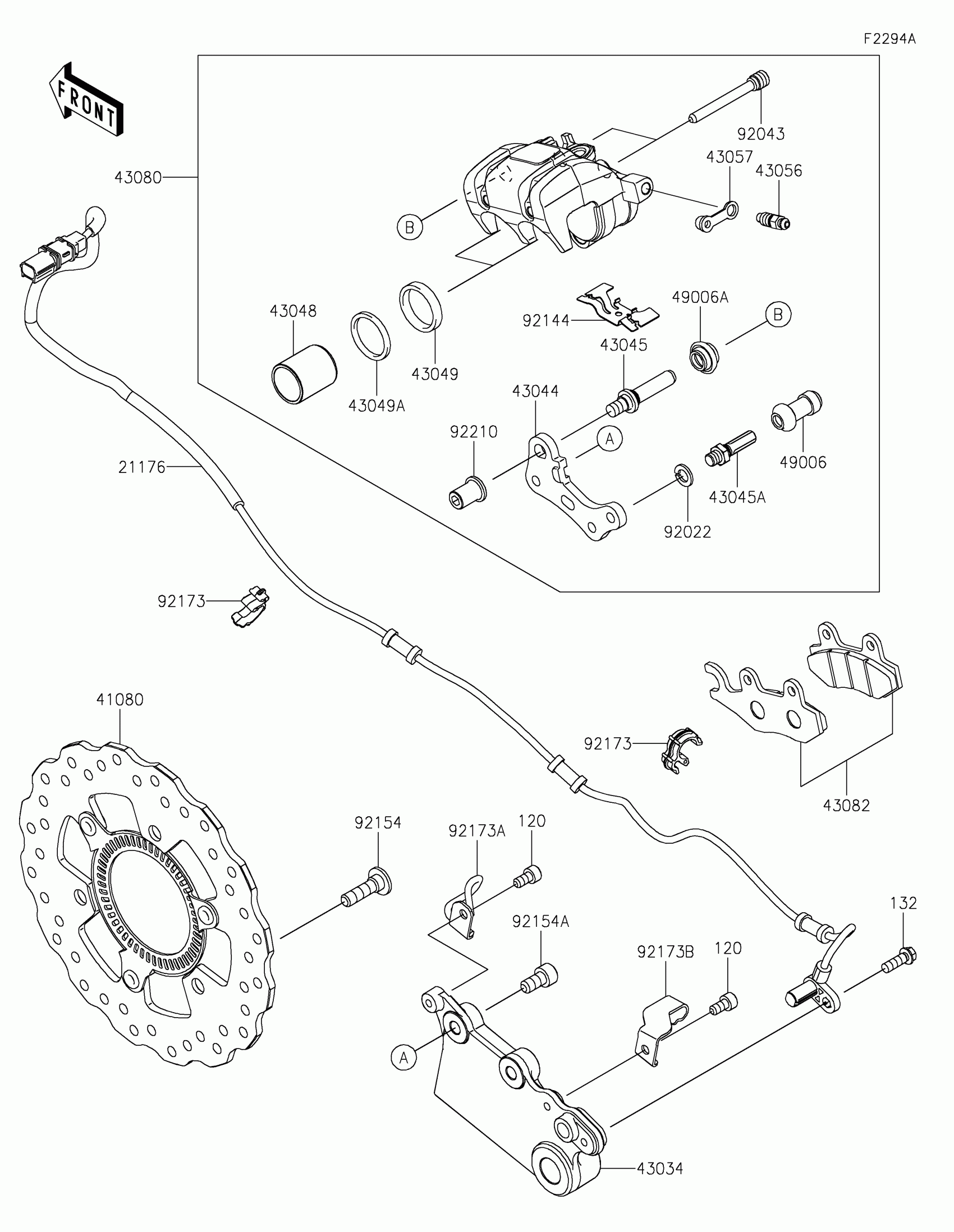

Kawasaki NINJA® 400 KRT EDITION Rear Brake(HPFNN-HPFBL) Diagram

Description

Price

21176

SENSOR,SPEED,RR

21176-1142

$139.73

41080

DISC,RR,W/R,BLACK

41080-0686-11H

$294.29

43034

HOLDER-BRAKE

43034-0171

$85.82

43044

HOLDER-COMP-CALIPER

43044-1112

$118.22

43045

SHAFT-CALIPER

43045-0013

$20.77

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER-BRAKE

43056-0004

$13.48

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-0245-DJ

$401.25

43082

PAD-ASSY-BRAKE

43082-0128

$47.06

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1507

$13.75

92144

SPRING,PAD

92144-1847

$30.33

92154

BOLT,SOCKET,8X30

92154-1865

$4.69

92154A

BOLT-SOCKET,8X16

92154-7088

$3.04

92173

CLAMP,HOSE&SENSOR LINE

92173-1614

$1.42

92173A

CLAMP

92173-2481

$5.31

92173B

CLAMP

92173-2483

$3.53

92210

NUT

92210-0615

$6.26

120

BOLT-SOCKET,6X12

120CA0612

$1.71

132

BOLT-FLANGED-SMALL,6X18

132BC0618

$2.15
