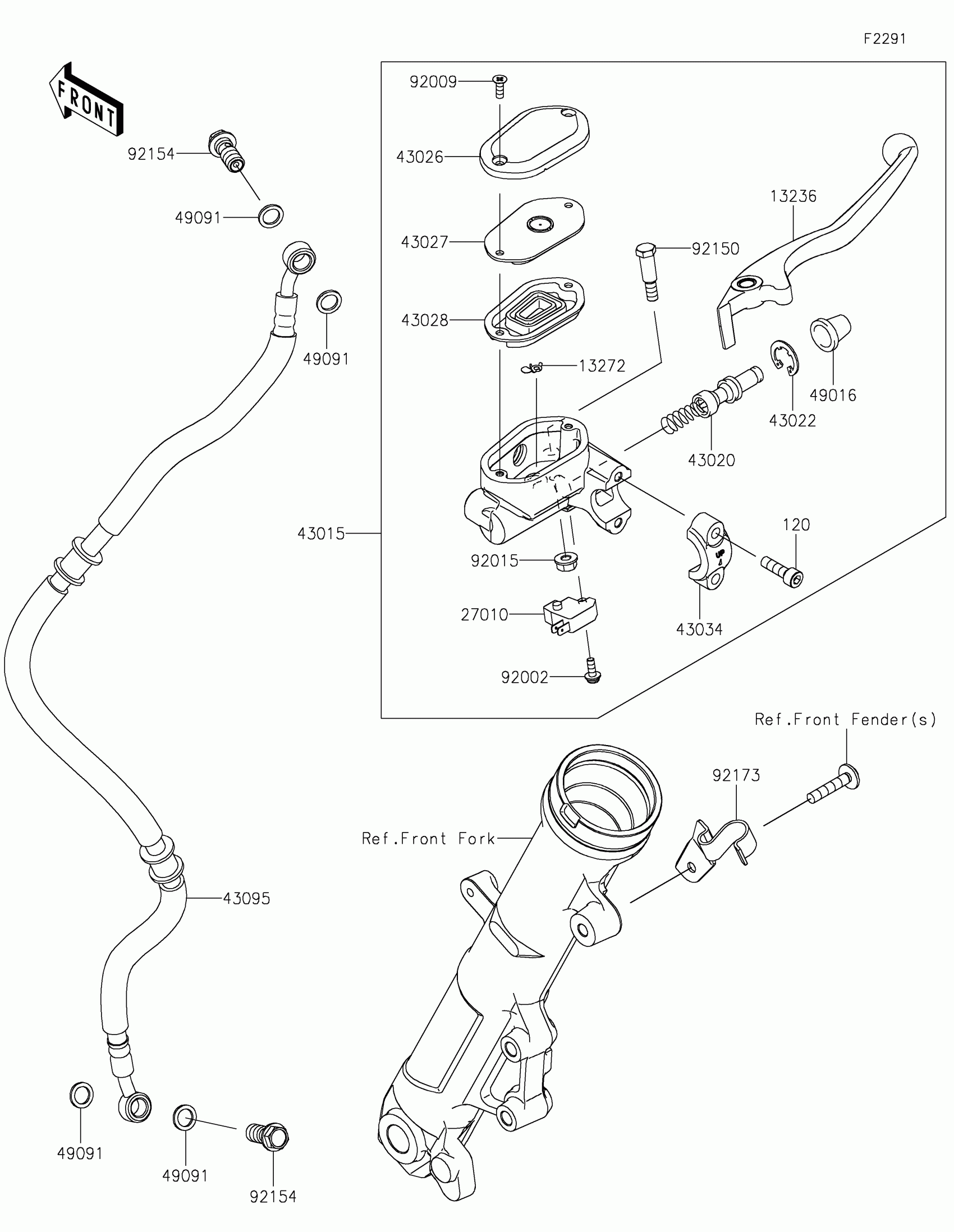

Kawasaki NINJA® 400 KRT EDITION Front Master Cylinder Diagram

Description

Price

13236

LEVER-COMP

13236-0811

$25.22

13272

PLATE

13272-0573

$7.60

27010

SWITCH,BRAKE

27010-0762

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0713

$410.93

43020

PISTON-COMP-BRAKE

43020-0022

$51.24

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0026

$46.40

43027

PLATE-DIAPHRAGM

43027-0010

$8.70

43028

DIAPHRAGM

43028-0022

$36.45

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43095

HOSE-BRAKE,FR M/CYLINDER-HU

43095-1491

$85.39

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92002

BOLT,SCREW,4X12

92002-1323

$3.92

92009

SCREW,4MM

92009-1458

$3.21

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92150

BOLT,LEVER SET

92150-1451

$14.23

92154

BOLT,BANJO,10X23

92154-1712

$3.94

92173

CLAMP,HOSE&SENSOR

92173-1774

$3.21

120

BOLT-SOCKET,6X20

120CB0620

$1.22
