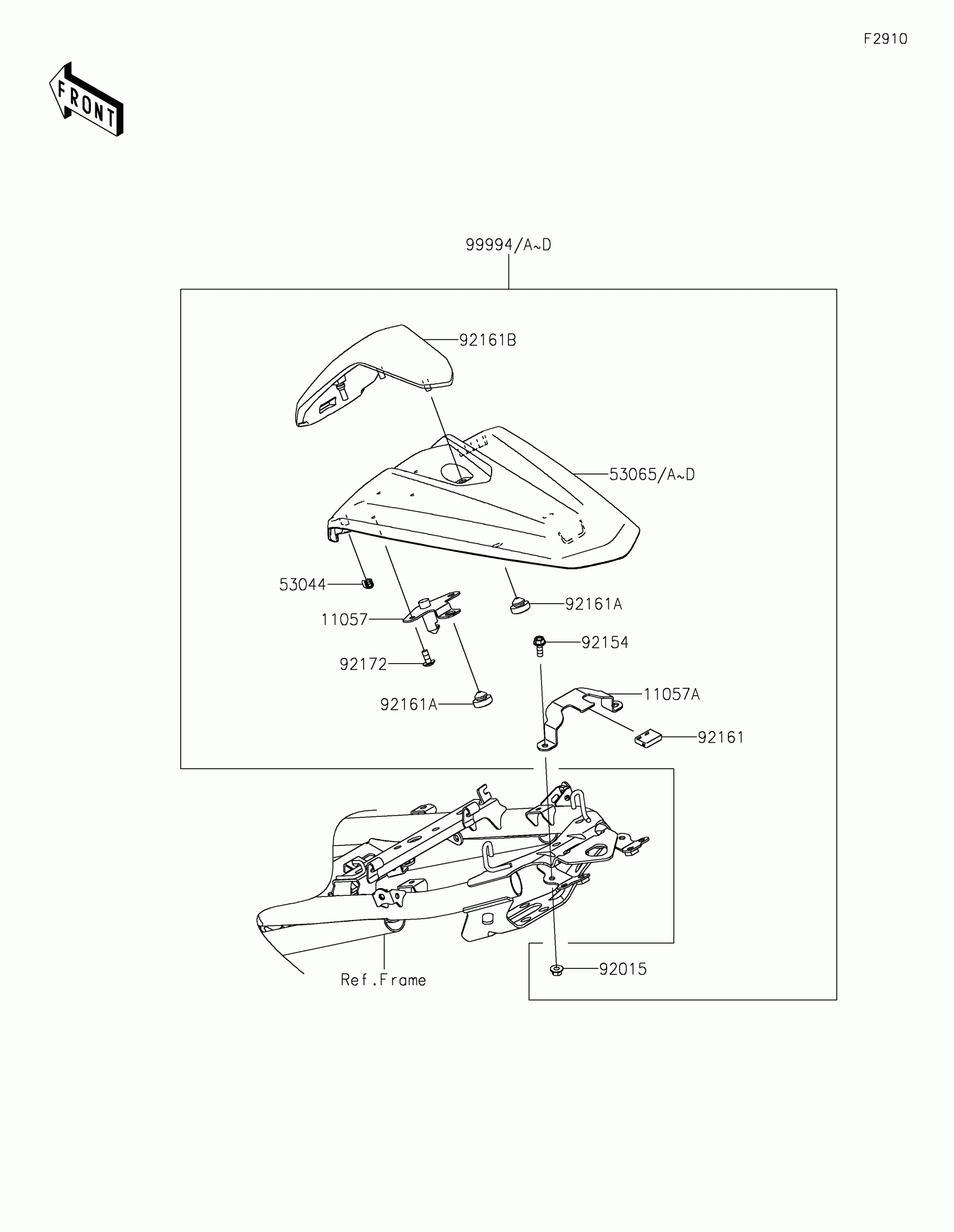

Kawasaki NINJA® 400 KRT EDITION Accessory(Pillion Seat Cover) Diagram

Description

Price

11057

BRACKET,COVER FIX

11057-1241

$15.98

11057A

BRACKET,FRAME FIX

11057-1242

$5.56

53044

TRIM,L=20

53044-0021

$2.71

53065

COVER SEAT,M.C.GRAY

53065-0044-51A

$196.58

53065A

COVER SEAT,P.B.WHITE

53065-0044-54X

$196.59

53065D

COVER SEAT,L.GREEN

53065-0044-777

$255.81

92015

NUT,FLANGED,5MM

92015-1656

$2.59

92154

BOLT,FLANGED,5X14

92154-2894

$0.60

92161

DAMPER,15X21X5.5

92161-1472

$2.11

92161A

DAMPER,9.5X18X6

92161-1473

$1.24

92161B

DAMPER,SEAT COVER

92161-1988

$32.37

92172

SCREW,5X12

92172-0821

$0.73

99994

PILLION SEAT COVER,M.C.GRAY

99994-1038-51A

$210.76

99994A

KIT,SINGLE SEAT COVER,P.B.WHT

99994-1038-54X

$187.50

99994D

KIT,SINGLE SEAT COVER,L.GREEN

99994-1038-777

$181.36
