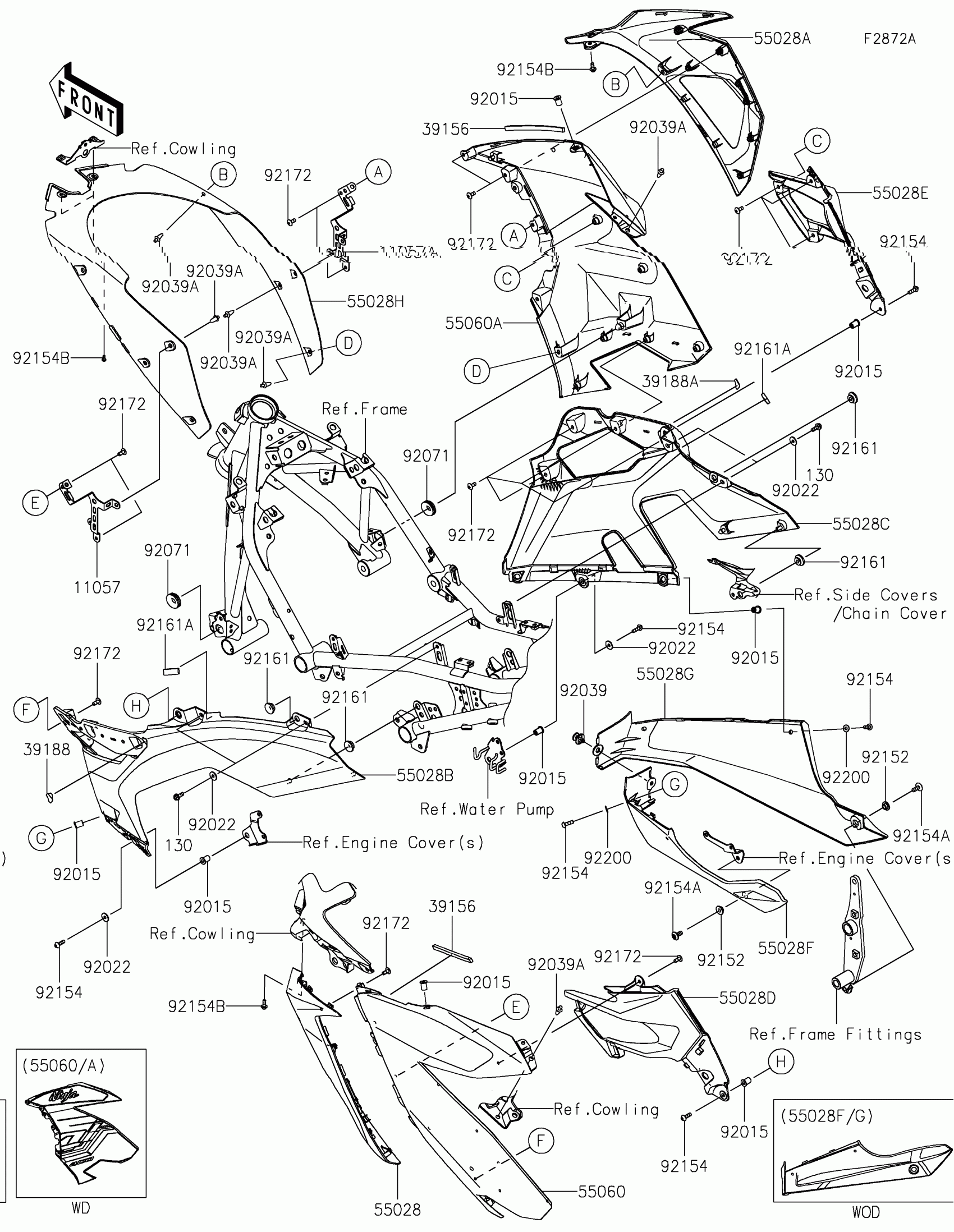

Kawasaki Ninja 400 KRT Edition ABS Cowling Lowers(GRFAN) Diagram

Description

Price

11057

BRACKET,COWL.,FR,LH

11057-1197

$11.02

11057A

BRACKET,COWL.,FR,RH

11057-1198

$11.02

39156

PAD,7X130X5

39156-2296

$1.27

39188

TAPE,LWR SIDE COWL.,LH

39188-0573

$1.16

39188A

TAPE,LWR SIDE COWL.,RH

39188-0574

$0.90

55028

COWLING,SIDE,FR,LH

55028-0637

$37.49

55028A

COWLING,SIDE,FR,RH

55028-0638

$37.49

55028B

COWLING,SIDE,LWR,LH,L.GREEN

55028-0641-777

$246.88

55028C

COWLING,SIDE,LWR,RH,L.GREEN

55028-0642-777

$246.88

55028D

COWLING,FIN,LH,EBONY

55028-0643-H8

$95.67

55028E

COWLING,FIN,RH,EBONY

55028-0644-H8

$95.67

55028F

COWLING,LWR,LH,L.GREEN

55028-0645-777

$157.97

55028G

COWLING,LWR,RH,L.GREEN

55028-0646-777

$160.82

55028H

COWLING,INNER

55028-0647

$97.04

55060

COWLING,SIDE,UPP,LH,EBONY

55060-5157-H8

$438.72

55060A

COWLING,SIDE,UPP,RH,EBONY

55060-5159-H8

$438.72

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,5.2X16X1.2

92022-263

$1.66

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92039A

RIVET

92039-0060

$3.39

92071

GROMMET

92071-1043

$5.46

92152

COLLAR,6.5X16X5.6

92152-1838

$4.20

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,6X14

92154-0932

$1.97

92154B

BOLT,SOCKET,5X12

92154-1421

$0.95

92161

DAMPER

92161-1531

$3.02

92161A

DAMPER,10X28X5

92161-2107

$2.44

92172

SCREW,5X12

92172-0821

$0.85

92200

WASHER,5.2X12X1.0

92200-0784

$0.85

130

BOLT-FLANGED,5X14

130BA0514

$2.06
