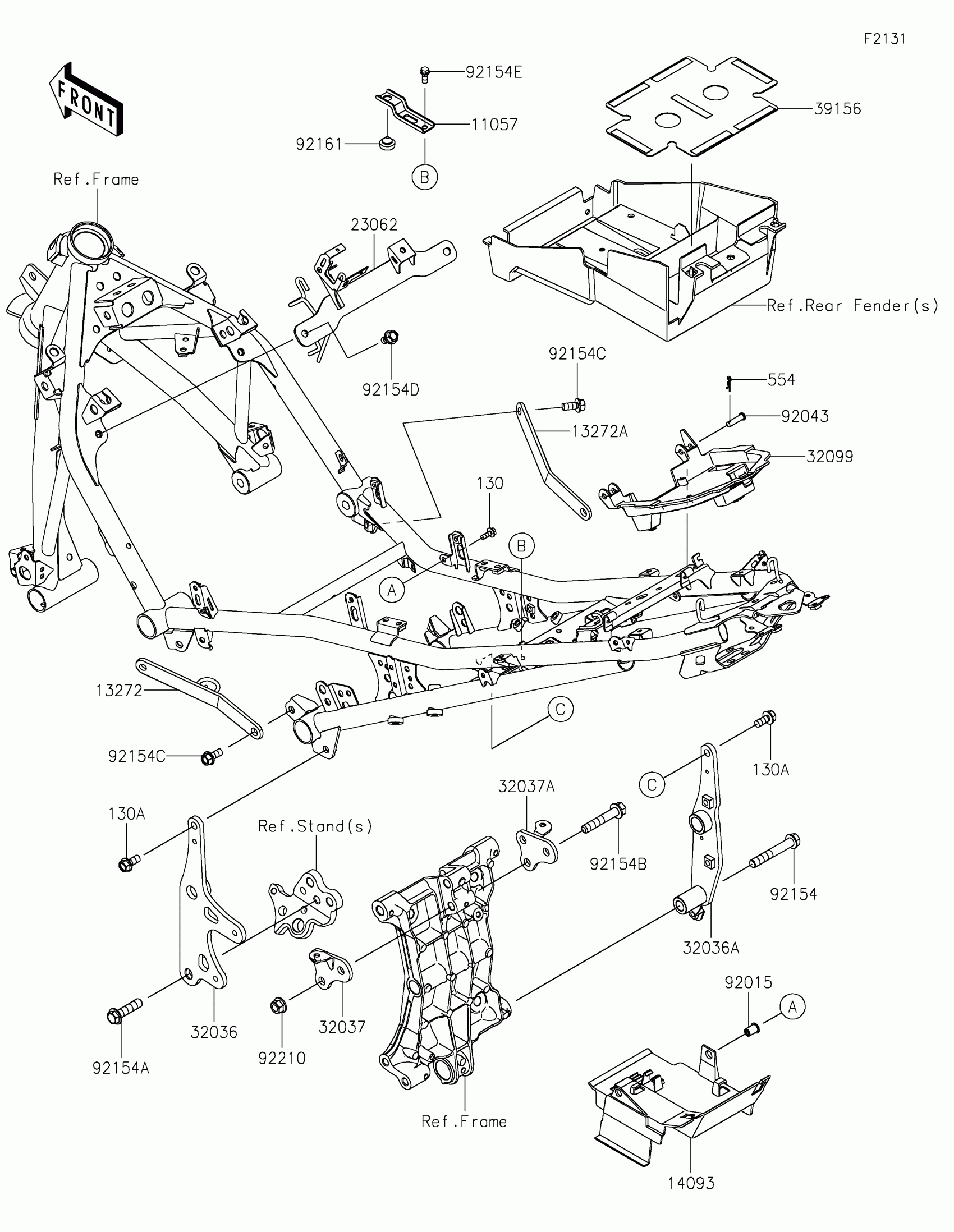

2021 Kawasaki Ninja® 400 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Ninja® 400 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,BATTERY

11057-1213

1

$2.02

In stock

13272

1

$11.76

In stock

13272A

1

$11.76

In stock

14093

COVER,ECU

14093-0646

1

$11.44

In stock

23062

1

$31.82

In stock

32036

BRACKET-SWINGARM,LH

32036-0378

1

$49.01

In stock

32036A

BRACKET-SWINGARM,RH

32036-0379

1

$55.90

In stock

32037

1

$13.94

In stock

32037A

1

$16.56

In stock

32099

CASE,SEAT UNDER

32099-0787

1

$10.59

In stock

39156

PAD,BATTERY CASE

39156-2220

1

$16.31

In stock

92015

NUT,WELL,5MM

92015-1757

1

$5.81

In stock

92043

PIN,6X23

92043-0746

1

$1.68

In stock

92154

BOLT,FLANGED,10X65

92154-1964

1

$10.16

In stock

92154A

BOLT,FLANGED,10X40

92154-2812

1

$3.85

In stock

92154B

BOLT,FLANGED,10X54

92154-2813

1

$5.34

In stock

92154C

BOLT-FLANGED,8X14

92154-3782

1

$1.66

In stock

92154D

BOLT-FLANGED,8X14

92154-3851

1

$1.66

In stock

92154E

BOLT,6X14

92154-4129

1

$0.88

In stock

92161

DAMPER,9.5X18X6

92161-1473

1

$1.44

In stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

130

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock

130A

BOLT-FLANGED,8X18

130CA0818

1

$2.10

In stock

554

PIN-SNAP,1.2X21.2

554DA0600

1

$0.92

In stock
