2021 Kawasaki Ninja® 400 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2021 Kawasaki Ninja® 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

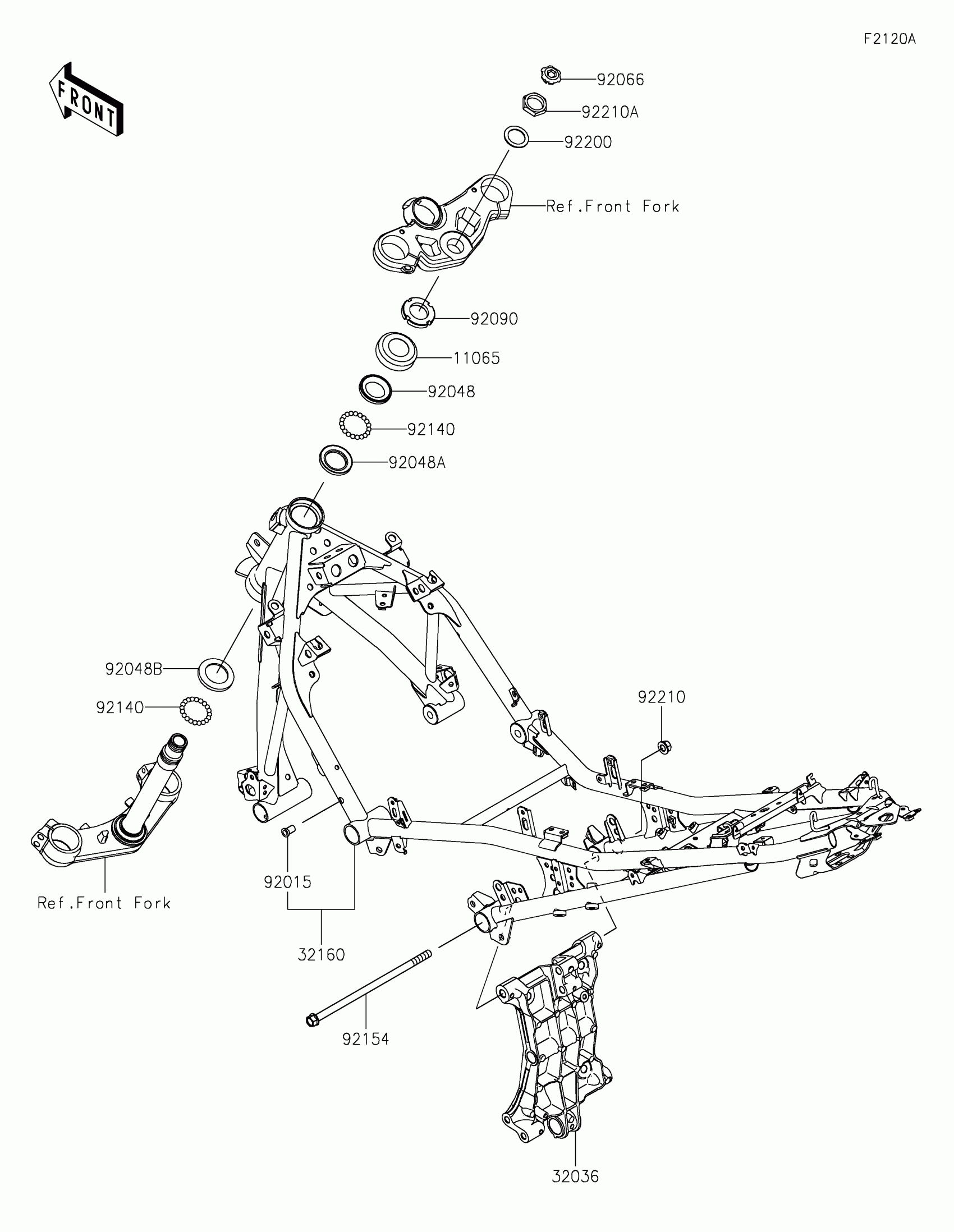

2021 Kawasaki Ninja® 400 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-1290

1
Out of stock

32036

BRACKET-SWINGARM

32036-0376

1

$448.84

In stock

32160

FRAME-COMP,F.S.BLACK

32160-0950-18R

1

$2,138.70

In stock

92015

NUT,POP,6MM

92015-1759

1

$4.42

In stock

92048

1

$13.85

In stock

92048A

RACE,STEERING STEM BEARING

92048-006

1
Out of stock

92048B

RACE,STEERING STEM BEARING

92048-008

1
Out of stock

92066

PLUG

92066-0915

1

$2.17

In stock

92090

NUT,30MM

92090-007

1

$9.29

In stock

92140

BALL,6.35MM

92140-0008

1
Out of stock

92154

BOLT,FLANGED,10X231

92154-3738

1

$25.78

In stock

92200

WASHER,25.5X36X1.6

92200-1858

1
Out of stock

92210

NUT,LOCK,FLANGED,10MM

92210-1139

1
Out of stock

92210A

NUT,25MM

92210-1586

1

$10.14

In stock
