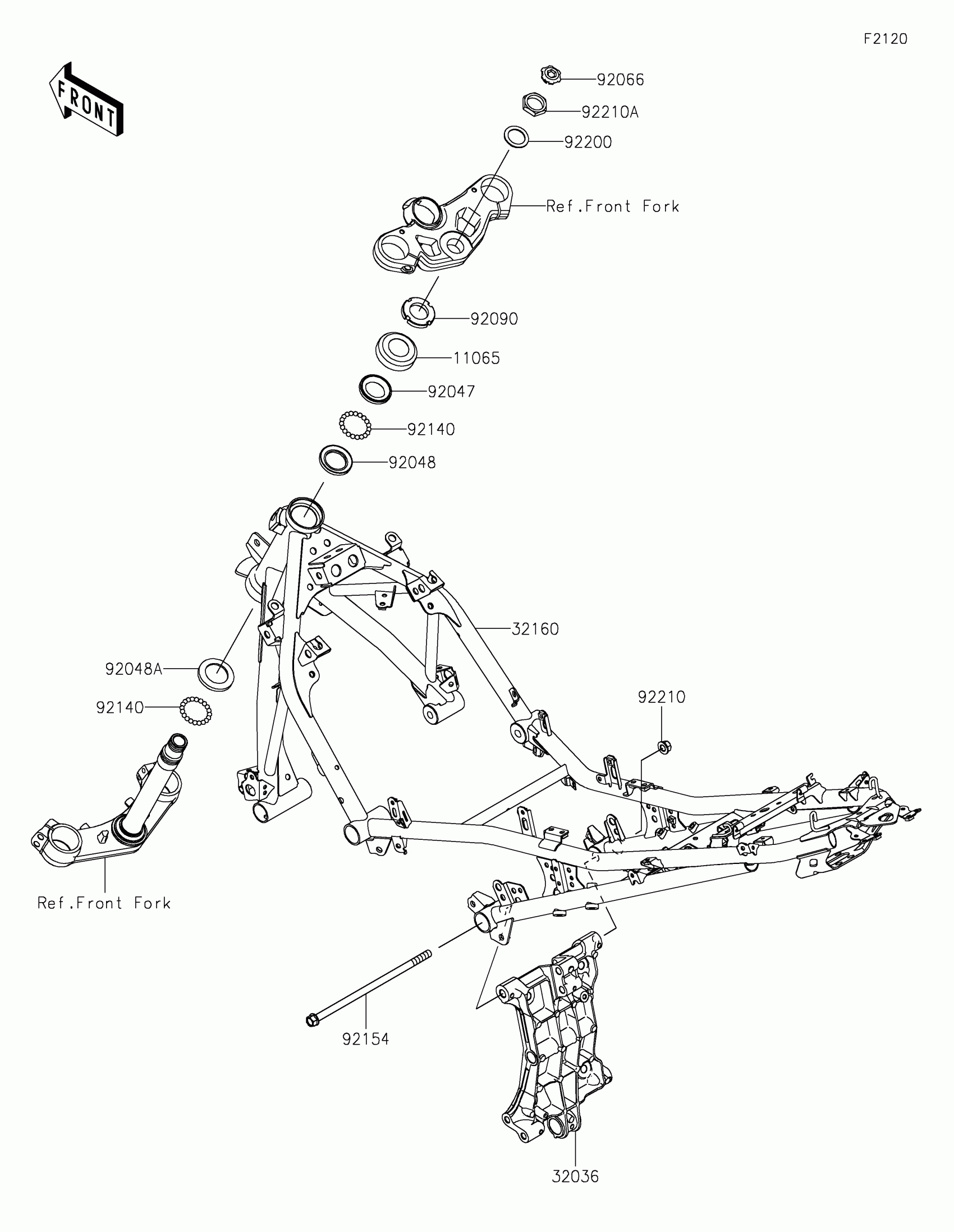

Kawasaki NINJA® 400 Frame(CN,US) Diagram

Description

Price

11065

CAP

11065-1290

$6.07

32036

BRACKET-SWINGARM

32036-0376

$439.54

32160

FRAME-COMP,F.S.BLACK

32160-1942-18R

$2,001.53

92048

RACE,STEERING STEM BEARING

92048-0032

$14.60

92048A

RACE,STEERING STEM BEARING

92048-0036

$11.61

92048B

RACE,STEERING STEM BEARING

92048-0037

$16.02

92066

PLUG

92066-0915

$2.64

92090

NUT,30MM

92090-007

$11.71

92140

BALL,6.35MM

92140-0008

Unavailable

92154

BOLT,FLANGED,10X231

92154-3738

$27.48

92200

WASHER,25.5X36X1.6

92200-1858

$8.72

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18

92210A

NUT,25MM

92210-1586

$10.52
