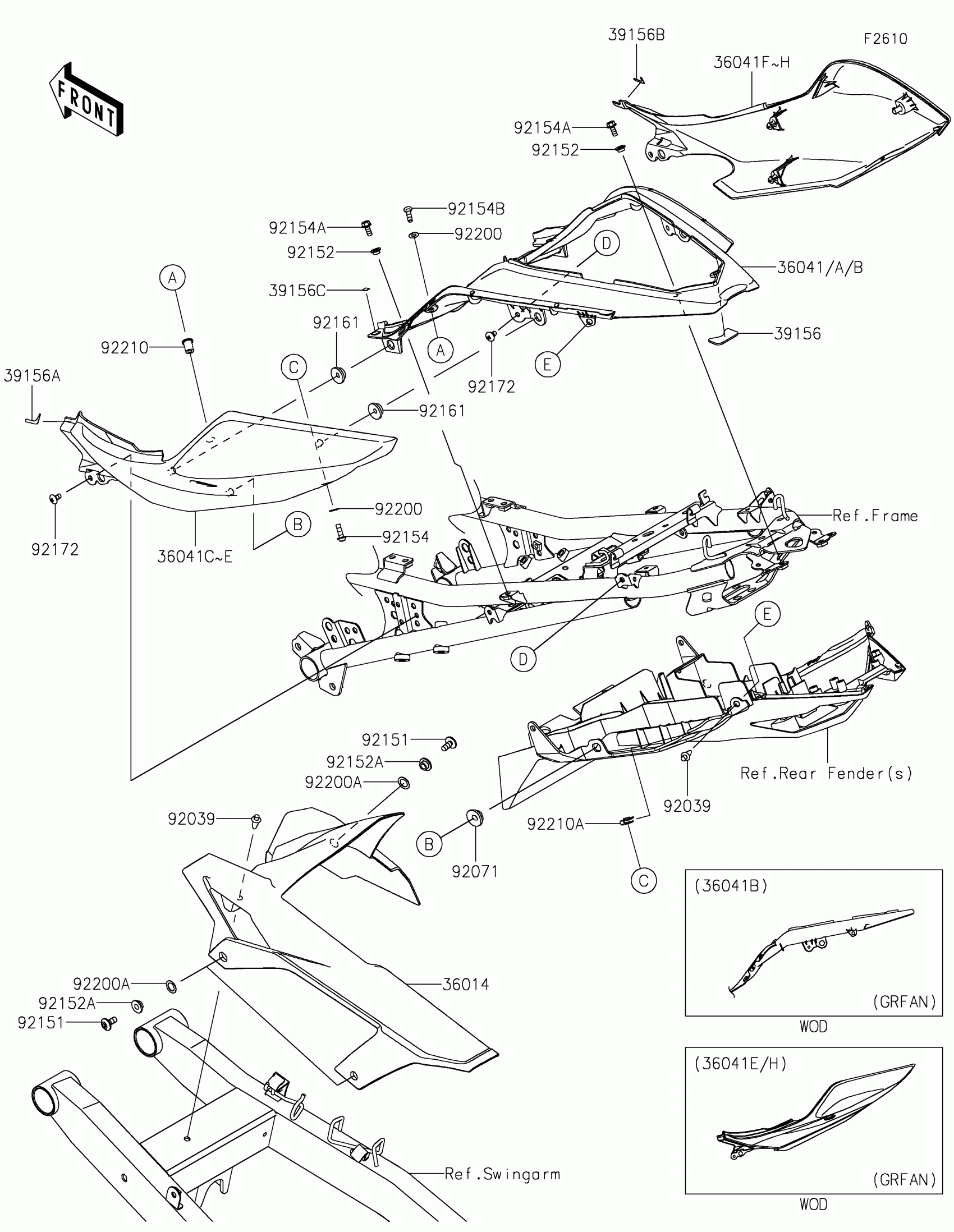

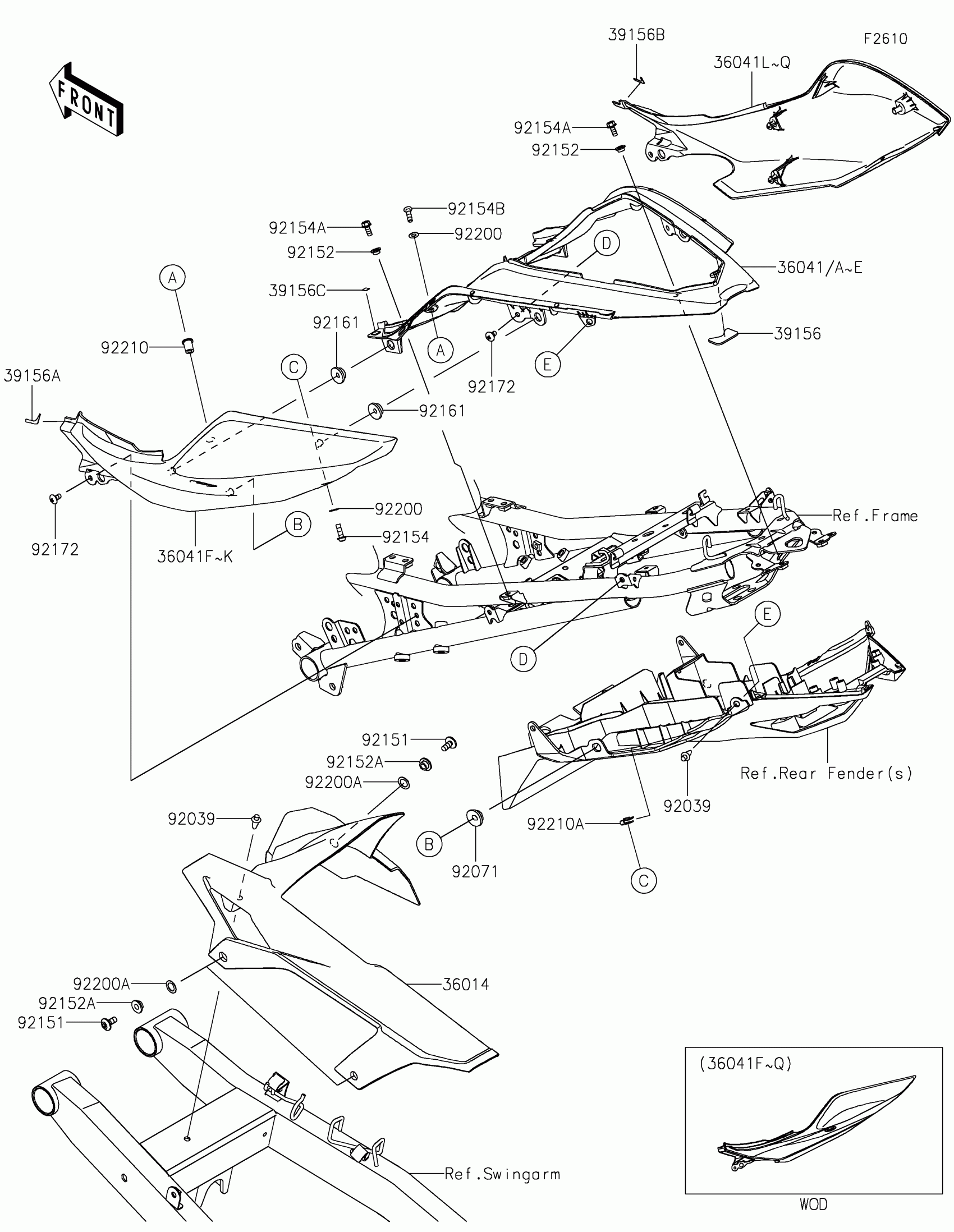

Kawasaki Ninja 400 ABS Side Covers/Chain Cover Diagram

Description

Price

36014

CASE-CHAIN

36014-0571

$36.70

36041

COVER-TAIL,CNT,P.RED

36041-0036-234

$203.58

36041A

COVER-TAIL,CNT,M.C.GRAY

36041-0036-51A

$203.58

36041C

COVER-TAIL,LH,P.RED

36041-0037-234

$70.31

36041D

COVER-TAIL,LH,M.C.GRAY

36041-0037-51A

$70.31

36041F

COVER-TAIL,RH,P.RED

36041-0038-234

$70.31

36041G

COVER-TAIL,RH,M.C.GRAY

36041-0038-51A

$70.31

39156

PAD,19.4X34X2

39156-2218

$0.98

39156A

PAD,TAIL COVER,FR,LH

39156-2298

$0.98

39156B

PAD,TAIL COVER,FR,RH

39156-2299

$0.98

39156C

PAD,5X13

39156-2300

$0.45

92039

RIVET

92039-0060

$3.39

92071

GROMMET,20X24X7.5

92071-0766

$1.41

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,6X8X4.5

92152-2395

$1.17

92152A

COLLAR,6.5X10X5.9

92152-2486

$3.44

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,FLANGED,5X12

92154-2893

$0.64

92154B

BOLT,SOCKET,5X16

92154-3837

$1.17

92161

DAMPER

92161-1531

$3.02

92172

SCREW,5X10

92172-1090

$0.42

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,10.4X15.9X0.5

92200-2525

$0.76

92210

NUT,WELL,5MM

92210-0498

$7.29

92210A

NUT

92210-0571

$3.52
