Description

Price

11057

BRACKET,RR RESERVOIR

11057-1101

$7.65

11057A

BRACKET,PIVOT BRACKET

11057-1103

$11.02

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-0022

$71.10

43015

CYLINDER-ASSY-MASTER,RR

43015-0667

$264.68

43020

PISTON-COMP-BRAKE

43020-0023

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0040

$28.98

43095

HOSE-BRAKE,RR M/CYLINDER-HU

43095-1489

$280.20

43095A

HOSE-BRAKE,HU-RR CALIPER

43095-1490

$225.31

43095B

HOSE-BRAKE,RR RESERVOIR

43095-1495

$14.12

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN

92043-0904

$3.90

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92154

BOLT,SOCKET,8X30

92154-0843

$4.72

92154A

BOLT,BANJO,10X22

92154-1138

$7.40

92154B

BOLT,BANJO,10X23

92154-1712

$3.94

92154C

BOLT,UPSET-WP,6X16

92154-2244

$1.17

92154D

BOLT,6X14

92154-4129

$0.90

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP

92171-0818

$4.41

92173

CLAMP,RESERVOIR TANK CAP

92173-0028

$5.54

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

$2.94

550

PIN-COTTER,2.0X15

550AA2015

$1.12

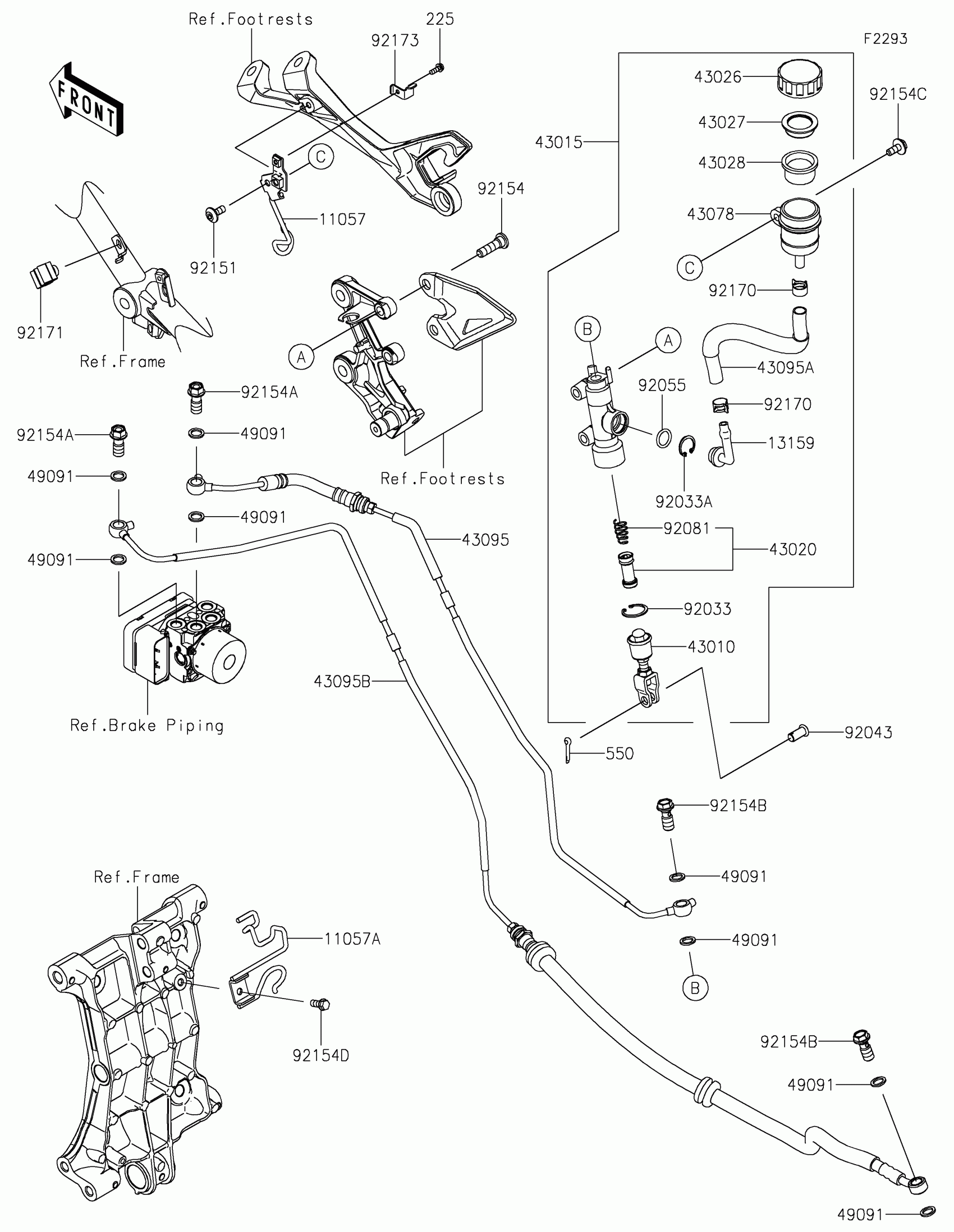

Kawasaki NINJA® 400 ABS Rear Master Cylinder Diagram
