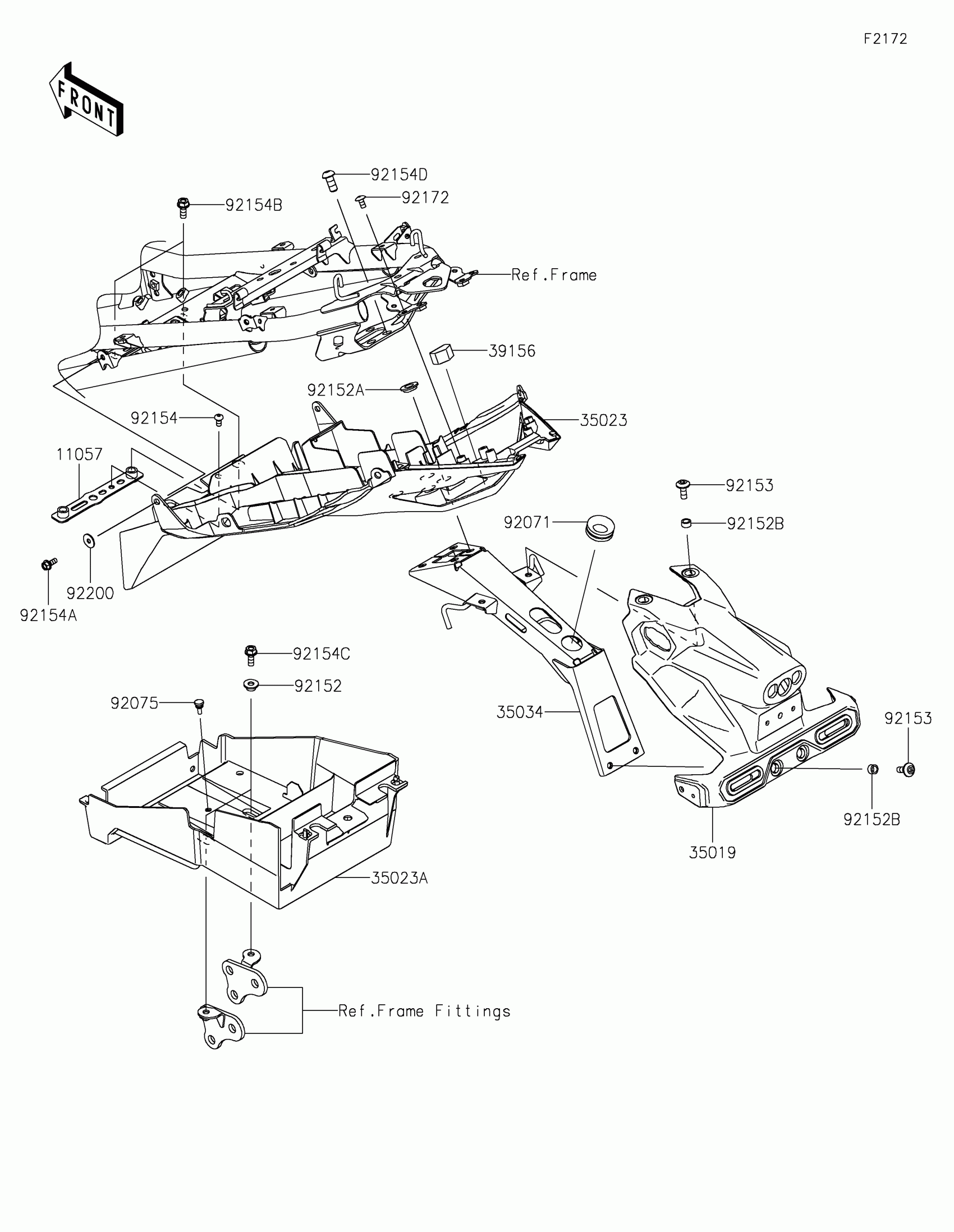

Kawasaki NINJA® 400 ABS Rear Fender(s) Diagram

Description

Price

11057

BRACKET

11057-1191

$17.30

35019

FLAP

35019-0639

$53.79

35023

FENDER-REAR

35023-0436

$54.00

35023A

FENDER-REAR

35023-0438

$29.45

35034

REINFORCE

35034-0601

$73.13

39156

PAD,16X24X13

39156-2379

$1.27

92071

GROMMET

92071-0709

$1.18

92075

DAMPER,6X10X15

92075-1808

$1.39

92152

COLLAR,6.5X10X6.4

92152-2287

$2.70

92152A

COLLAR,10X20X4.5

92152-2392

$3.21

92152B

COLLAR,6.8X10X5.4

92152-2393

$1.94

92153

BOLT,SOCKET,6X16

92153-1526

$1.78

92154

BOLT,SOCKET,5X10

92154-1547

$1.48

92154A

BOLT,FLANGED,5X12

92154-2893

$0.64

92154B

BOLT,FLANGED,6X16

92154-2895

$1.17

92154C

BOLT,FLANGED,6X16

92154-2900

$0.90

92154D

BOLT,SOCKET,8X18

92154-3739

$2.70

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92200

WASHER,5.2X16X1.2

92200-0583

$1.94
