2021 Kawasaki Ninja® 400 ABS Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2021 Kawasaki Ninja® 400 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

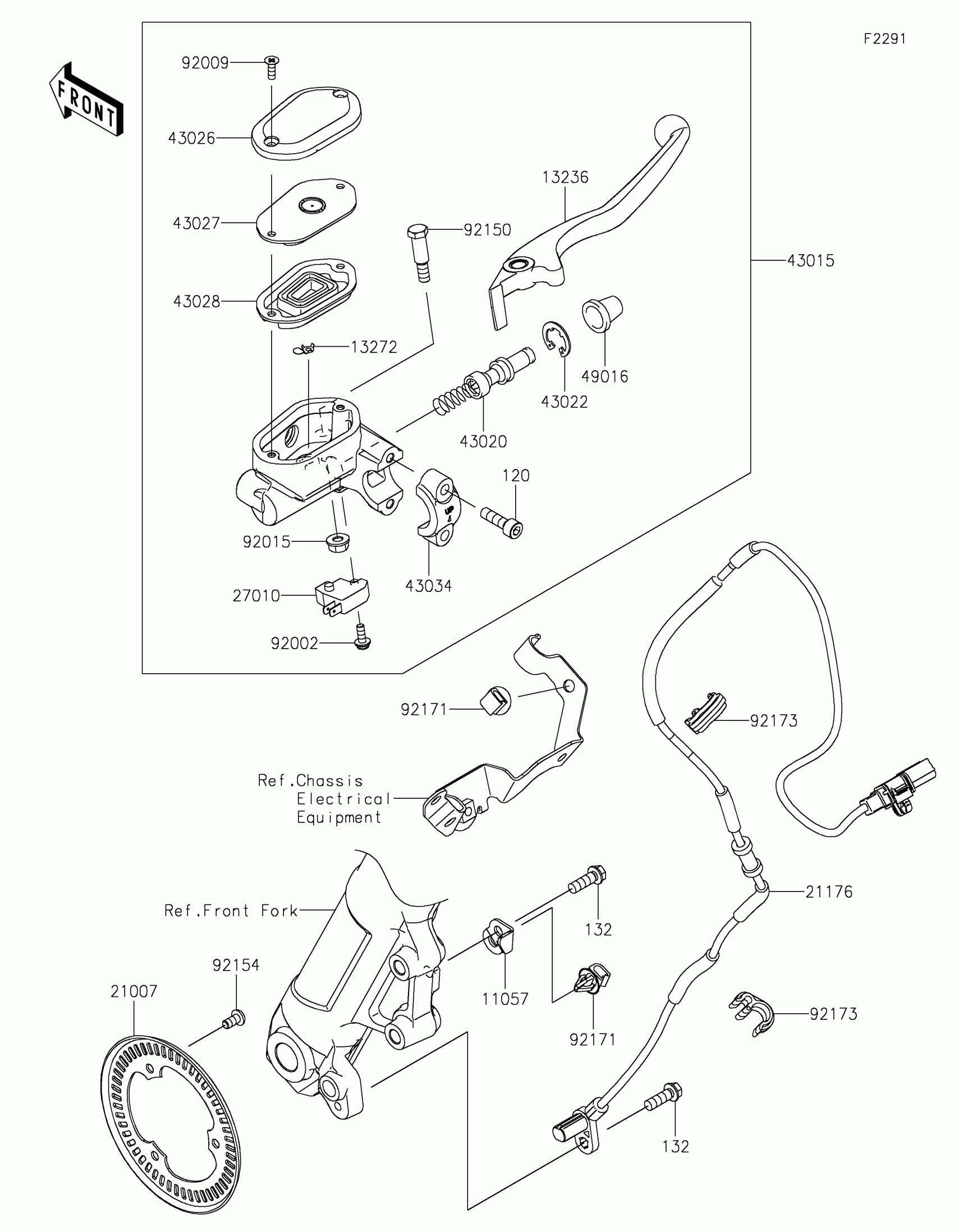

2021 Kawasaki Ninja® 400 ABS Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,SENSOR

11057-1099

1
Out of stock

13236

LEVER-COMP

13236-0811

1
Out of stock

13272

PLATE

13272-0573

1

$7.47

In stock

21007

ROTOR,SENSOR,FR

21007-0671

1
Out of stock

21176

SENSOR,SPEED,FR

21176-0855

1
Out of stock

27010

SWITCH,BRAKE

27010-0762

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0713

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0022

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-0026

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0010

1
Out of stock

43028

DIAPHRAGM

43028-0022

1
Out of stock

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

92002

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92009

SCREW,4MM

92009-1458

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92150

BOLT,LEVER SET

92150-1451

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-2801

1
Out of stock

92171

CLAMP

92171-0640

1
Out of stock

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

1
Out of stock

120

BOLT-SOCKET,6X20

120CB0620

1
Out of stock

132

1

$1.75

In stock
