2021 Kawasaki Ninja® 400 ABS Brake Piping Diagram

← All diagrams

Find the part on the Brake Piping diagram for your 2021 Kawasaki Ninja® 400 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

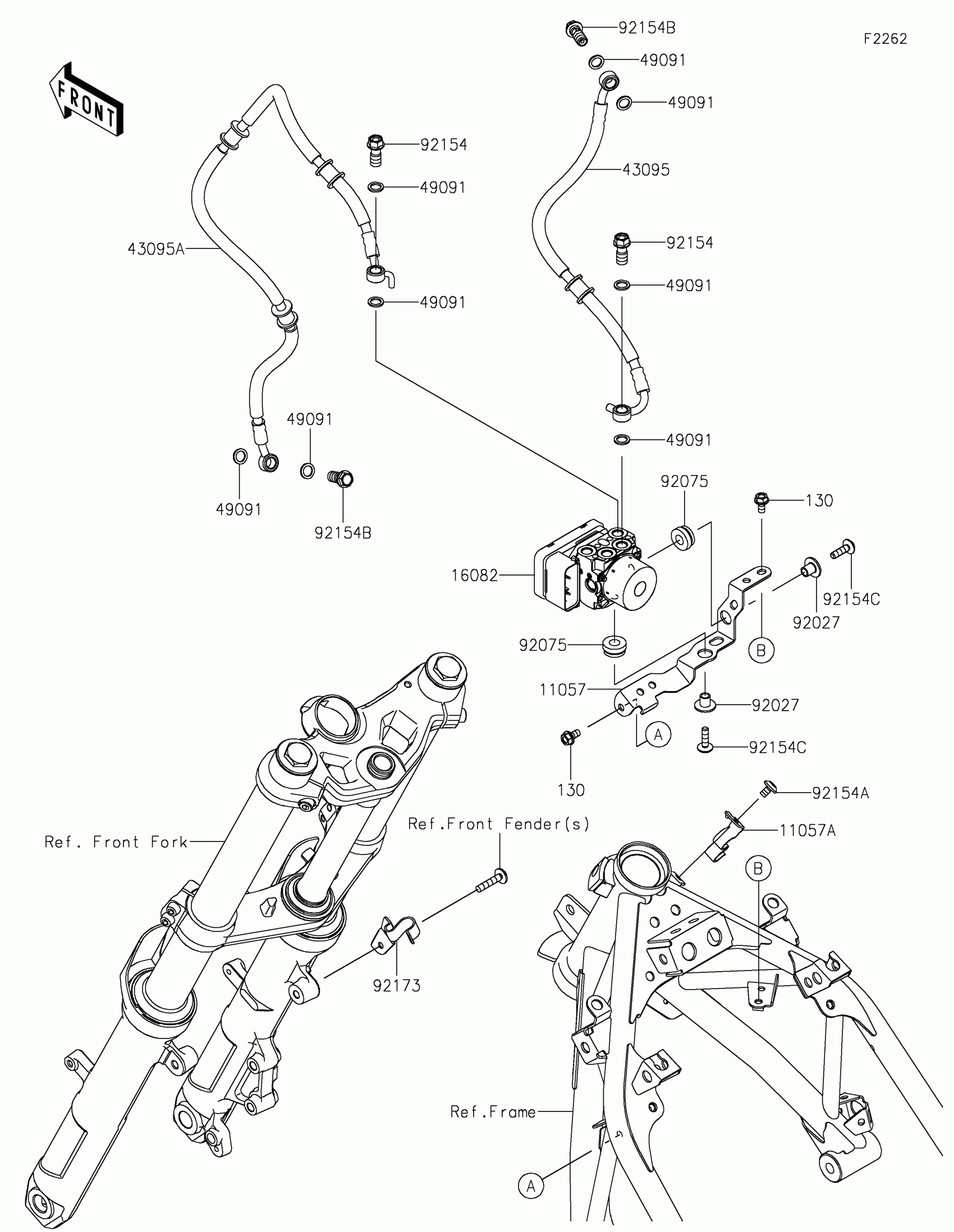

2021 Kawasaki Ninja® 400 ABS Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,ABS UNIT

11057-1098

1
Out of stock

11057A

BRACKET

11057-1100

1
Out of stock

16082

PUMP-ASSY-OIL

16082-0785

1
Out of stock

43095

HOSE-BRAKE,FR M/CYLINDER-HU

43095-1487

1
Out of stock

43095A

HOSE-BRAKE,HU-FR CALIPER

43095-1488

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92154

BOLT,BANJO,10X22

92154-1138

1
Out of stock

92154A

BOLT,SOCKET,6X10

92154-1693

1
Out of stock

92154B

BOLT,BANJO,10X23

92154-1712

1
Out of stock

92154C

BOLT,SOCKET,6X22

92154-2302

1
Out of stock

92173

CLAMP,HOSE&SENSOR

92173-1774

1
Out of stock

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock
