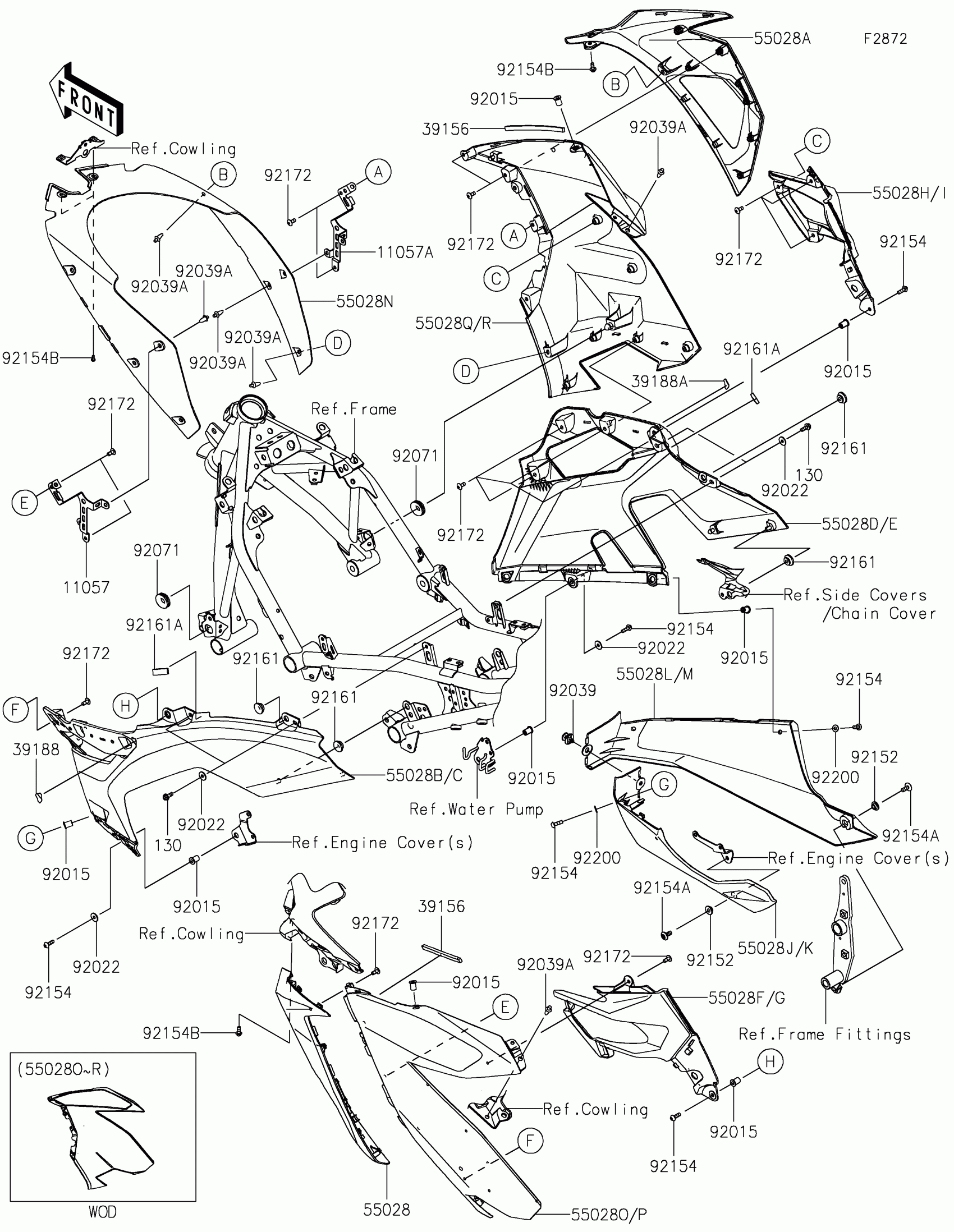

Kawasaki Ninja 400 ABS Cowling Lowers(GRFNN) Diagram

BRACKET,COWL.,FR,LH

11057-1197

$11.02

BRACKET,COWL.,FR,RH

11057-1198

$11.02

PAD,7X130X5

39156-2296

$1.27

TAPE,LWR SIDE COWL.,LH

39188-0573

$1.16

TAPE,LWR SIDE COWL.,RH

39188-0574

$0.90

COWLING,SIDE,FR,LH

55028-0637

$37.49

COWLING,SIDE,FR,RH

55028-0638

$37.49

COWLING,SIDE,LWR,LH,P.RED

55028-0641-234

$260.06

COWLING,SIDE,LWR,LH,M.M.C.GRAY

55028-0641-51B

$246.88

COWLING,SIDE,LWR,RH,P.RED

55028-0642-234

$260.06

COWLING,SIDE,LWR,RH,M.M.C.GRAY

55028-0642-51B

$259.61

COWLING,FIN,LH,M.S.SILVER

55028-0643-35Z

$95.67

COWLING,FIN,LH,C.L.GREEN

55028-0643-51P

$95.67

COWLING,FIN,RH,M.S.SILVER

55028-0644-35Z

$95.67

COWLING,FIN,RH,C.L.GREEN

55028-0644-51P

$95.67

COWLING,LWR,LH,M.C.GRAY

55028-0645-51A

$157.96

COWLING,LWR,LH,M.F.S.BLACK

55028-0645-739

$157.97

COWLING,LWR,RH,M.C.GRAY

55028-0646-51A

$160.53

COWLING,LWR,RH,M.F.S.BLACK

55028-0646-739

$160.53

COWLING,INNER

55028-0647

$97.04

COWLING,SIDE,UPP,LH,P.RED

55028-0686-234

$337.86

COWLING,SIDE,UPP,LH,M.C.GRAY

55028-0686-51A

$280.11

COWLING,SIDE,UPP,RH,P.RED

55028-0687-234

$337.86

COWLING,SIDE,UPP,RH,M.C.GRAY

55028-0687-51A

$280.11

NUT,WELL,5MM

92015-1757

$7.29

WASHER,5.2X16X1.2

92022-263

$1.66

RIVET,HOLE 8MM

92039-0014

$3.29

RIVET

92039-0060

$3.39

GROMMET

92071-1043

$5.46

COLLAR,6.5X16X5.6

92152-1838

$4.20

BOLT,SOCKET,5X16

92154-0209

$2.75

BOLT,SOCKET,6X14

92154-0932

$1.97

BOLT,SOCKET,5X12

92154-1421

$0.95

DAMPER

92161-1531

$3.02

DAMPER,10X28X5

92161-2107

$2.44

SCREW,5X12

92172-0821

$0.85

WASHER,5.2X12X1.0

92200-0784

$0.85

BOLT-FLANGED,5X14

130BA0514

$2.06
