- Partiron
- OEM Parts
- Kawasaki
- motorcycle
- 2024
- Ninja 400 ABS
Cowling

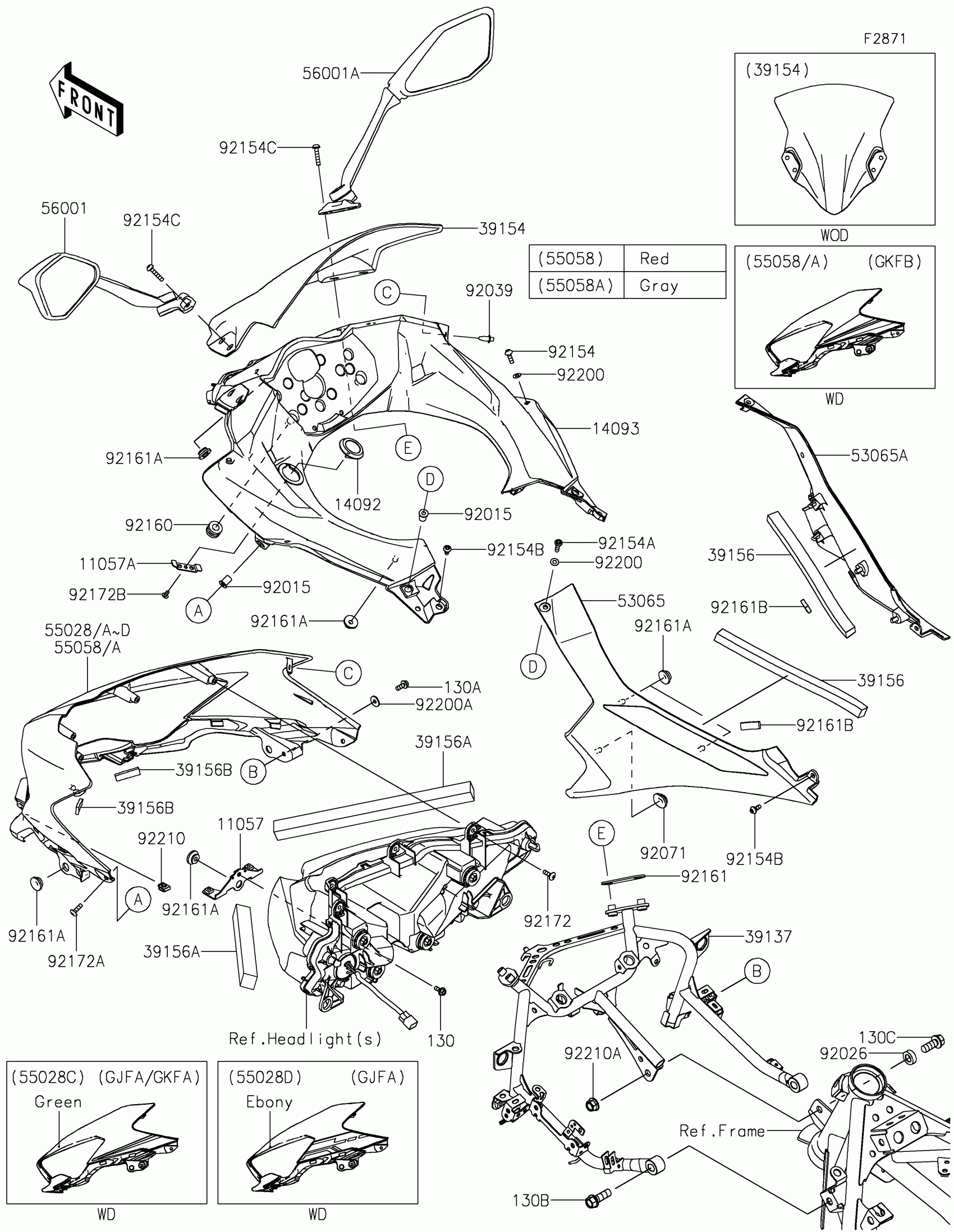

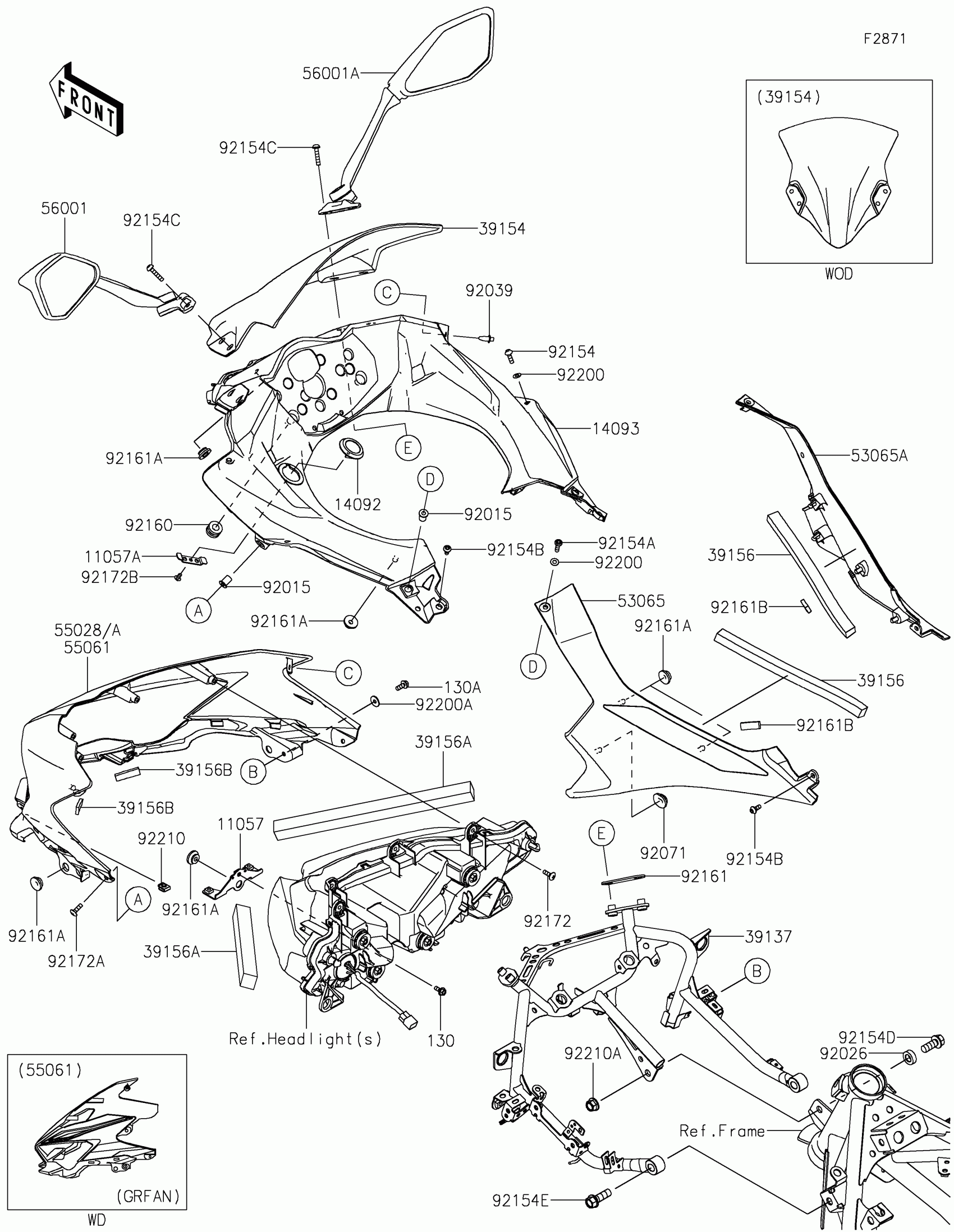

Kawasaki Ninja 400 ABS Cowling Diagram
#
11057
BRACKET,HEAD LAMP,LWR
11057-1199
$6.63
11057A
BRACKET,DC SOCKET
11057-1249
$1.17
14092
COVER,DC SOCKET
14092-0214
$6.57
14093
COVER,METER
14093-0644
$125.41
39137
STAY-COMP,UPP COWL.
39137-0679
$221.17
39154
WINDSHIELD
39154-0426
$127.04
39156
PAD,13X240X16
39156-2297
$7.78
39156A
PAD,20X290X20
39156-2357
$15.92
39156B
PAD,10X35X4
39156-2380
$0.63
53065
COVER SEAT,LH
53065-0042
$56.32
53065A
COVER SEAT,RH
53065-0043
$56.32
55028
COWLING,UPP,P.RED
55028-0893-234
$365.01
55028A
COWLING,UPP,M.C.GRAY
55028-0893-51A
$365.01
56001
MIRROR-ASSY,LH
56001-0378
$105.96
56001A
MIRROR-ASSY,RH
56001-0379
$105.96
92015
NUT,WELL,5MM
92015-1757
$7.29
92026
SPACER,10.5X20X6.5
92026-0835
$3.44
92039
RIVET
92039-0060
$3.39
92071
GROMMET,20X24X7.5
92071-0766
$1.41
92154
BOLT,SOCKET,5X16
92154-0209
$2.75
92154A
BOLT,SOCKET,5X20
92154-0210
$2.12
92154B
BOLT,SOCKET,5X12
92154-1421
$0.95
92154C
BOLT,SOCKET,6X25
92154-2806
$2.44
92154D
BOLT-FLANGED,10X25
92154-4058
$3.57
92154E
BOLT,FLANGED,10X30
92154-4393
$2.20
92160
DAMPER,10X20X12
92160-1167
$4.69
92161
DAMPER
92161-1467
$1.97
92161A
DAMPER
92161-1531
$3.02
92161B
DAMPER,10X28X5
92161-2107
$2.44
92172
SCREW,TAPPING,5X16
92172-0427
$2.55
92172A
SCREW,TRUSS HEAD,5X16
92172-1222
$0.64
92172B
SCREW,CROSS,4X8
92172-1227
$0.42
92200
WASHER,NYLONE,5.3X11.5X0.5
92200-0006
$1.86
92200A
WASHER,5.2X16X1.2
92200-0583
$1.94
92210
NUT
92210-0571
$3.52
92210A
NUT,LOCK,FLANGED,10MM
92210-1081
$12.35
130
BOLT-FLANGED,5X12
130BA0512
$2.22
130A
BOLT-FLANGED,5X14
130BA0514
$2.06
