2021 Kawasaki Ninja® 400 ABS Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2021 Kawasaki Ninja® 400 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

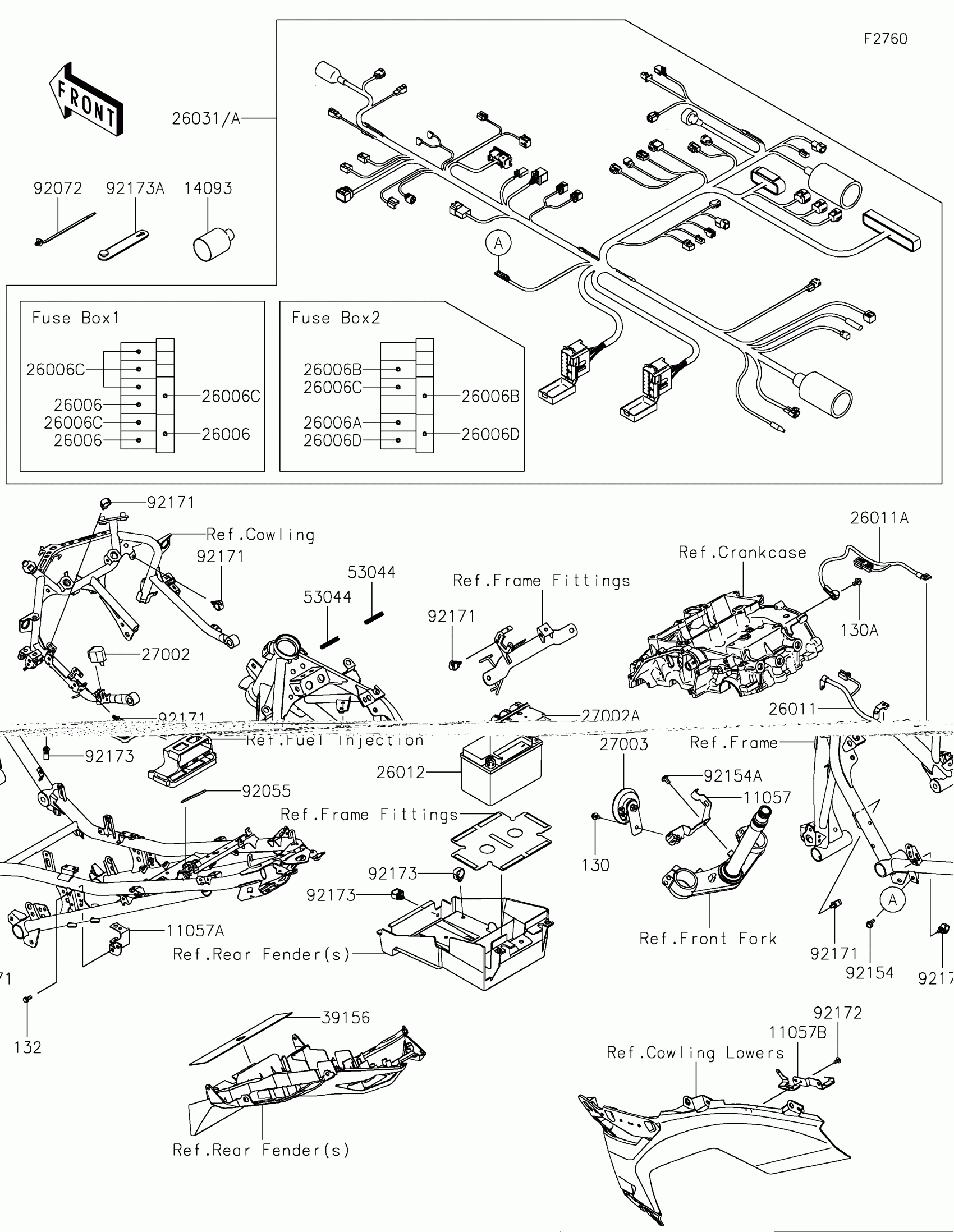

2021 Kawasaki Ninja® 400 ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,HORN

11057-1219

1
Out of stock

11057A

BRACKET,MAGNETIC SW.

11057-1225

1
Out of stock

11057B

BRACKET,FUSE BOX

11057-1771

1
Out of stock

14093

COVER,HARNESS

14093-0720

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,20A

26006-0032

1
Out of stock

26006B

FUSE,MINI BLADE,5A,TAN

26006-1077

1
Out of stock

26006C

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26006D

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-0974

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-0975

1
Out of stock

26012

BATTERY,FTX9-BS,12V 8AH

26012-0849

1
Out of stock

26031

HARNESS,MAIN

26031-2867

1
Out of stock

26031A

HARNESS,MAIN

26031-2899

1
Out of stock

27002

RELAY-ASSY,TURN SIGNAL

27002-0031

1
Out of stock

27002A

RELAY-ASSY

27002-0050

1
Out of stock

27003

HORN

27003-0111

1
Out of stock

39156

PAD,60X250X1

39156-2219

1
Out of stock

53044

TRIM

53044-0580

1

$4.53

In stock

92055

RING-O,50MM

92055-0954

1
Out of stock

92072

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92154

BOLT,FLANGED,6X16

92154-0551

1
Out of stock

92154A

BOLT,SOCKET,6X12

92154-2355

1
Out of stock

92171

CLAMP,13MM DIA.

92171-1415

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92173

CLAMP,HOLDER CLIP

92173-0868

1
Out of stock

92173A

CLAMP

92173-1526

1
Out of stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

130A

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

132

1

$1.12

In stock
