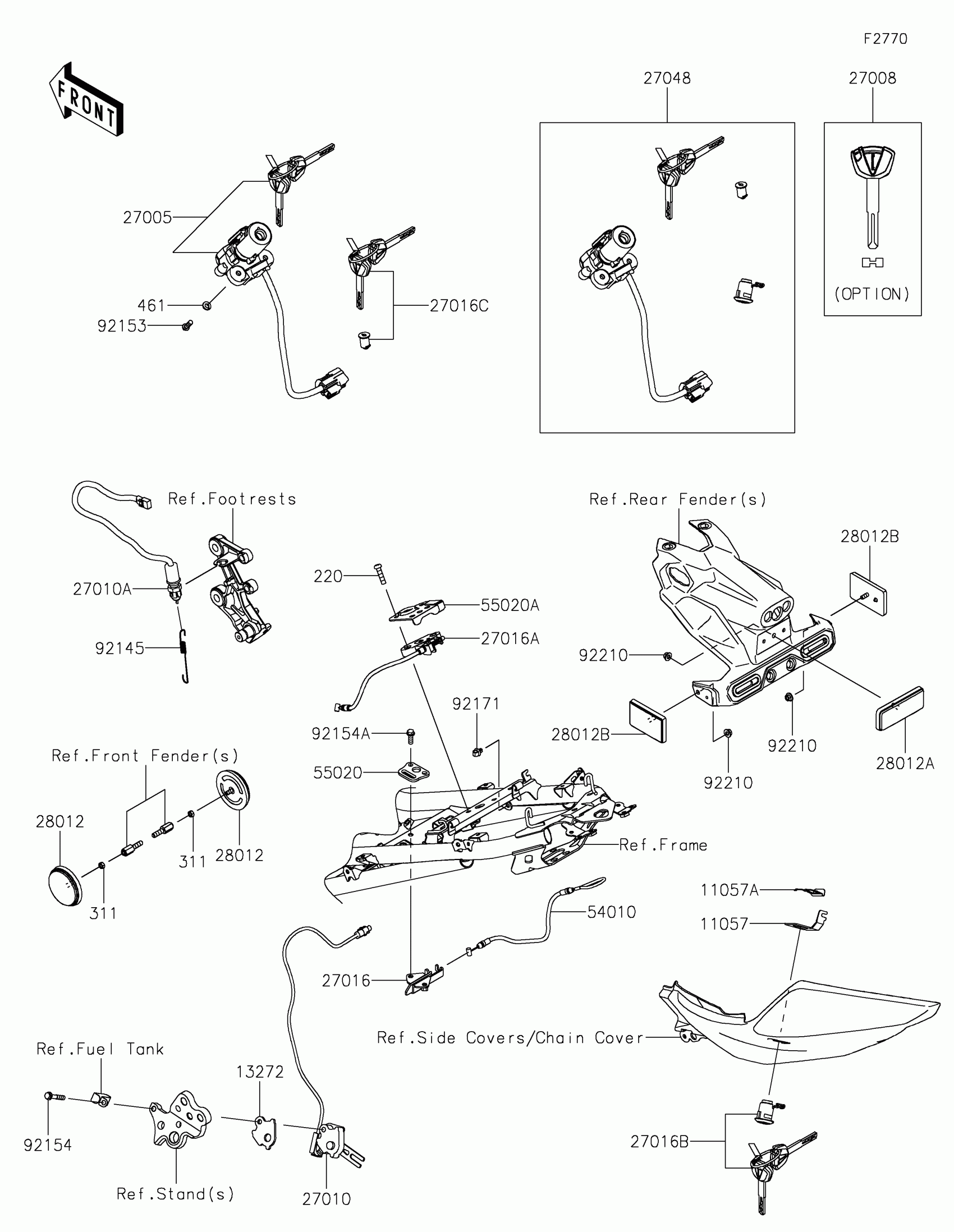

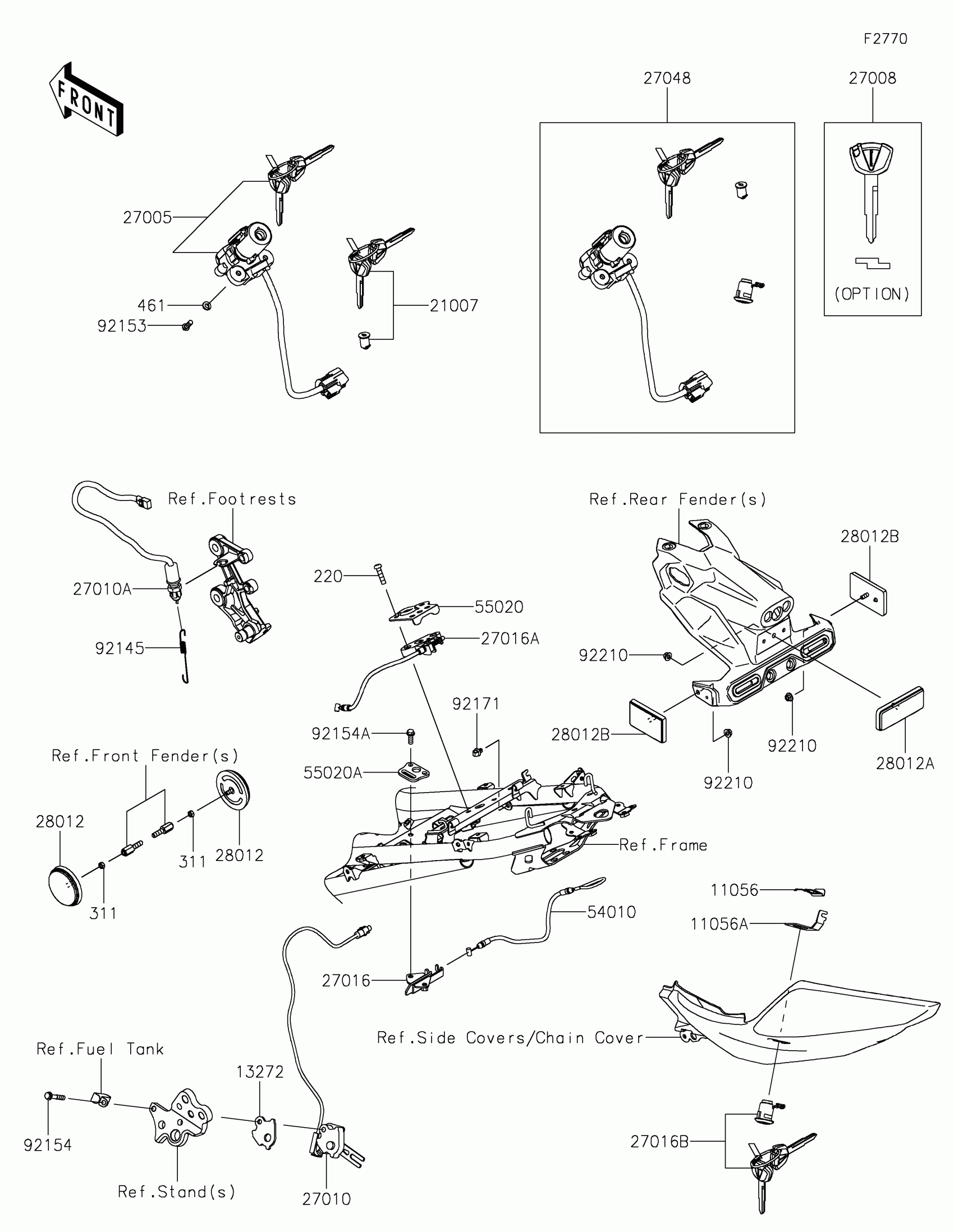

Kawasaki NINJA® 400 ABS Ignition Switch/Locks/Reflectors Diagram

Description

Price

11056

BRACKET,CLASP

11056-0238

$4.53

11056A

BRACKET,SEAT LOCK

11056-2119

$3.93

13272

PLATE

13272-1330

$2.82

21007

ROTOR,LOCK,TANK CAP

21007-5077

$126.11

27005

SWITCH-ASSY-IGNITION

27005-0635

$186.63

27008

KEY-LOCK,BLANK

27008-0596

$17.69

27010

SWITCH,SIDE STAND

27010-0845

$120.25

27010A

SWITCH,STOP

27010-0863

$29.63

27016

LOCK-ASSY,SEAT STRIKER

27016-0008

$14.14

27016A

LOCK-ASSY,SEAT STRIKER

27016-0025

$25.42

27016B

LOCK-ASSY,SEAT

27016-5386

$92.11

27048

SWITCH-ASSY

27048-5144

$428.87

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$19.59

28012A

REFLECTOR-REFLEX

28012-1077

$21.76

28012B

REFLECTOR-REFLEX

28012-1088

$18.15

54010

CABLE

54010-0621

$10.00

55020

GUARD

55020-2193

$3.17

55020A

GUARD,SEAT STRIKER

55020-2246

$9.81

92145

SPRING,BRAKE LAMP SWITCH

92145-0683

$2.79

92153

BOLT,TORX,6X16

92153-0967

$1.85

92154

BOLT,FLANGED,6X35

92154-1009

$2.68

92154A

BOLT,FLANGED-SMALL,6X16,TB2468

92154-3869

Unavailable

92171

CLAMP

92171-0939

$3.93

92210

NUT,FLANGED,5MM

92210-0007

$1.90

220

SCREW-PAN-CROS,6X25

220AC0625

$1.10

311

NUT-HEX,5MM

311AB0500

$0.46

461

WASHER-SPRING,6MM

461DA0600

$0.66
