2014 Kawasaki Ninja® 300 Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

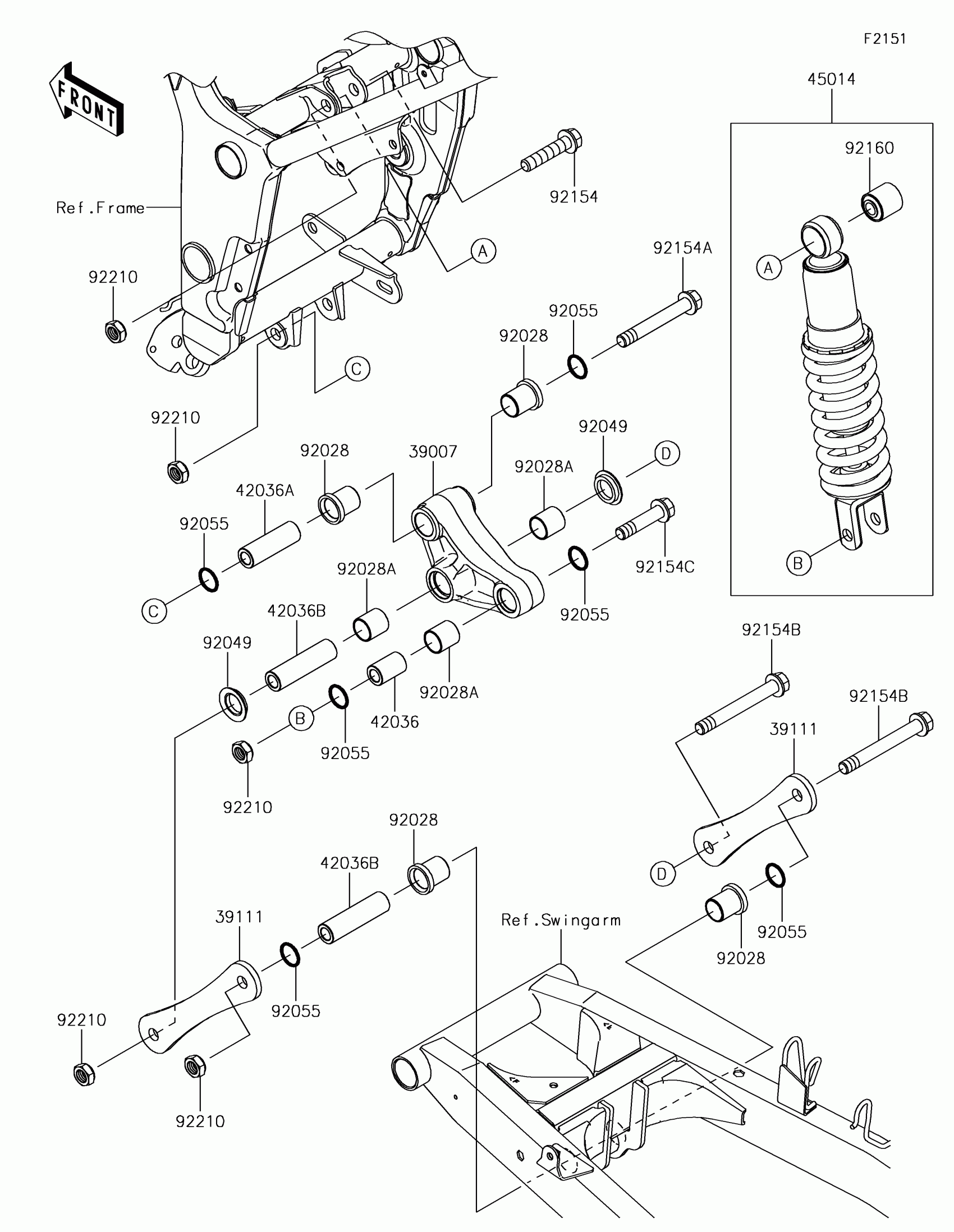

2014 Kawasaki Ninja® 300 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

39007

ARM-SUSP,UNI TRAK

39007-0355

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-0076

1
Out of stock

42036

SLEEVE,12.1X20X32

42036-1077

1
Out of stock

42036A

SLEEVE,ARM,FR

42036-1078

1
Out of stock

42036B

SLEEVE,12.1X20X74

42036-1102

1
Out of stock

45014A

SHOCKABSORBER,BLACK+BLACK

45014-0438-37S

1
Out of stock

92028

BUSHING

92028-1597

1
Out of stock

92028A

BUSHING

92028-1598

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92055

RING-O,19.8X2.2

92055-0732

1
Out of stock

92154

BOLT,FLANGED,12X55

92154-0362

1
Out of stock

92154A

BOLT,FLANGED,12X86

92154-0940

1
Out of stock

92154B

BOLT,FLANGED,12X98

92154-0941

1
Out of stock

92154C

BOLT,FLANGED,12X52

92154-0942

1
Out of stock

92160

DAMPER,SHOCKABSORBER

92160-1161

1
Out of stock

92210

NUT,LOCK,12MM

92210-1247

1
Out of stock
