2014 Kawasaki Ninja® 300 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

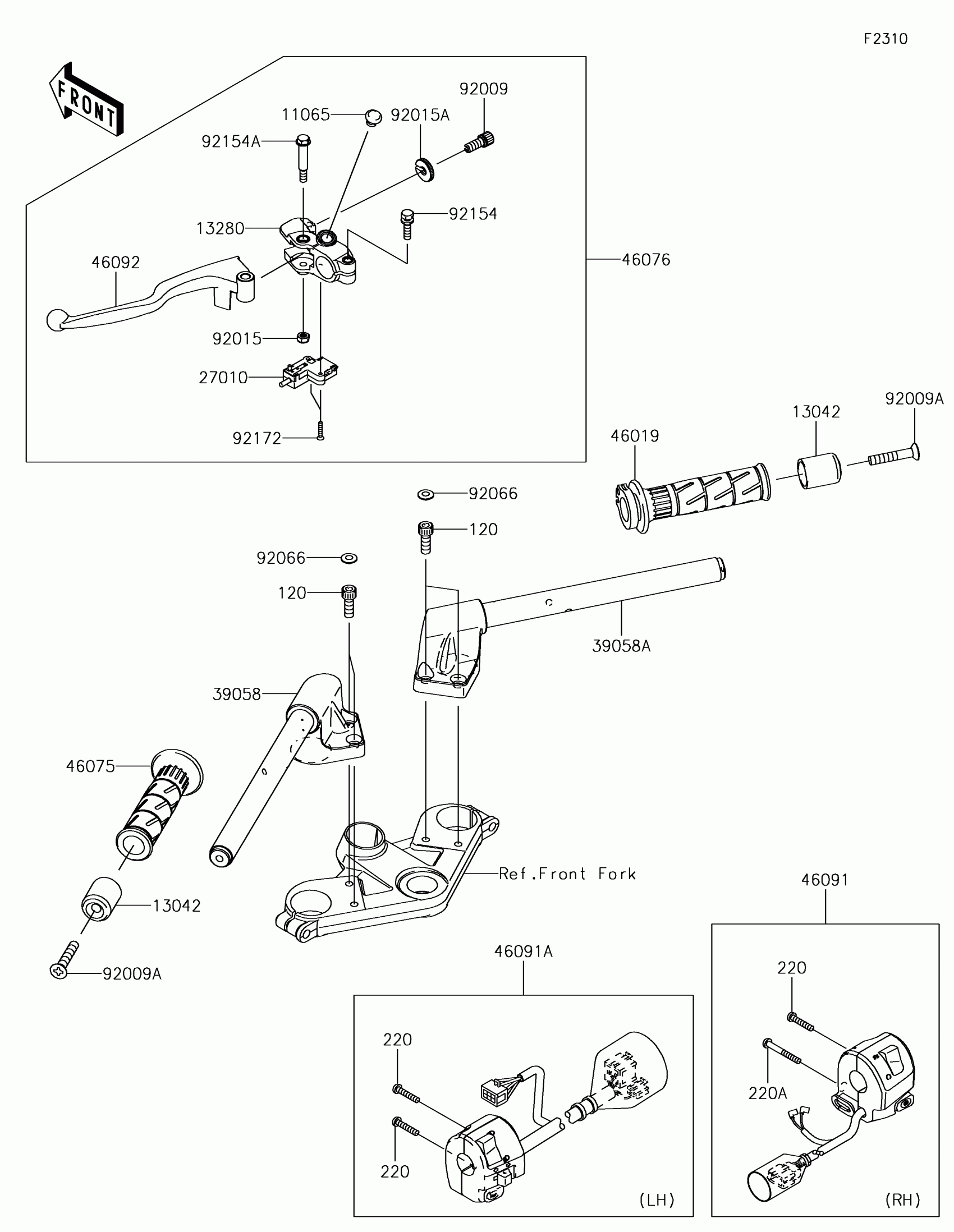

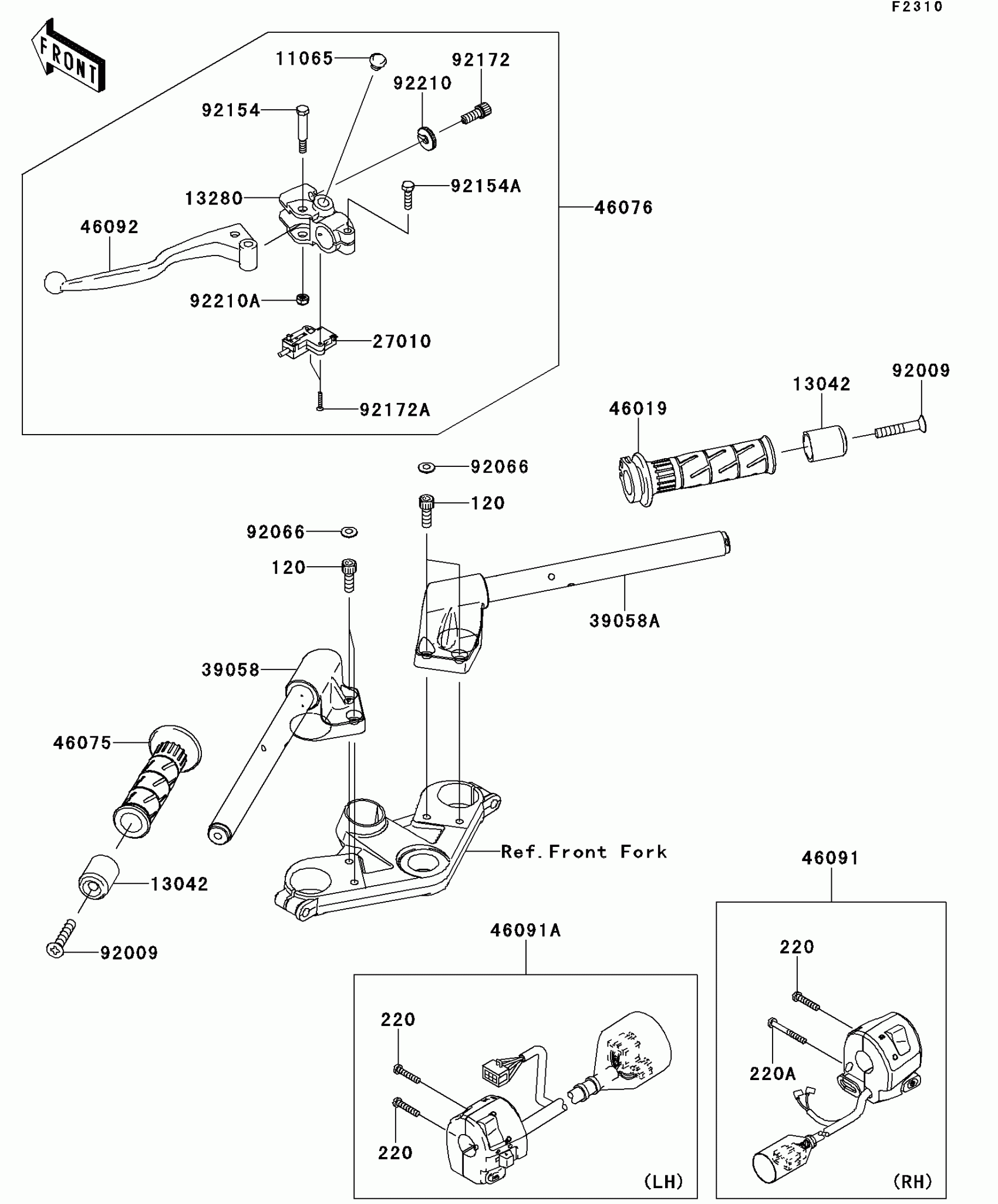

2014 Kawasaki Ninja® 300 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,DUMMY

11065-0218

1

$4.44

In stock

13042

WEIGHT,HANDLE

13042-0032

1

$26.18

In stock

13280

HOLDER,CLUTCH LEVER

13280-0295

1

$38.22

In stock

27010

SWITCH,CLUTCH

27010-0729

1

$30.28

In stock

39058

HANDLE-COMP,LH,F.S.BLACK

39058-0007-18R

1

$120.38

In stock

39058A

HANDLE-COMP,RH,F.S.BLACK

39058-0008-18R

1

$117.55

In stock

46019

GRIP-ASSY,THROTTLE

46019-0060

1

$29.71

In stock

46075

GRIP,HANDLE,LH

46075-0564

1

$18.54

In stock

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0087

1
Out of stock

46091

1

$146.72

In stock

46091A

1

$204.89

In stock

46092

LEVER-GRIP,CLUTCH

46092-0043

1
Out of stock

92009

SCREW,8X45

92009-1257

1
Out of stock

92066

PLUG

92066-1216

1

$3.69

In stock

92154

BOLT,CLUTCH LEVER

92154-0066

1

$3.11

In stock

92154A

BOLT

92154-0067

1

$1.81

In stock

92172

1

$8.46

In stock

92172A

SCREW,3X16

92172-0788

1

$1.51

In stock

92210

NUT,CABLE ADJUST,LOCK,8MM

92210-0479

1
Out of stock

92210A

NUT,LOCK,6MM

92210-0480

1
Out of stock

120

BOLT-SOCKET,8X22

120CB0822

1

$2.29

In stock

220

1

$2.92

In stock

220A

1

$1.73

In stock
