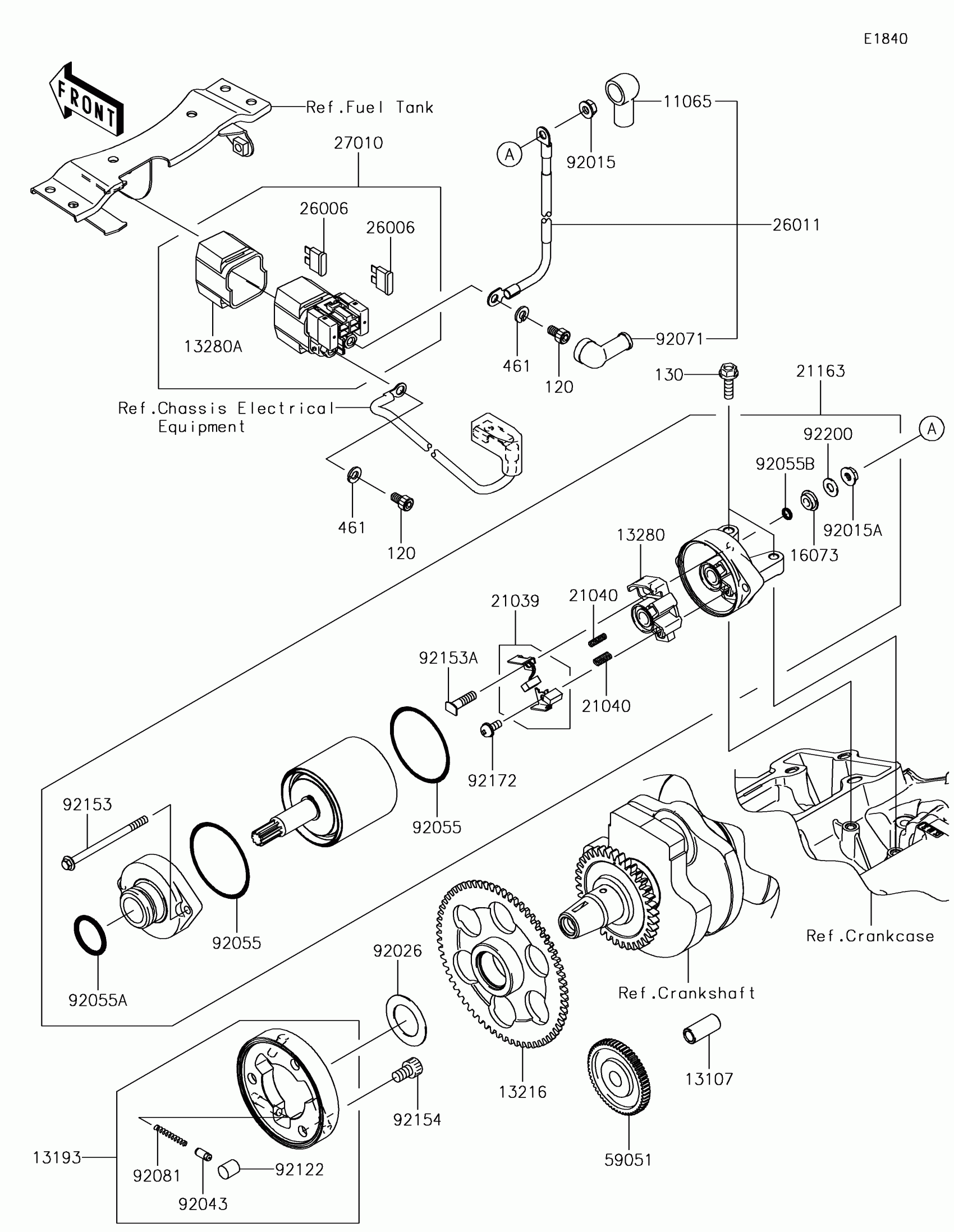

Kawasaki Ninja® 300 Starter Motor Diagram

#

Description
Price

11065

CAP

11065-0213

$3.93

13107

SHAFT,7.8X12X26.5

13107-0743

$12.32

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$116.39

13280

HOLDER

13280-0261

$16.72

13280A

HOLDER

13280-0301

$14.08

16073

INSULATOR

16073-0053

$11.93

16085

GEAR,ONEWAY CLUTCH,65T

16085-1166

Unavailable

21039

BRUSH,CARBON SET

21039-0005

$68.25

21040

SPRING-BRUSH

21040-0003

$9.79

21163

STARTER-ELECTRIC

21163-0717

$497.28

26006

FUSE,BLADE,30A,GREEN

26006-1006

$4.96

26011

WIRE-LEAD,STARTER

26011-0808

$72.40

27010

SWITCH,MAGNETIC

27010-0099

$135.59

59051

GEAR-SPUR,IDLER

59051-0722

$120.15

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92026

SPACER,25.2X40X1.0

92026-0153

$7.50

92043

PIN

92043-132

$6.22

92055

RING-O

92055-0136

$7.75

92055A

RING-O

92055-1276

$9.91

92055B

RING-O,4.5X2.0

92055-1370

$4.69

92071

GROMMET

92071-0705

$6.89

92081

SPRING,COIL

92081-159

$3.89

92122

ROLLER

92122-006

$6.22

92153

BOLT,SET

92153-1851

$7.68

92153A

BOLT

92153-1866

$4.65

92154

BOLT,SOCKET,8X13

92154-0175

$2.12

92172

SCREW

92172-0334

$4.65

92200

WASHER

92200-0386

$4.65

120

BOLT-SOCKET,6X10

120CB0610

$2.49

130

BOLT-FLANGED,6X20

130BA0620

$1.74

461

WASHER-SPRING,6MM

461DA0600

$0.71
