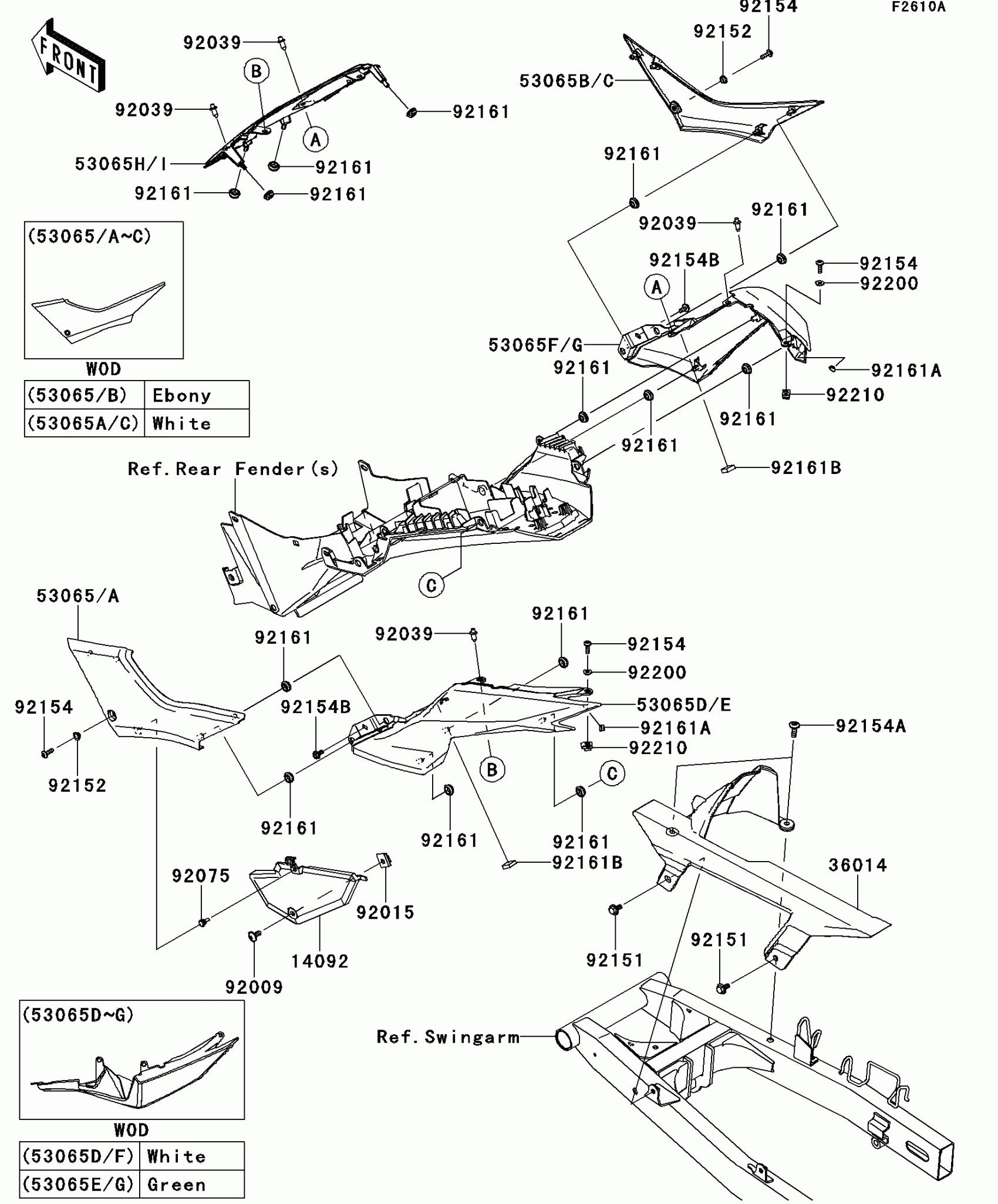

Kawasaki NINJA® 300 SE Side Covers/Chain Cover(AEFA) Diagram

Description

Price

14092

COVER,FILTER CAP

14092-0954

$33.22

36014

CASE-CHAIN

36014-0555

$61.36

53065

COVER SEAT,SIDE,LH,EBONY

53065-0026-H8

$84.31

53065A

COVER SEAT,SIDE,LH,P.S.WHITE

53065-0026-25Y

$83.54

53065B

COVER SEAT,SIDE,RH,EBONY

53065-0027-H8

$84.31

53065C

COVER SEAT,SIDE,RH,P.S.WHITE

53065-0027-25Y

$83.54

53065D

COVER SEAT,TAIL,LH,P.S.WHITE

53065-0060-25Y

$94.70

53065E

COVER SEAT,TAIL,LH,L.GREEN

53065-0060-777

$94.70

53065F

COVER SEAT,TAIL,RH,P.S.WHITE

53065-0061-25Y

$94.70

53065G

COVER SEAT,TAIL,RH,L.GREEN

53065-0061-777

$94.70

53065H

COVER SEAT,CNT,EBONY

53065-0062-H8

$54.07

53065I

COVER SEAT,CNT,P.S.WHITE

53065-0062-25Y

$54.07

92009

SCREW,6X14

92009-1662

$3.92

92015

NUT,CLAMP,6MM

92015-1531

$5.52

92039

RIVET

92039-0709

$2.67

92075

DAMPER,6X10X15

92075-1808

$1.39

92151

BOLT,FLANGED,6X13

92151-1703

$3.94

92152

COLLAR,5.8X8.2X4.7

92152-1697

$2.26

92154

BOLT,SOCKET,5X16

92154-0182

$2.55

92154A

BOLT,SOCKET,6X20

92154-0918

$6.26

92154B

BOLT,FLANGED,5X12

92154-1003

$1.19

92161

DAMPER

92161-0631

$7.37

92161A

DAMPER

92161-1459

$1.19

92161B

DAMPER,15X15X5

92161-1522

$1.19

92200

WASHER,5.2X12X1.0

92200-0784

$0.85

92210

NUT,5MM

92210-0817

$1.97
