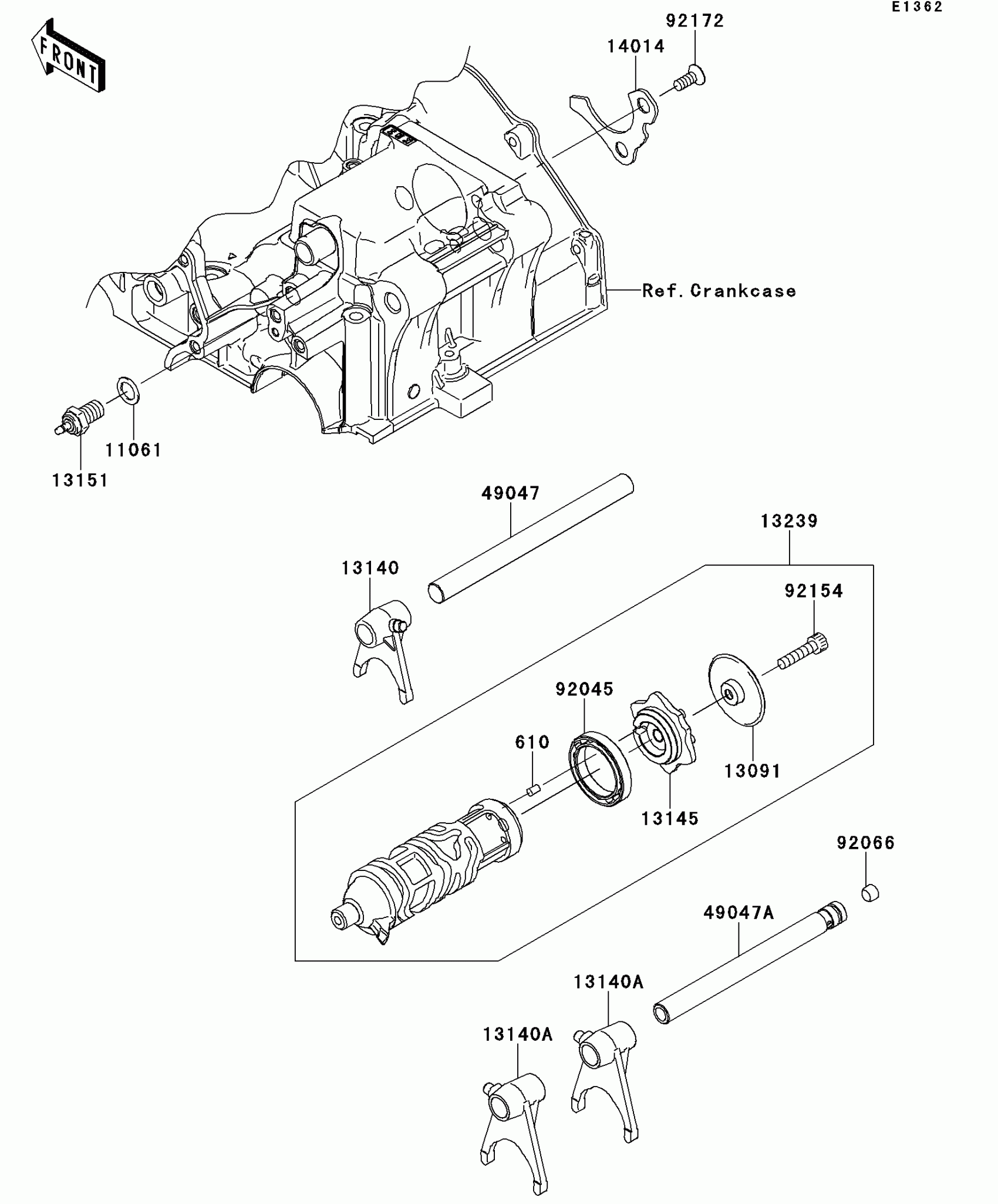

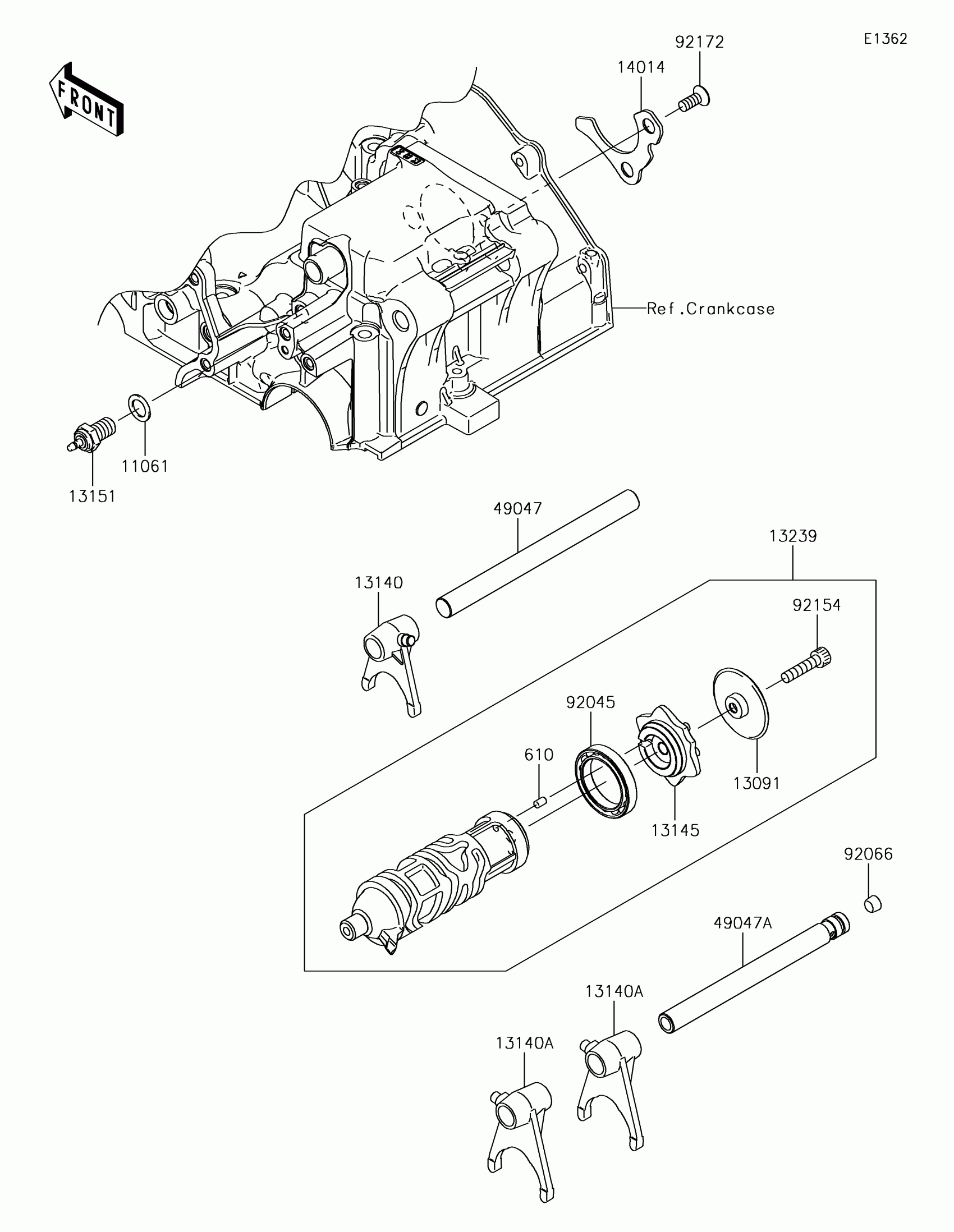

Kawasaki Ninja® 300 Gear Change Drum/Shift Fork(s) Diagram

Description

Price

11061

GASKET,10.5X16X1

11061-0373

$3.67

13091

HOLDER,CHANGE DRUM

13091-1464

$7.60

13140

FORK-SHIFT,IN

13140-1148

$84.71

13140A

FORK-SHIFT,OUT

13140-1149

$84.71

13145

CAM-CHANGE DRUM

13145-0556

$54.58

13151

SWITCH-COMP,NEUTRAL

13151-1102

Unavailable

13239

DRUM-ASSY-CHANGE

13239-0562

$182.88

14014

PLATE-POSITION

14014-0564

$5.98

49047

ROD-SHIFT,IN

49047-0625

$16.21

49047A

ROD-SHIFT,OUT

49047-0626

$18.31

92045

BEARING-BALL,6806

92045-1152

$45.82

92066

PLUG

92066-1246

$4.26

92154

BOLT,SOCKET,6X25

92154-0954

$2.67

92172

SCREW,6X15

92172-0812

$1.97

610

ROLLER,4X6

610A0406

$4.31
