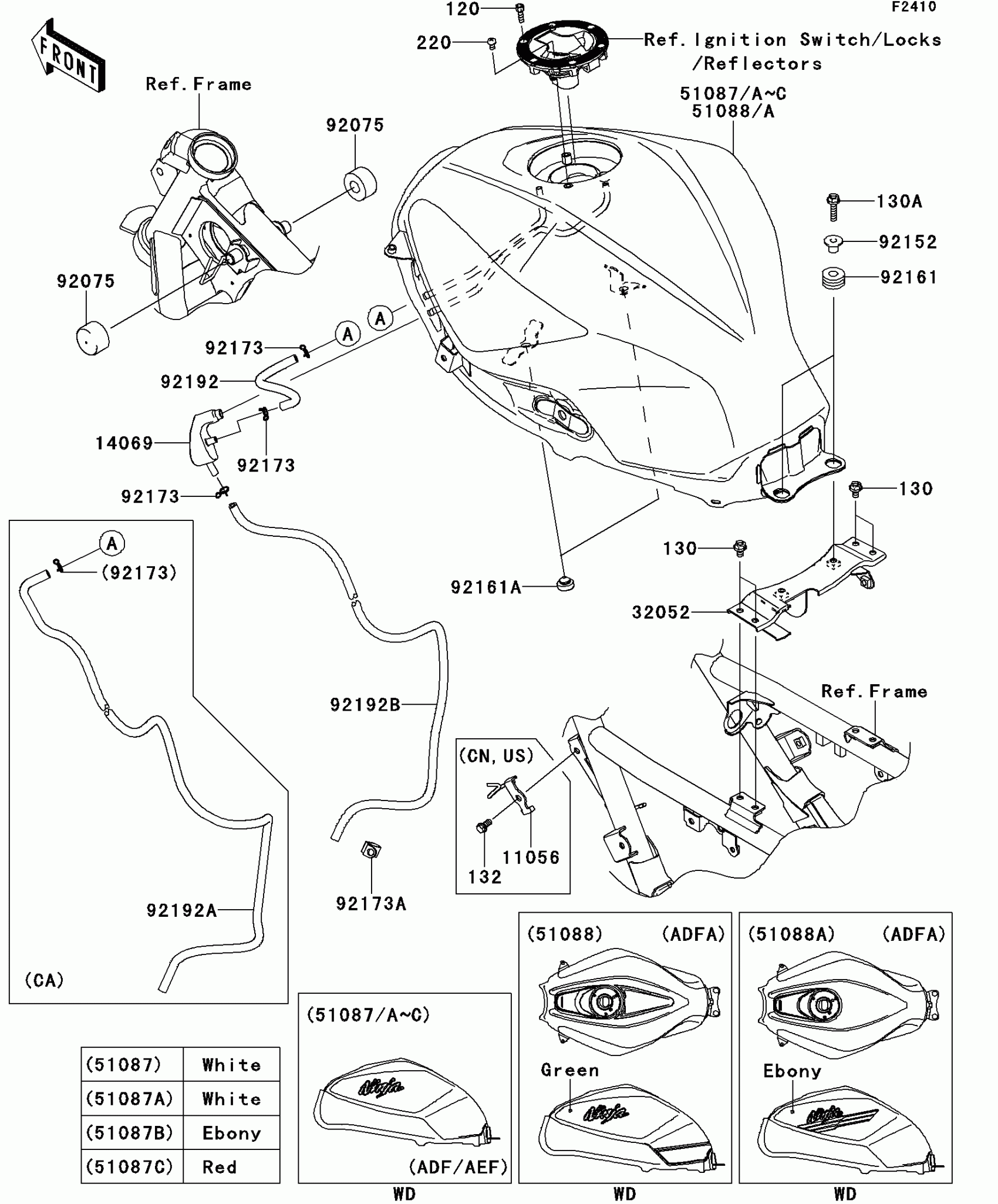

Kawasaki Ninja® 300 Fuel Tank(ADF-AEF) Diagram

Description

Price

11056

BRACKET,DRAIN TUBE

11056-1633

$5.24

14069

BREATHER

14069-0011

$11.88

32052

BRACKET-TANK,RR

32052-0718

$29.13

51087A

TANK-COMP-FUEL,P.S.WHITE

51087-5424-25Y

Unavailable

51087B

TANK-COMP-FUEL,EBONY

51087-5425-H8

$819.18

92075

DAMPER,FUEL TANK,FR

92075-1115

$6.57

92152

COLLAR,6.5X10X13.1

92152-0332

$5.65

92161

DAMPER,10X24X12

92161-0927

$6.00

92161A

DAMPER,9.5X18X6

92161-1473

$1.63

92173

CLAMP

92173-0049

$4.45

92173A

CLAMP

92173-0978

$5.65

92192

TUBE,FUEL

92192-0310

$4.45

92192B

TUBE,5X9X900

92192-1237

$16.48

120

BOLT-SOCKET,5X16

120CB0516

$0.70

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X25

130BA0625

$1.20

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

220

SCREW-PAN-CROS,5X8

220AB0508

$0.56
