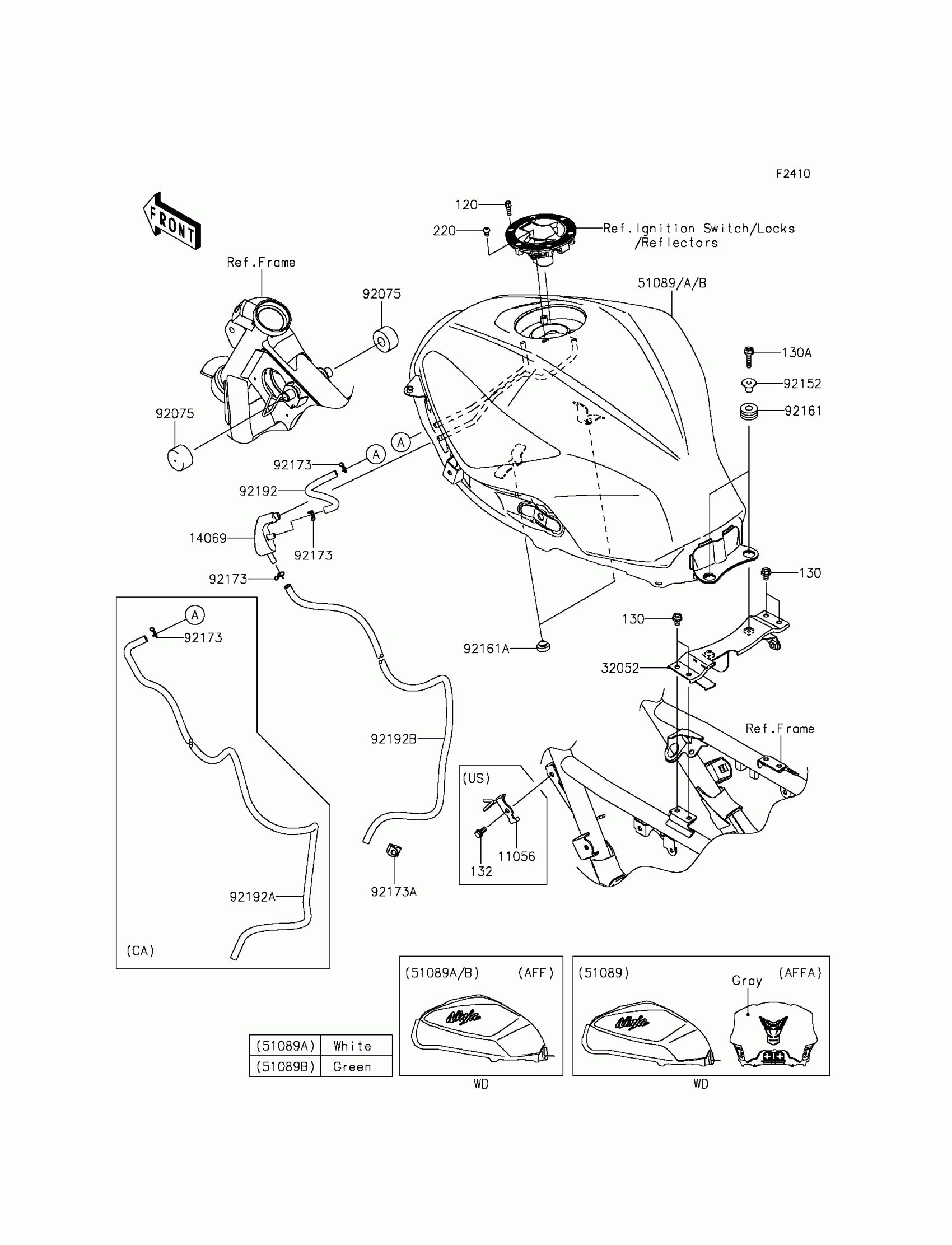

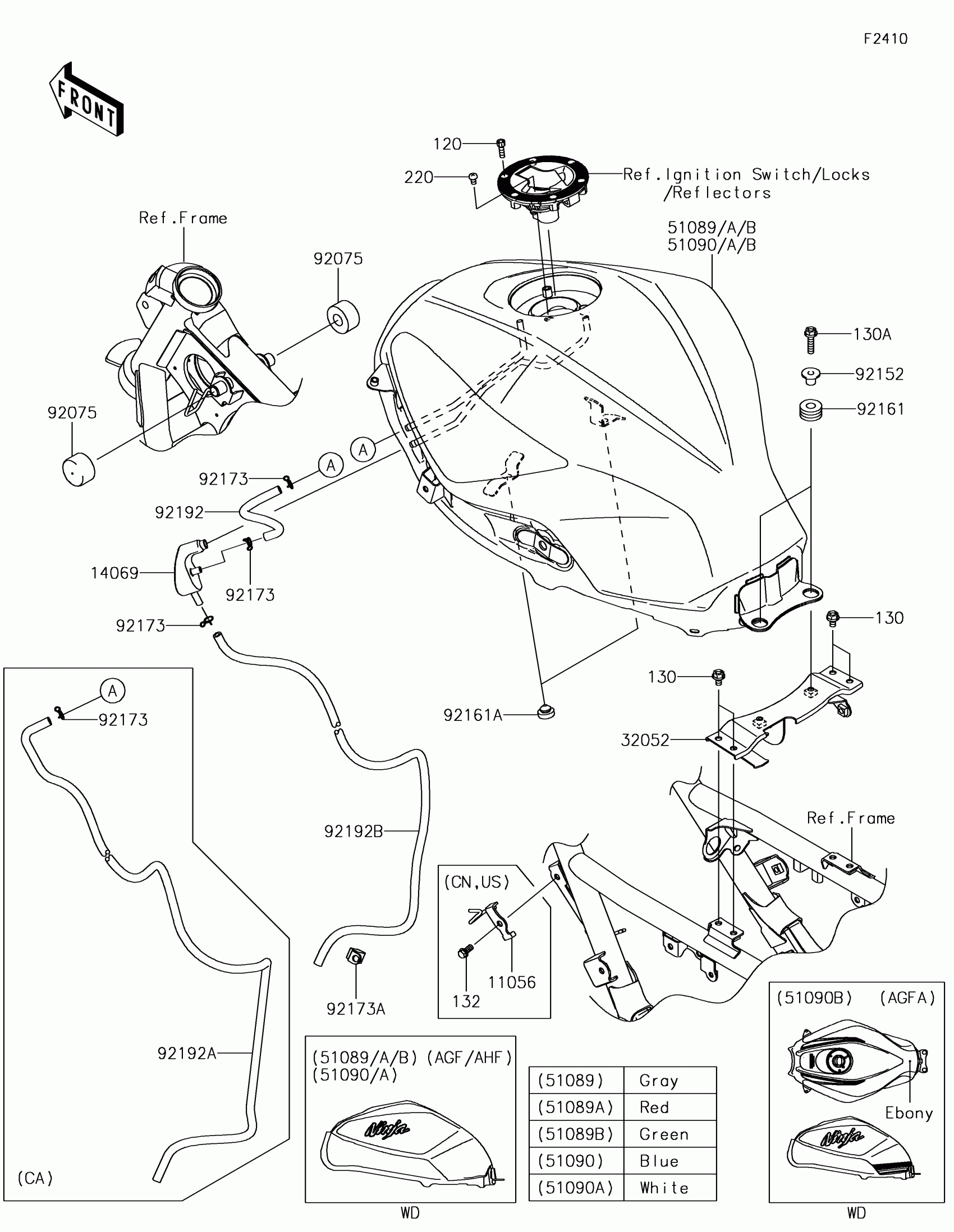

Kawasaki Ninja 300 Fuel Tank Diagram

Description

Price

120

BOLT-SOCKET,5X16

120CB0516

$0.70

130

BOLT-FLANGED,6X10

130BA0610

$1.20

130A

BOLT-FLANGED,6X25

130BA0625

$1.20

220

SCREW-PAN-CROS,5X8

220AB0508

$0.56

32052

BRACKET-TANK,RR

32052-0718

$29.13

51090

TANK-COMP-FUEL,C.P.BLUE

51090-5010-723

$1,029.71

51090A

TANK-COMP-FUEL,P.B.WHITE

51090-5012-54X

$1,029.71

92075

DAMPER,FUEL TANK,FR

92075-1115

$6.57

92152

COLLAR,6.5X10X13.1

92152-0332

$5.65

92161

DAMPER,10X24X12

92161-0927

$6.00

92161A

DAMPER,9.5X18X6

92161-1473

$1.63

92173A

CLAMP

92173-0978

$5.65

92192A

TUBE,DRAIN

92192-1096

$23.79
