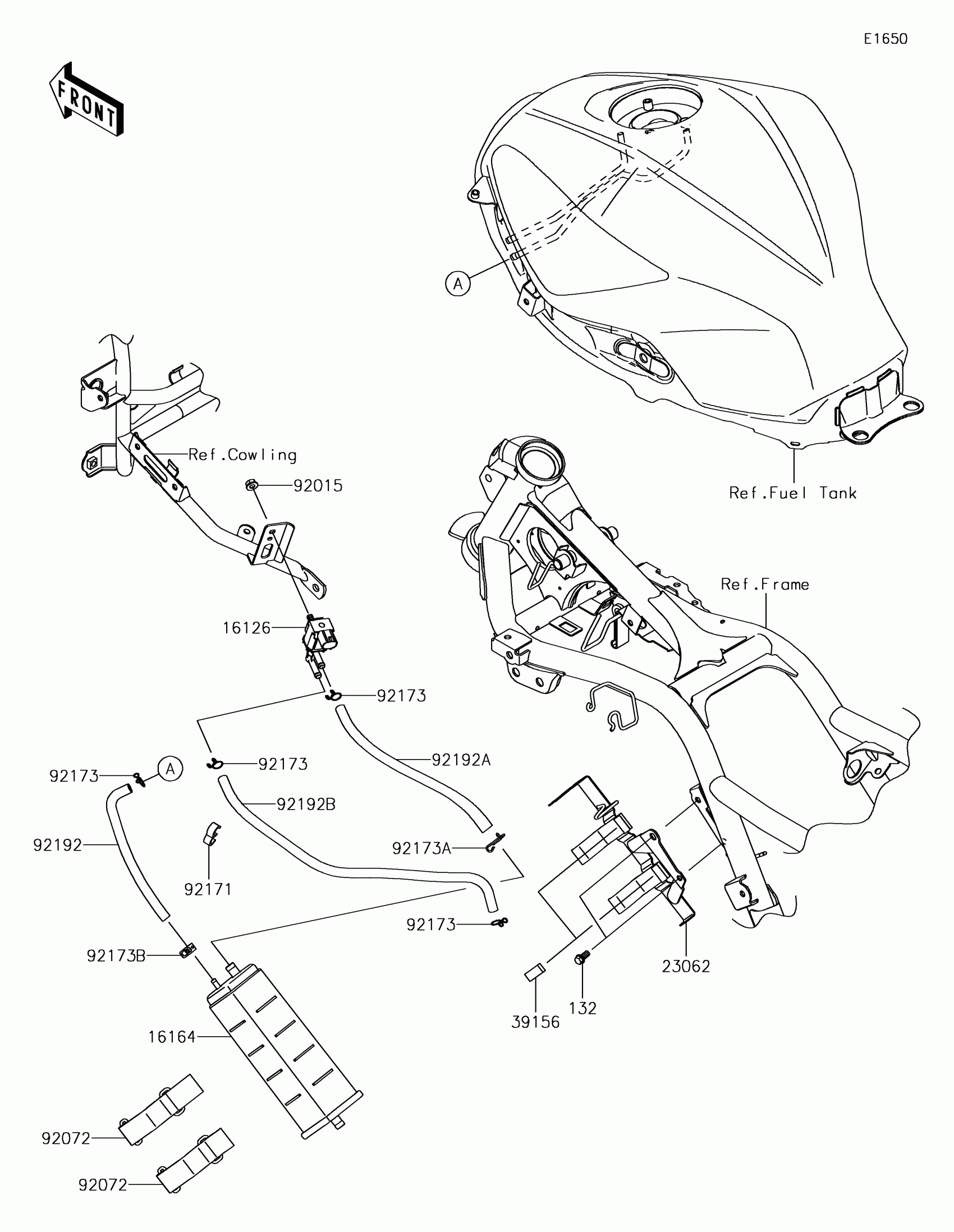

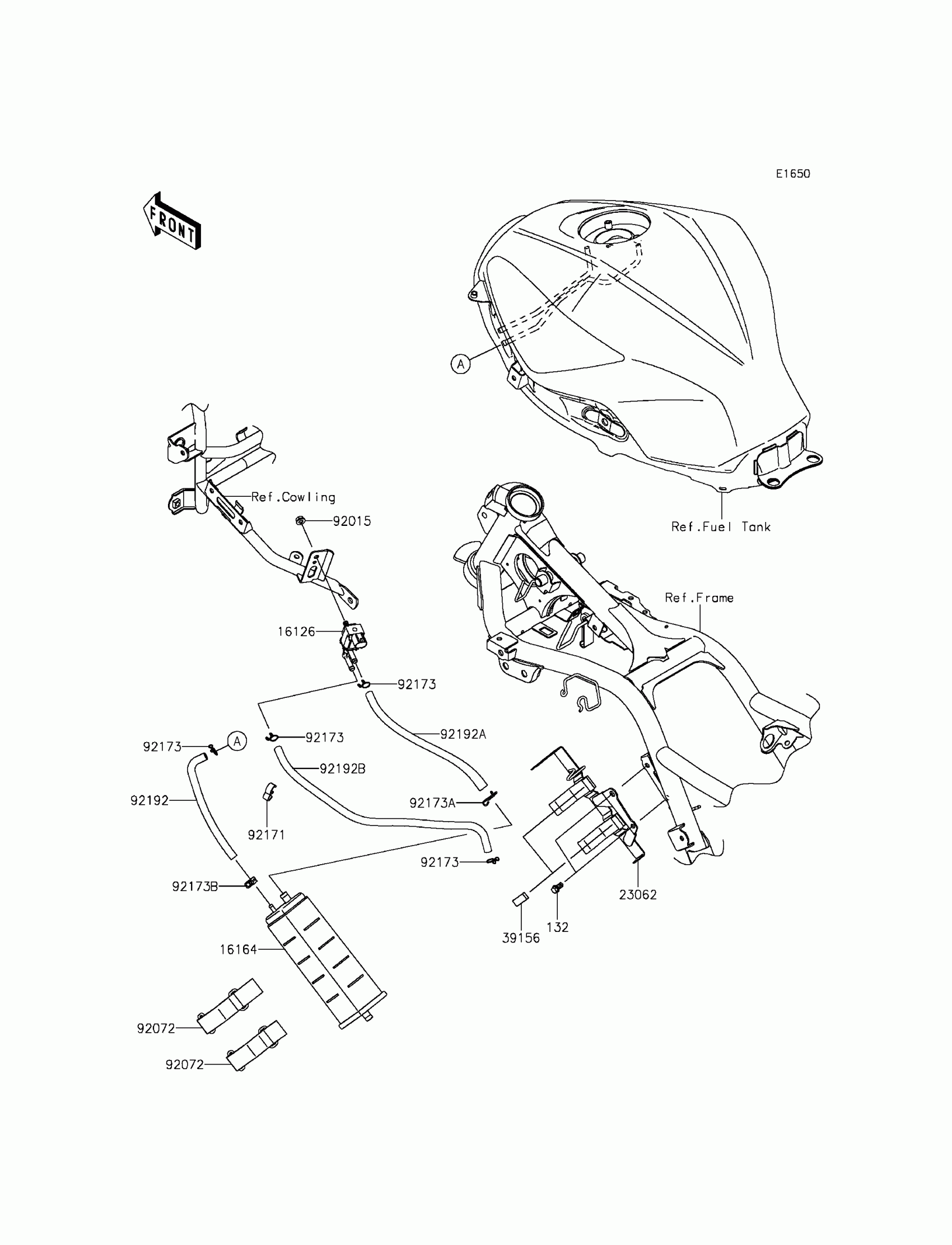

Kawasaki Ninja® 300 Fuel Evaporative System(CA) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$1.20

16126

VALVE,SOLENOID

16126-0705

$106.99

16164

CANISTER

16164-0009

$137.47

23062

BRACKET-COMP,CANISTER

23062-0742

$33.52

39156

PAD,10X30X4

39156-0927

$0.84

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92072

BAND,L=90

92072-0135

$18.06

92171

CLAMP

92171-1184

$2.46

92173

CLAMP

92173-0050

$6.61

92173A

CLAMP,14MM

92173-0192

$3.74

92173B

CLAMP

92173-1143

$3.72

92192

TUBE,TANK-CANISTER,BLUE

92192-1098

$34.42

92192A

TUBE,CANISTER-VALVE,GREEN

92192-1099

$39.69

92192B

TUBE,VALVE-THB,GREEN

92192-1101

$46.06
