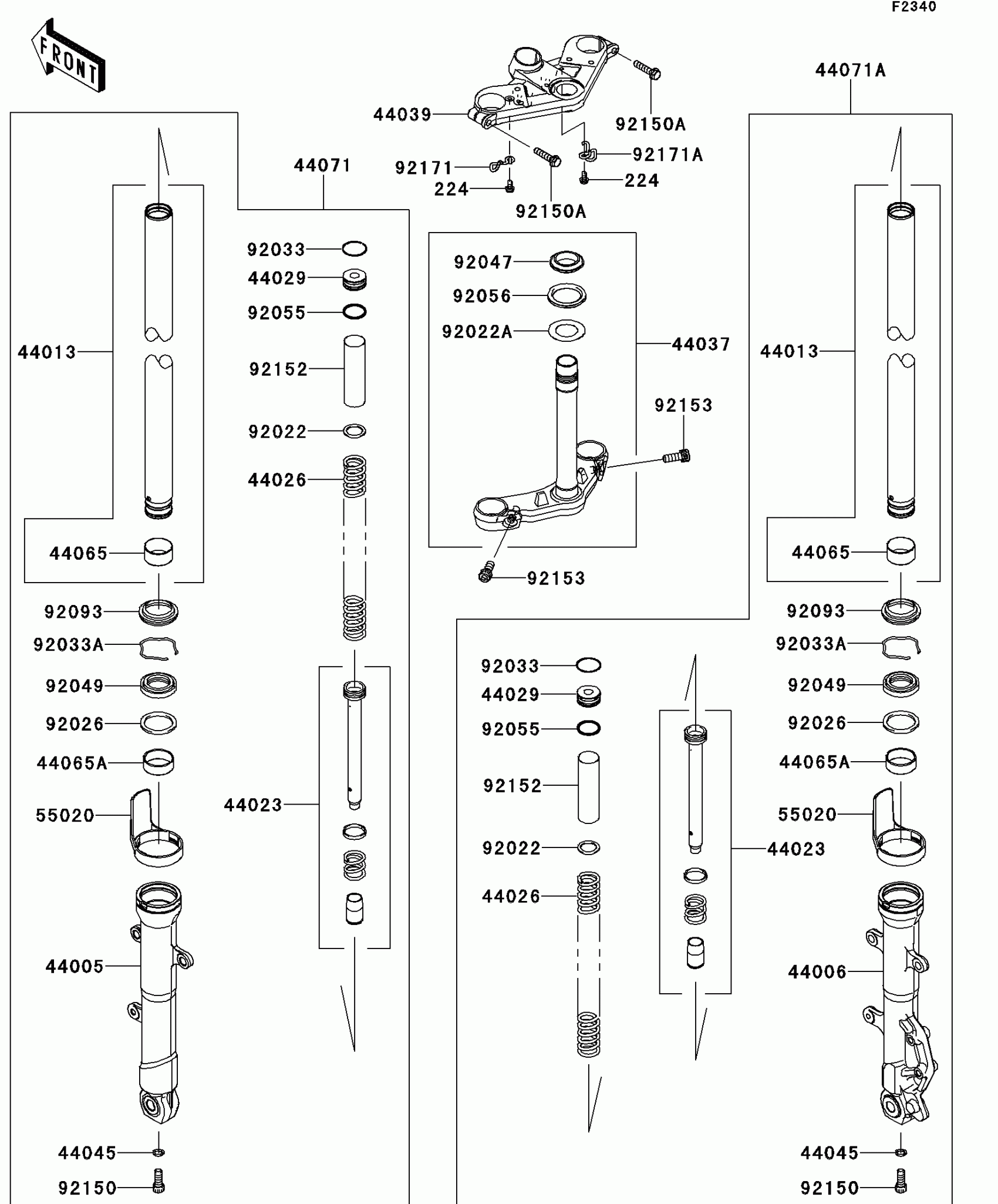

Kawasaki Ninja 300 Front Fork Diagram
#
Description
Price
224
SCREW-PAN-WP-CROS,6X12
224AB0612
$4.45
44005
PIPE-LEFT FORK OUTER,F.S.BLACK
44005-0102-18R
$397.45
44006
PIPE-RIGHT FORK OUTER,F.S.BLK
44006-0102-18R
$397.45
44013
PIPE-FORK INNER
44013-0248
$261.61
44023
CYLINDER-SET-FORK
44023-0123
$111.96
44026
SPRING-FRONT FORK
44026-0126
$39.80
44029
SEAT-FORK SPRING
44029-1127
$44.15
44037
HOLDER-FORK UNDER,F.BLACK
44037-0154-21
$266.92
44039
HOLDER-FORK UPPER,F.S.BLACK
44039-0056-18R
$268.79
44045
GASKET,FORK CYLINDER BOLT
44045-051
$6.16
44065
BUSHING-FRONT FORK
44065-0057
$12.18
44065A
BUSHING-FRONT FORK
44065-0058
$25.48
44071
DAMPER-ASSY,LH,F.S.BLACK
44071-1073-18R
$707.88
44071A
DAMPER-ASSY,RH,F.S.BLACK
44071-1074-18R
$701.32
55020
GUARD,INNER TUBE
55020-0929
$30.76
92022
WASHER
92022-1879
$5.00
92022A
WASHER,30.5X50X0.6
92022-231
$4.69
92026
SPACER,FORK
92026-1443
$8.58
92033
RING-SNAP
92033-1236
$7.38
92033A
RING-SNAP
92033-1286
$8.03
92047
RACE,STEERING STEM BEARING
92047-012
$14.60
92049
SEAL-OIL
92049-0734
$21.20
92055
RING-O,FORK SPRING SEAT
92055-1384
$5.00
92056
SEAL-OIL,STEERING STEM
92056-003
$8.86
92093
SEAL,FORK OUTER
92093-1367
$21.57
92150
BOLT,SOCKET,8X18
92150-1432
$9.91
92150A
BOLT
92150-1610
$8.58
92152
COLLAR,SPG
92152-1957
$18.06
92153
BOLT,SOCKET,10X25
92153-0301
$3.26
92171
CLAMP,LH
92171-1857
$3.90
92171A
CLAMP,RH
92171-1947
$3.71
