Description

Price

11012

CAP

11012-1362

$8.79

11056

BRACKET

11056-1637

$4.10

11056A

BRACKET

11056-1638

$6.63

11061

GASKET,GENERATOR COVER

11061-0793

$17.14

11061A

GASKET,CLUTCH COVER

11061-0854

$30.14

14026

COVER-CHAIN

14026-0096

$120.60

14031

COVER-GENERATOR

14031-0562

$186.30

14032

COVER-CLUTCH

14032-0579

$191.73

14044

HOLDER-CABLE

14044-0049

$7.98

16115

CAP-OIL FILLER

16115-1068

$5.74

52005

GAUGE,OIL LEVEL

52005-1009

$18.40

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92049

SEAL-OIL

92049-1560

$9.28

92055

RING-O,31.5X2.6

92055-049

$4.31

92055A

RING-O,39.4X3.1

92055-0734

$1.97

92055B

RING-O,20X2

92055-1146

$8.58

92066

PLUG

92066-0748

$15.64

92153

BOLT,6X30

92153-0832

$3.90

92154

BOLT,FLANGED-SMALL,6X75

92154-0960

$3.02

92154A

BOLT,FLANGED,6X12

92154-1140

$2.32

92173

CLAMP,L=45

92173-0194

$5.69

132

BOLT-FLANGED-SMALL,6X25

132BB0625

$2.80

132A

BOLT-FLANGED-SMALL,6X45

132BB0645

$4.76

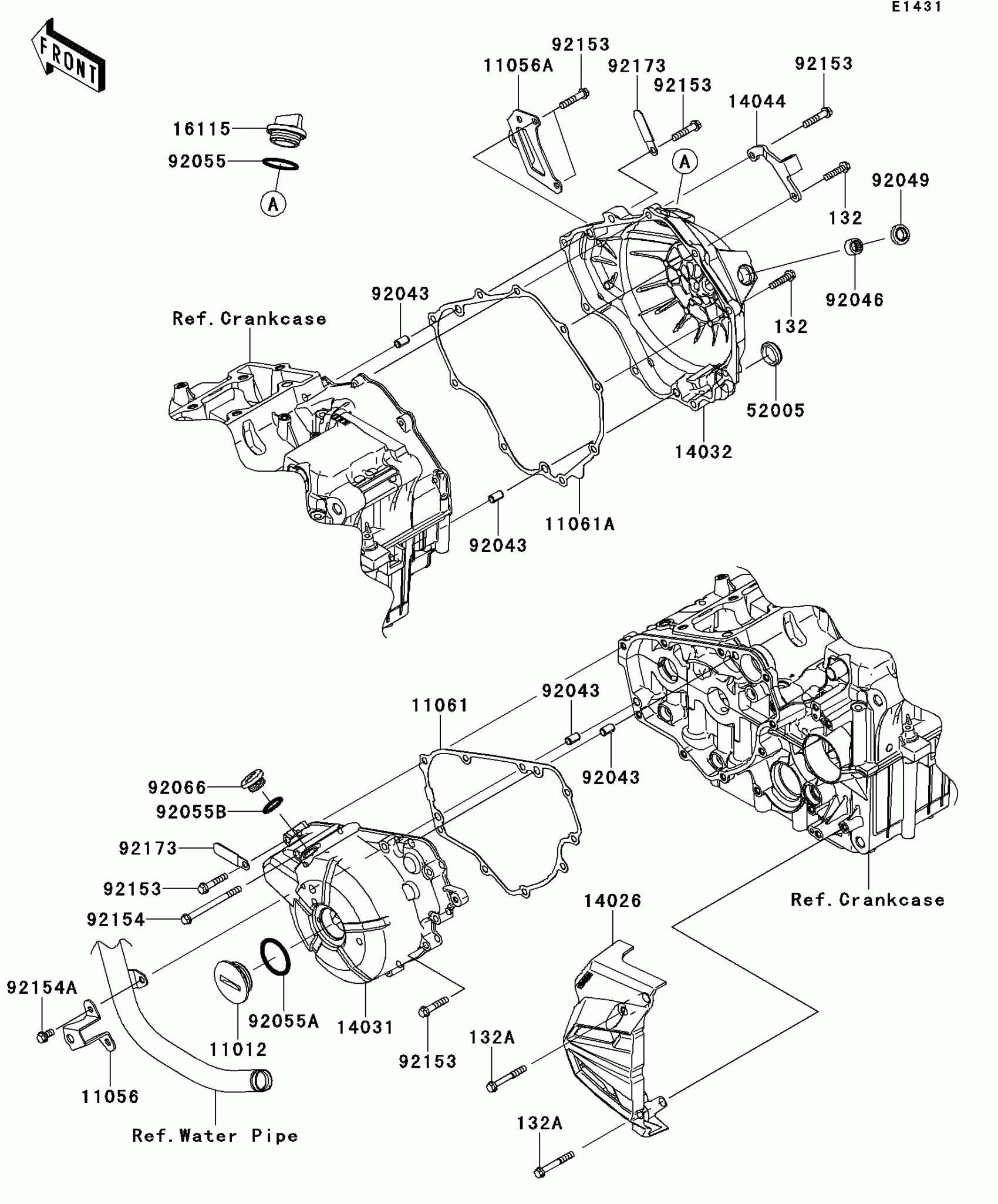

Kawasaki Ninja® 300 Engine Cover(s) Diagram

CAP

BRACKET

BRACKET

GASKET,GENERATOR COVER

GASKET,CLUTCH COVER

COVER-CHAIN

COVER-GENERATOR

COVER-CLUTCH

HOLDER-CABLE

CAP-OIL FILLER

GAUGE,OIL LEVEL

PIN,6.2X8X14

BEARING-NEEDLE,HK1210FM

SEAL-OIL

RING-O,31.5X2.6

RING-O,39.4X3.1

RING-O,20X2

PLUG

BOLT,6X30

BOLT,FLANGED-SMALL,6X75

BOLT,FLANGED,6X12

CLAMP,L=45

BOLT-FLANGED-SMALL,6X25

BOLT-FLANGED-SMALL,6X45
