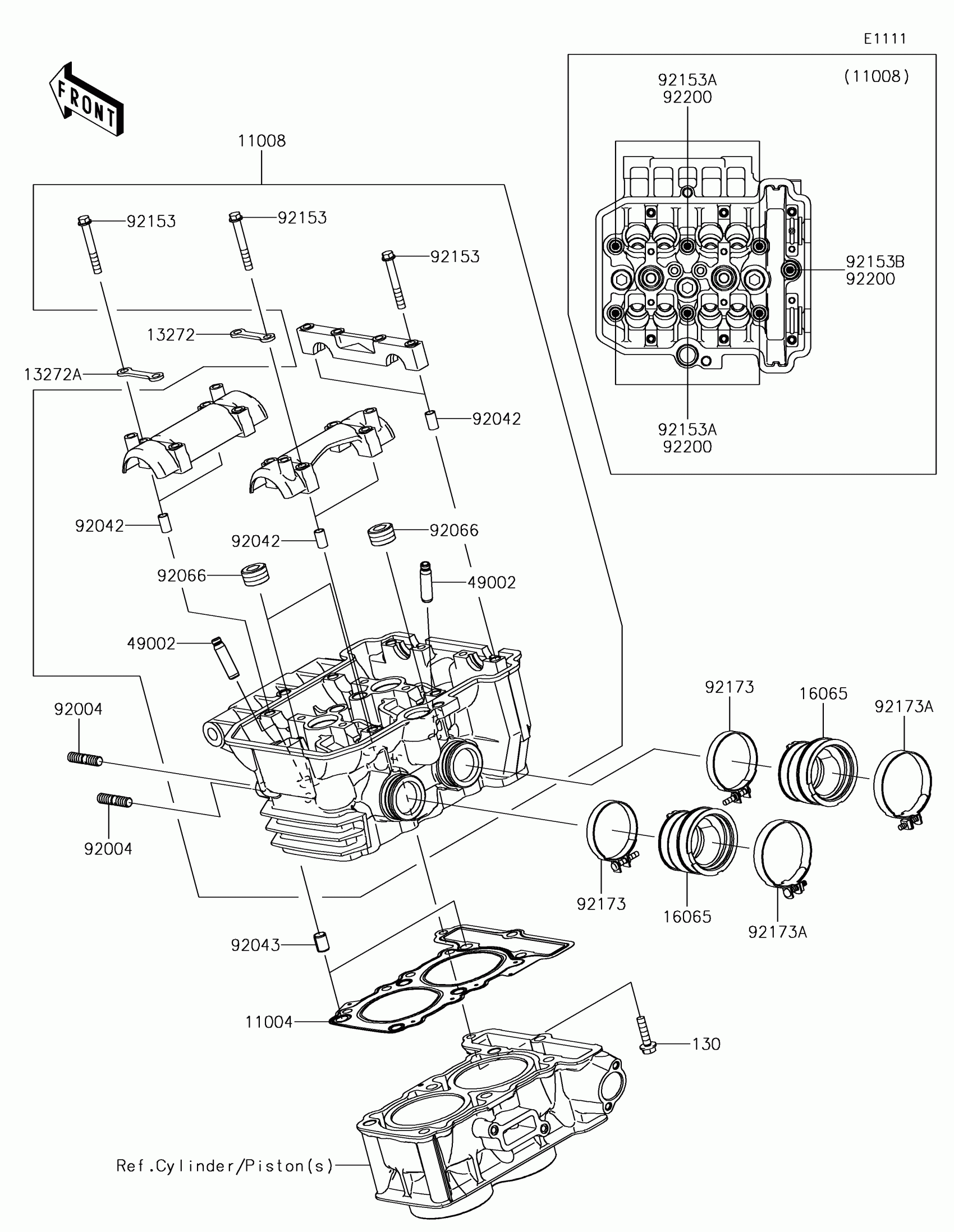

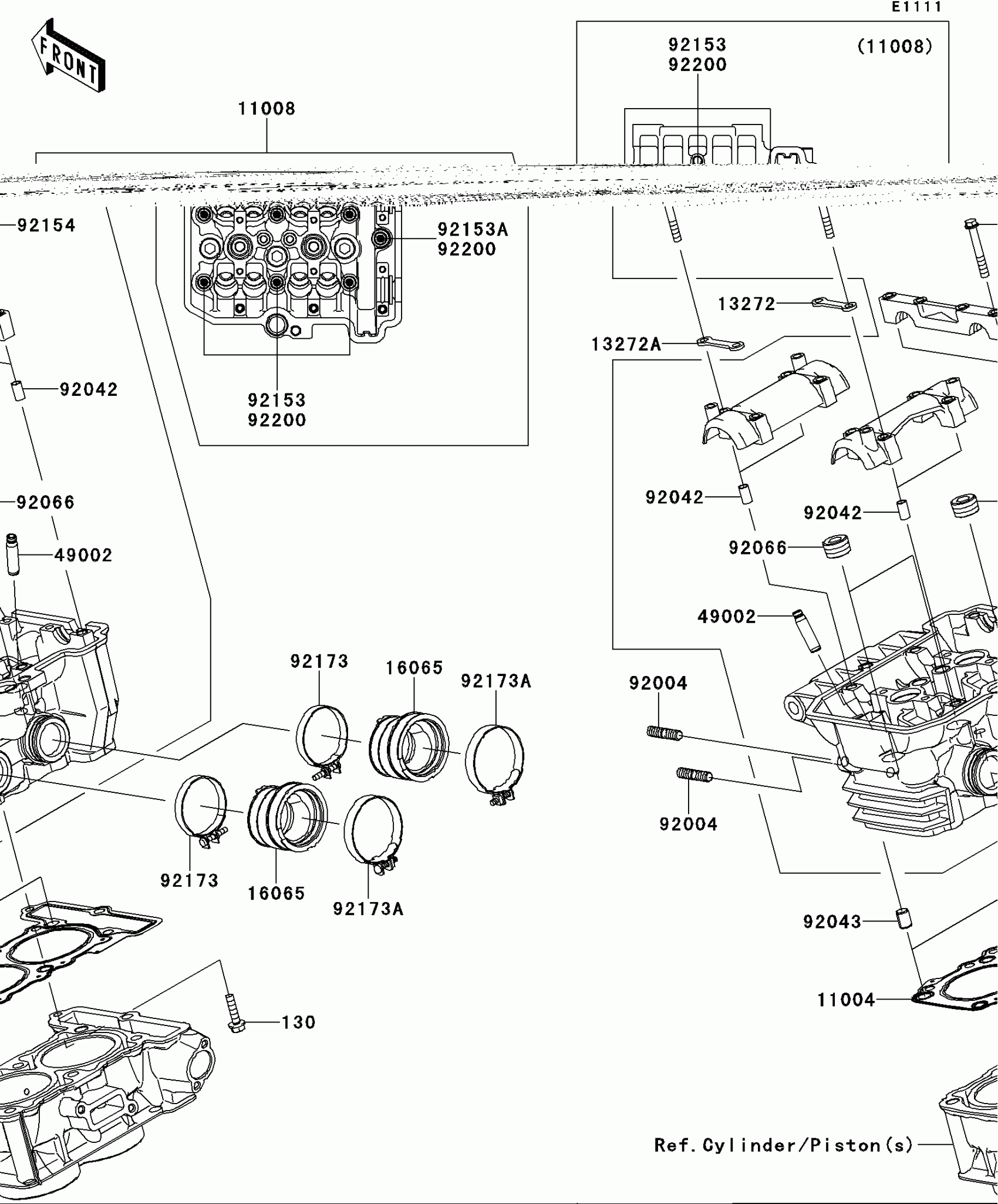

Kawasaki Ninja 300 Cylinder Head Diagram

Description

Price

11004

GASKET-HEAD

11004-0734

$53.57

11008

HEAD-COMP-CYLINDER

11008-0747

$1,281.25

130

BOLT-FLANGED,6X25

130CB0625

$4.12

13272

PLATE,IN

13272-0260

$8.68

13272A

PLATE,EX

13272-0261

$8.68

16065

HOLDER-CARBURETOR

16065-0119

$29.82

49002

GUIDE-VALVE

49002-0009

$34.18

92004

STUD,8X22

92004-0040

$3.60

92042

PIN,DOWEL,6.3X8X14

92042-007

$5.70

92043

PIN,8.2X10X14

92043-1264

$0.64

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92153

BOLT,6X45

92153-0339

$3.32

92153A

BOLT,SOCKET,8X146

92153-1774

$8.68

92153B

BOLT,SOCKET,8X115

92153-1775

$8.05

92173

CLAMP,47MM

92173-0919

$6.63

92173A

CLAMP,53MM

92173-0956

$7.85

92200

WASHER,8.5X18X1.6

92200-0860

$5.65
