2014 Kawasaki Ninja® 300 Accessory Diagram

← All diagrams

Find the part on the Accessory diagram for your 2014 Kawasaki Ninja® 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

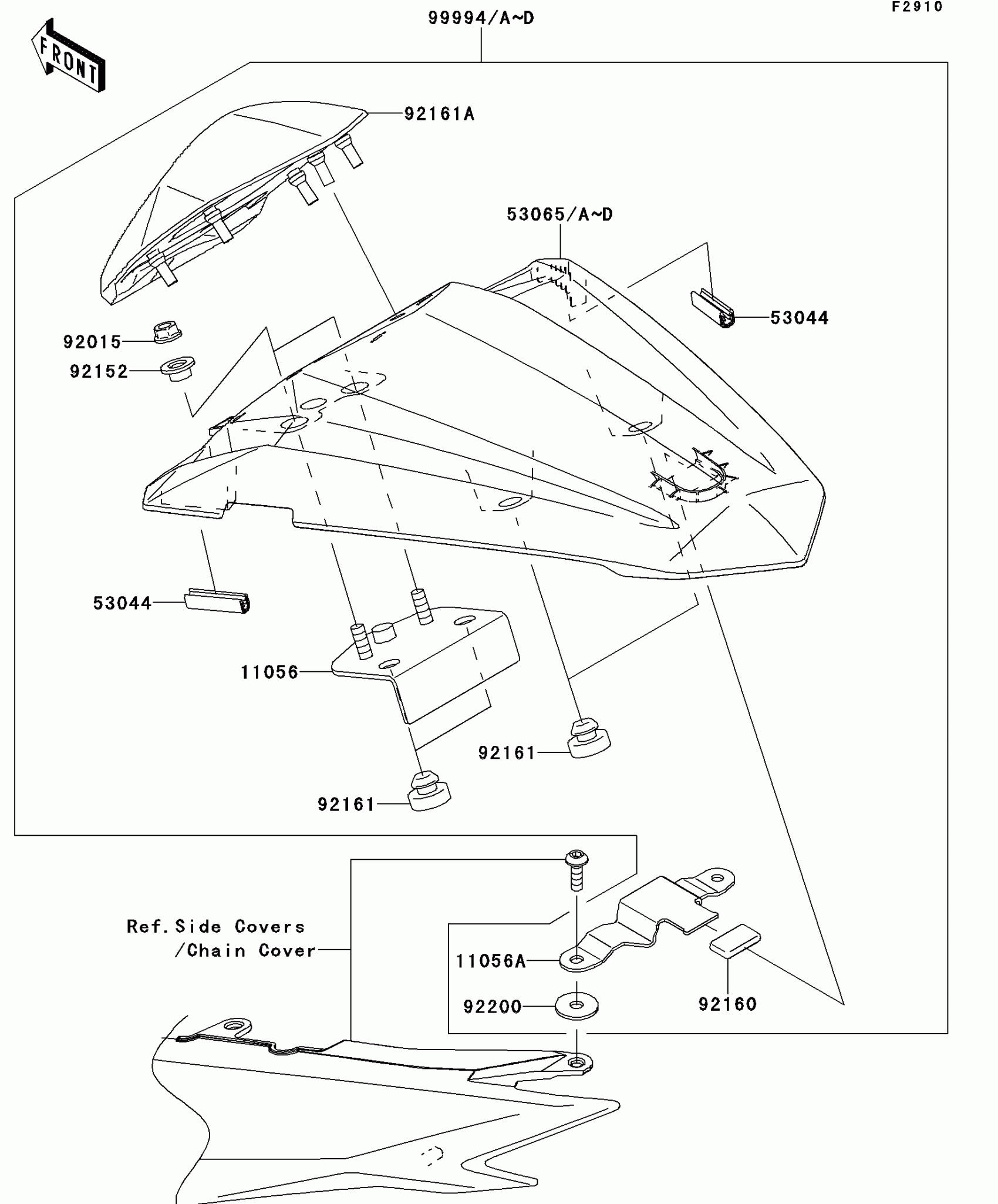

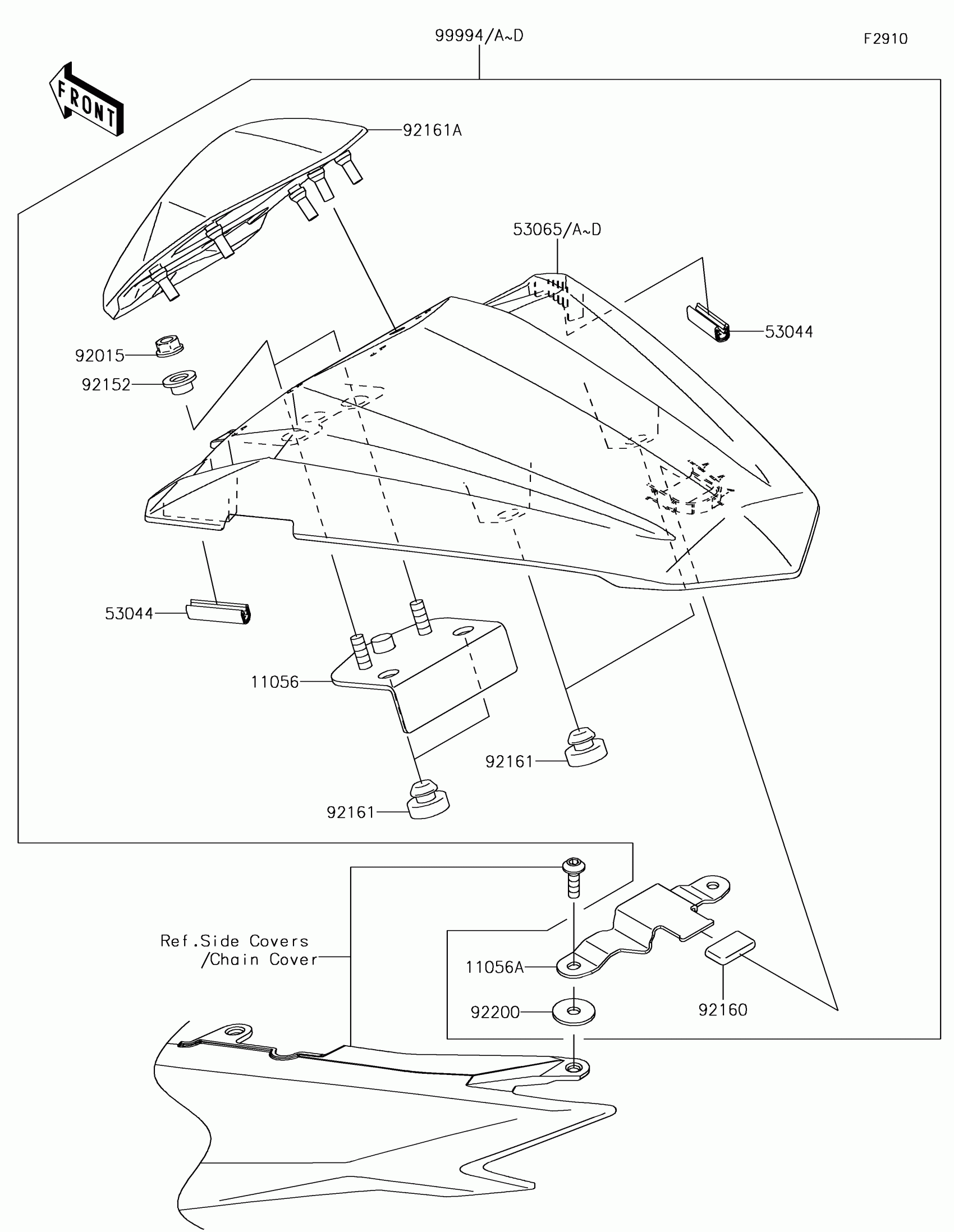

2014 Kawasaki Ninja® 300 Accessory Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-1823

1
Out of stock

11056A

BRACKET

11056-2403

1
Out of stock

53044

TRIM,L=30

53044-0001

1
Out of stock

53065

COVER SEAT,EBONY

53065-0064-H8

1
Out of stock

53065C

COVER SEAT,P.S.WHITE

53065-0064-25Y

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92152

COLLAR,6.8X10(16)X6.6

92152-0842

1
Out of stock

92160

DAMPER

92160-1190

1
Out of stock

92161

DAMPER

92161-0046

1
Out of stock

92161A

DAMPER,CUSHION

92161-1460

1
Out of stock

92200

WASHER,6X20X1.6

92200-0212

1
Out of stock

99994

KIT,SINGLE SEAT,EBONY

99994-0354-H8

1
Out of stock

99994C

KIT,SINGLE SEAT,P.S.WHITE

99994-0354-25Y

1
Out of stock
