2014 Kawasaki Ninja® 300 ABS Turn Signals Diagram

← All diagrams

Find the part on the Turn Signals diagram for your 2014 Kawasaki Ninja® 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

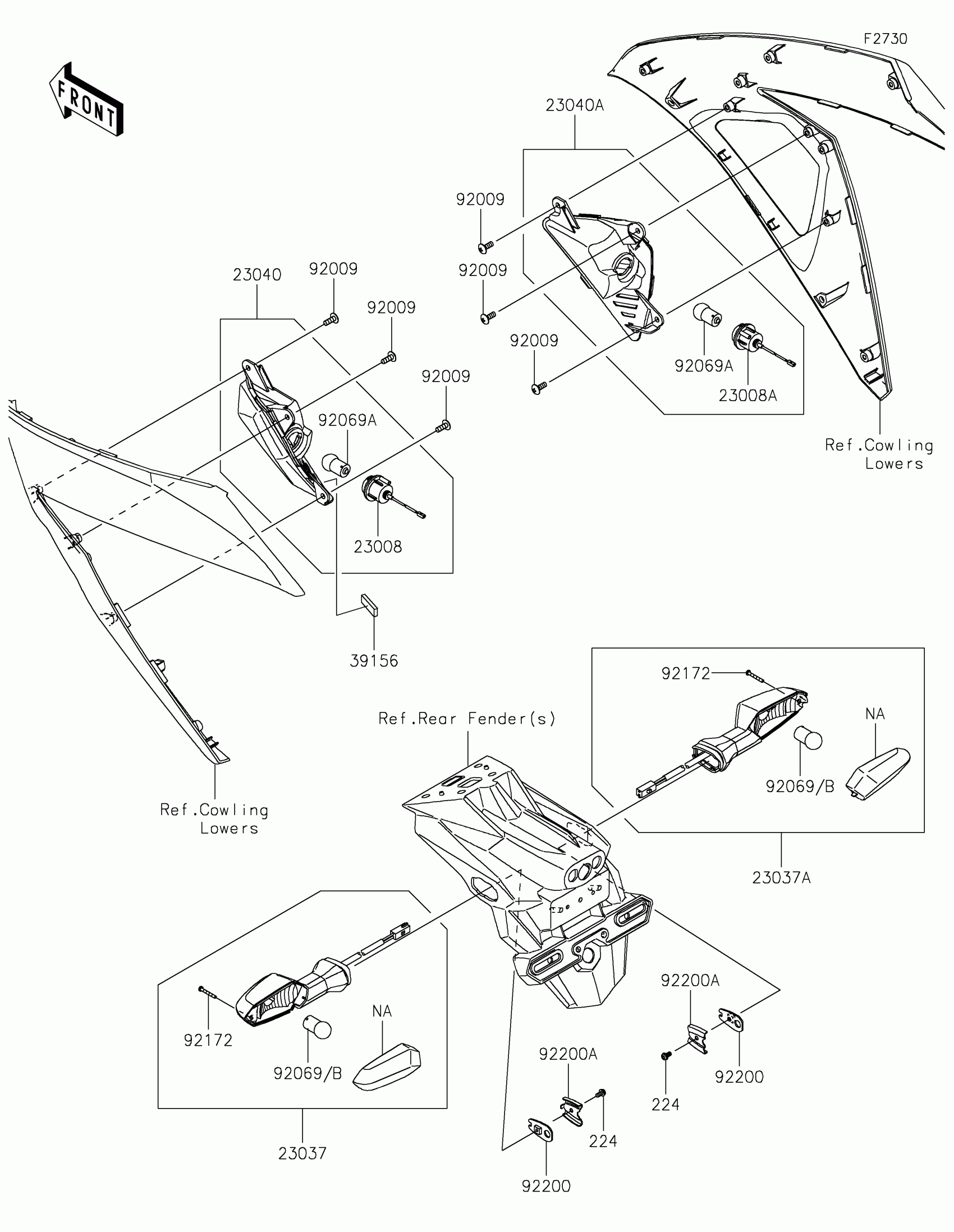

2014 Kawasaki Ninja® 300 ABS Turn Signals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23008

SOCKET-ASSY,FR,LH

23008-0139

1
Out of stock

23008A

SOCKET-ASSY,FR,RH

23008-0144

1
Out of stock

23037

LAMP-ASSY-SIGNAL,RR,LH

23037-0247

1
Out of stock

23037A

LAMP-ASSY-SIGNAL,RR,RH

23037-0248

1
Out of stock

23040

LAMP-SIGNAL,FR,LH

23040-0107

1
Out of stock

23040A

LAMP-SIGNAL,FR,RH

23040-0108

1
Out of stock

39156

PAD,10X30X4

39156-0927

1

$0.85

In stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92069A

BULB,12V 10W

92069-0058

1
Out of stock

92069B

BULB,12V 10W

92069-0076

1
Out of stock

92172

SCREW,2.9X22

92172-0395

1
Out of stock

92200

WASHER,SIGNAL LAMP

92200-0164

1
Out of stock

92200A

WASHER,SIGNAL LAMP

92200-0165

1
Out of stock

224

SCREW-PAN-WP-CROS,4X8

224AB0408

1
Out of stock
