2014 Kawasaki Ninja® 300 ABS Chassis Electrical Equipment Diagram

← All diagrams

Find the part on the Chassis Electrical Equipment diagram for your 2014 Kawasaki Ninja® 300 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

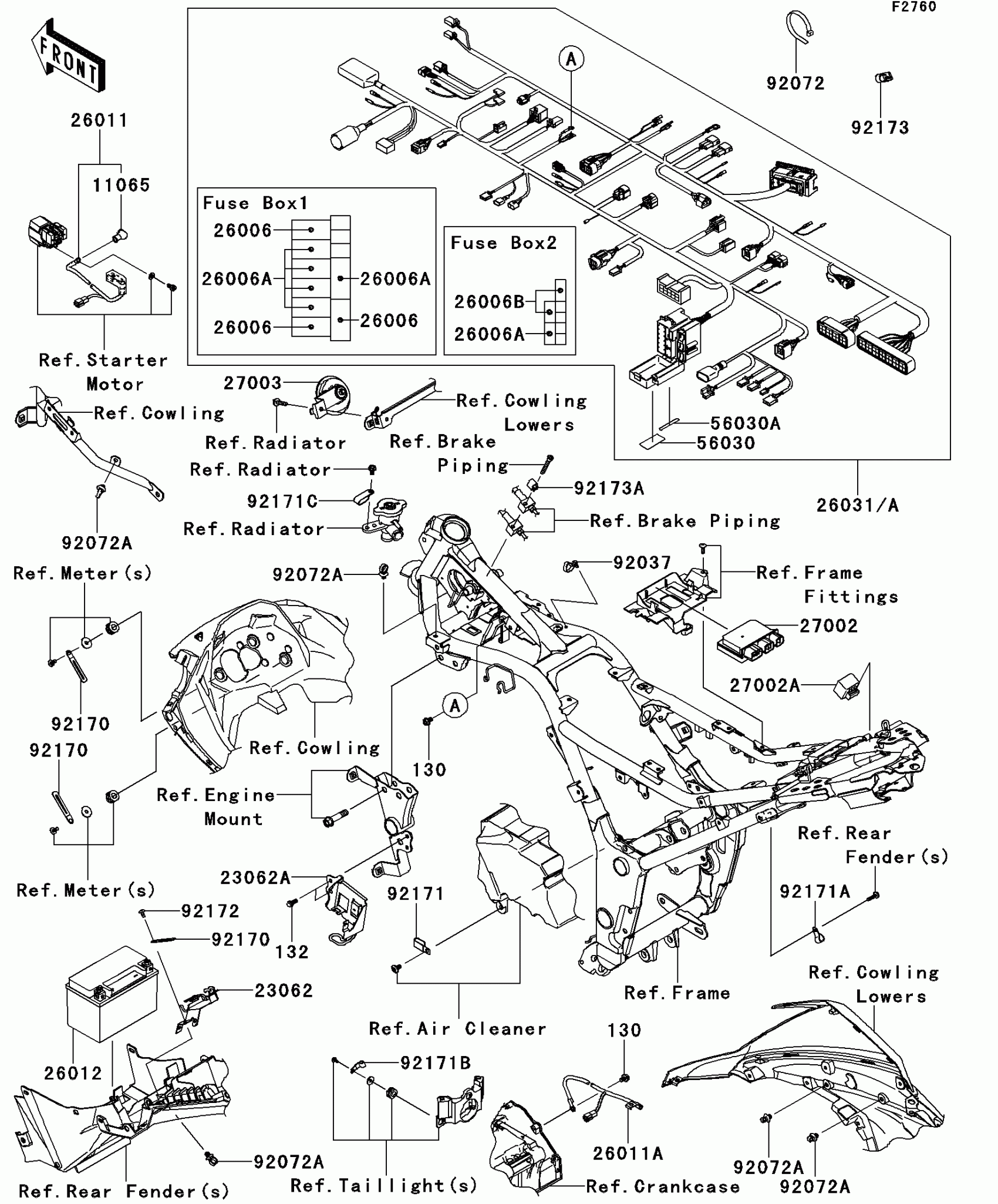

2014 Kawasaki Ninja® 300 ABS Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP

11065-0213

1
Out of stock

23062

BRACKET-COMP

23062-0739

1
Out of stock

23062A

BRACKET-COMP

23062-0781

1
Out of stock

26006

FUSE,MINI BLADE,15A,BLUE

26006-0001

1
Out of stock

26006A

FUSE,MINI BLADE,10A,RED

26006-1078

1
Out of stock

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26011

WIRE-LEAD,BATTERY(+)

26011-0754

1
Out of stock

26011A

WIRE-LEAD,BATTERY(-)

26011-0803

1
Out of stock

26012

BATTERY,FTX9-BS,12V 8AH

26012-0608

1
Out of stock

26031A

HARNESS,MAIN

26031-1540

1
Out of stock

27002

RELAY-ASSY

27002-0007

1
Out of stock

27002A

RELAY-ASSY

27002-0059

1
Out of stock

27003

HORN

27003-0085

1
Out of stock

56030

LABEL,FUSE BOX1

56030-0779

1
Out of stock

56030A

LABEL,FUSE BOX2

56030-0780

1
Out of stock

92037

CLAMP,SPEED,L=58

92037-1163

1
Out of stock

92072

BAND,L=202

92072-1195

1
Out of stock

92072A

BAND,OS170-FT7(BLACK)

92072-1414

1
Out of stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92171

CLAMP

92171-0305

1

$7.12

In stock

92171A

CLAMP

92171-0389

1

$4.31

In stock

92171B

CLAMP

92171-1539

1
Out of stock

92171C

CLAMP

92171-1597

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0262

1
Out of stock

92173

CLAMP

92173-0907

1
Out of stock

92173A

CLAMP

92173-0978

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

132

1

$1.31

In stock
