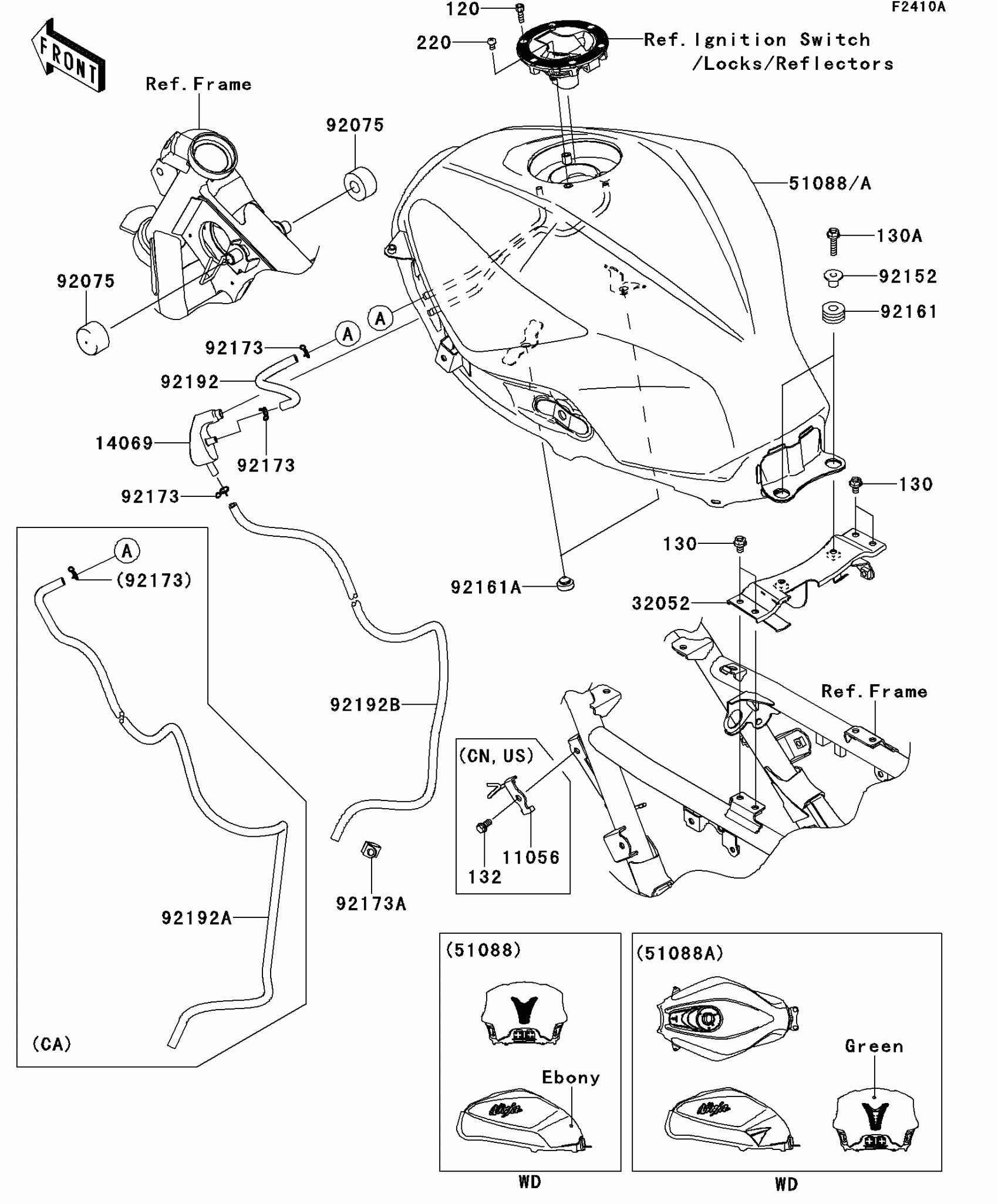

Kawasaki NINJA® 300 ABS SE Fuel Tank(BEFA) Diagram

Description

Price

11056

BRACKET,DRAIN TUBE

11056-1633

$4.61

14069

BREATHER

14069-0011

$11.37

32052

BRACKET-TANK

32052-0733

$29.69

51088

TANK-COMP-FUEL,EBONY

51088-5215-H8

$1,012.99

51088A

TANK-COMP-FUEL,L.GREEN

51088-5216-777

$1,182.22

92075

DAMPER,FUEL TANK,FR

92075-1115

$4.93

92152

COLLAR,6.5X10X13.1

92152-0332

$4.95

92161

DAMPER,10X24X12

92161-0927

$4.53

92161A

DAMPER,9.5X18X6

92161-1473

$1.24

92173

CLAMP

92173-0049

$3.39

92173

CLAMP

92173-0049

$3.39

92173A

CLAMP

92173-0978

$4.95

92192

TUBE,FUEL

92192-0310

$3.97

92192A

TUBE,DRAIN

92192-1096

$22.39

92192B

TUBE,5X9X900

92192-1237

$15.56

120

BOLT-SOCKET,5X16

120CB0516

$0.65

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X25

130BA0625

$0.97

132

BOLT-FLANGED-SMALL,6X12

132BA0612

$0.97

220

SCREW-PAN-CROS,5X8

220AB0508

$0.42
