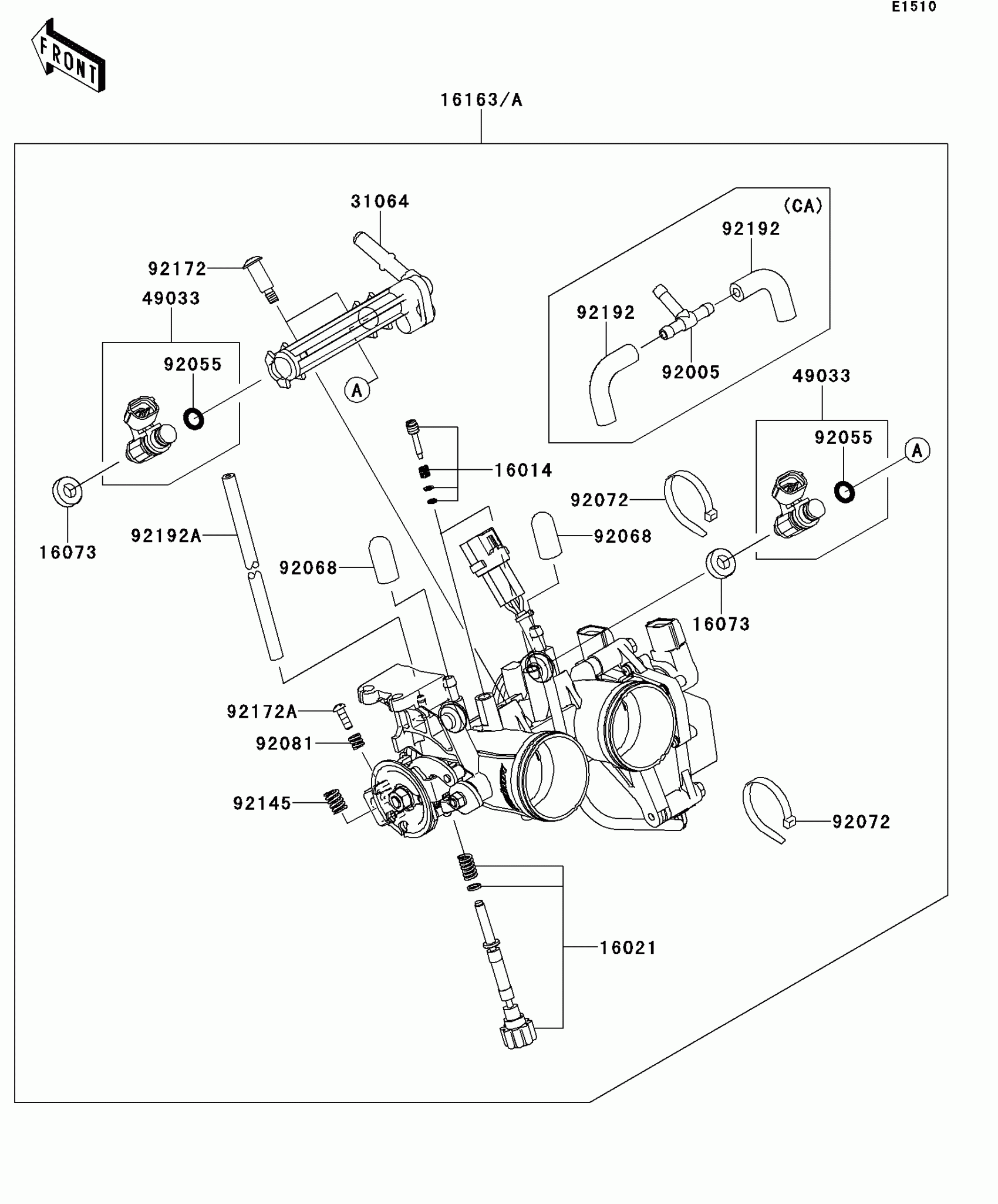

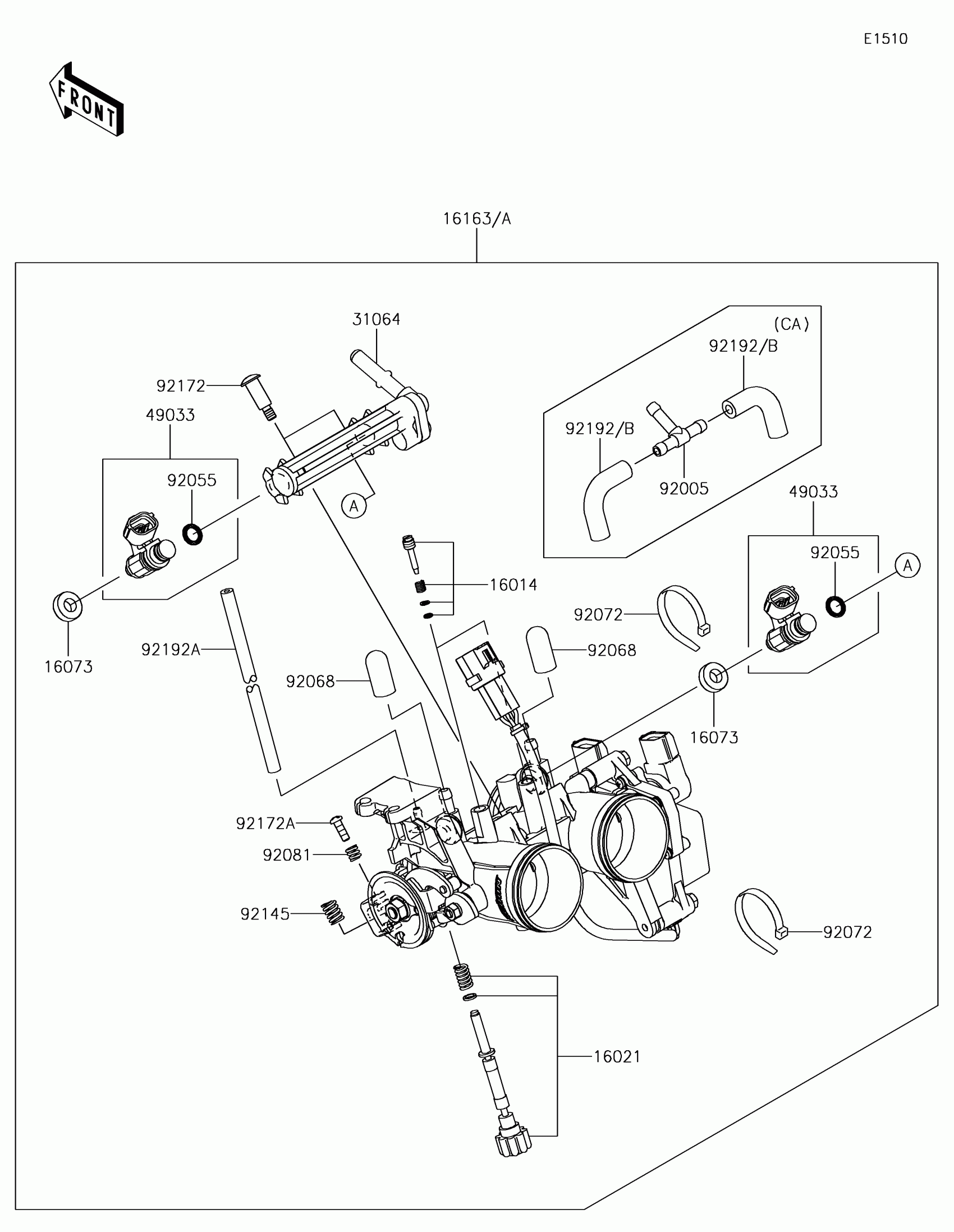

Kawasaki NINJA® 300 ABS Throttle Diagram

Description

Price

16014

SCREW-PILOT AIR

16014-0002

$20.40

16021

SCREW-THROTTLE STOP

16021-0027

$74.22

16073

INSULATOR

16073-0129

$4.53

16163A

THROTTLE-ASSY

16163-0750

$714.95

31064

PIPE-COMP,FUEL

31064-0164

$89.72

49033

NOZZLE-INJECTION

49033-0558

$135.75

92005

FITTING,3WAY

92005-0730

$14.00

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.09

92072

BAND,SUB-HARNESS

92072-0012

$3.81

92081

SPRING

92081-1620

$3.78

92145

SPRING

92145-0656

$5.97

92172

SCREW,PIPE INJECTION

92172-0064

$1.98

92172A

SCREW

92172-0129

$4.92

92192

TUBE,53MM

92192-1114

$28.94

92192A

TUBE,3X7X200

92192-1170

$3.92
