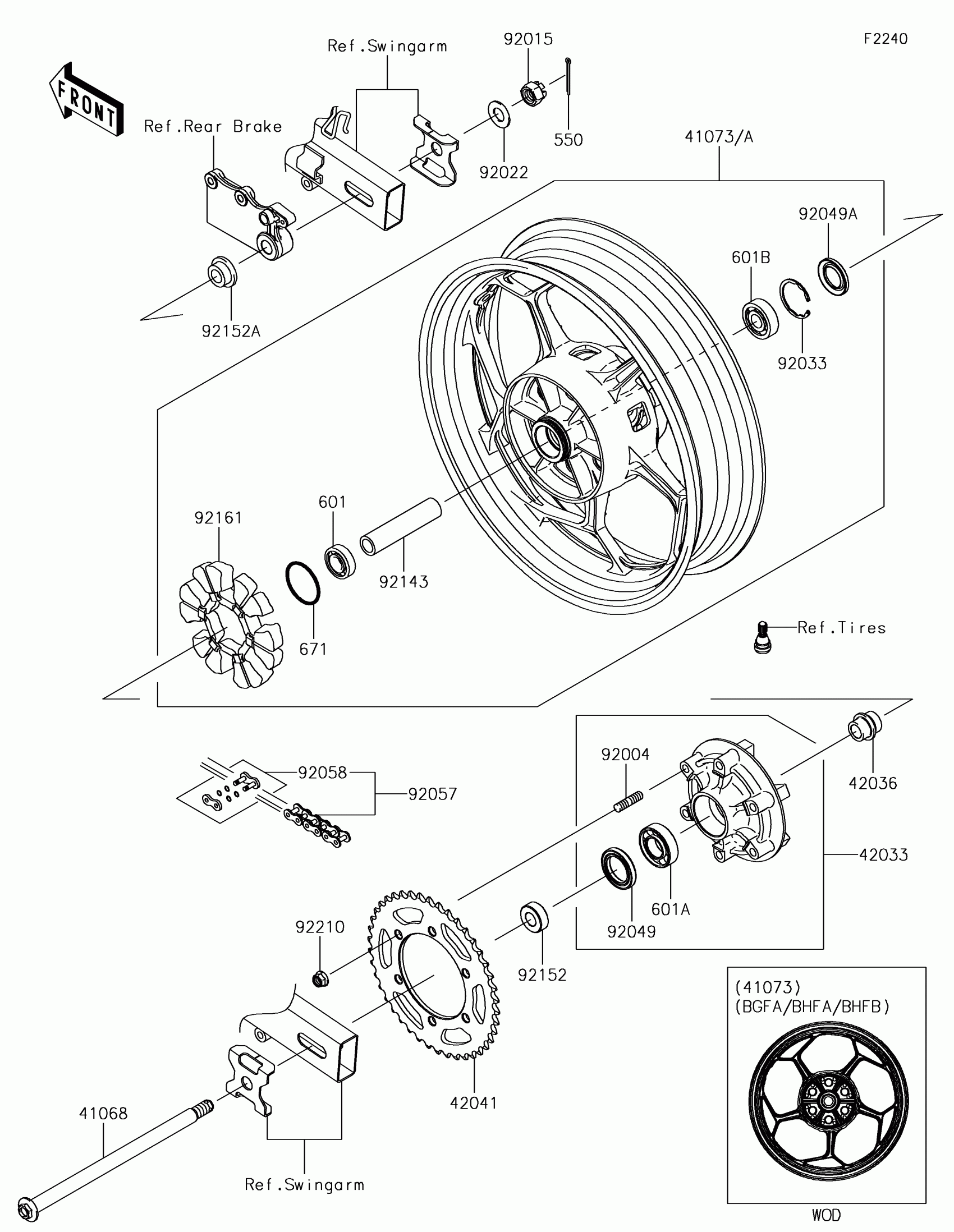

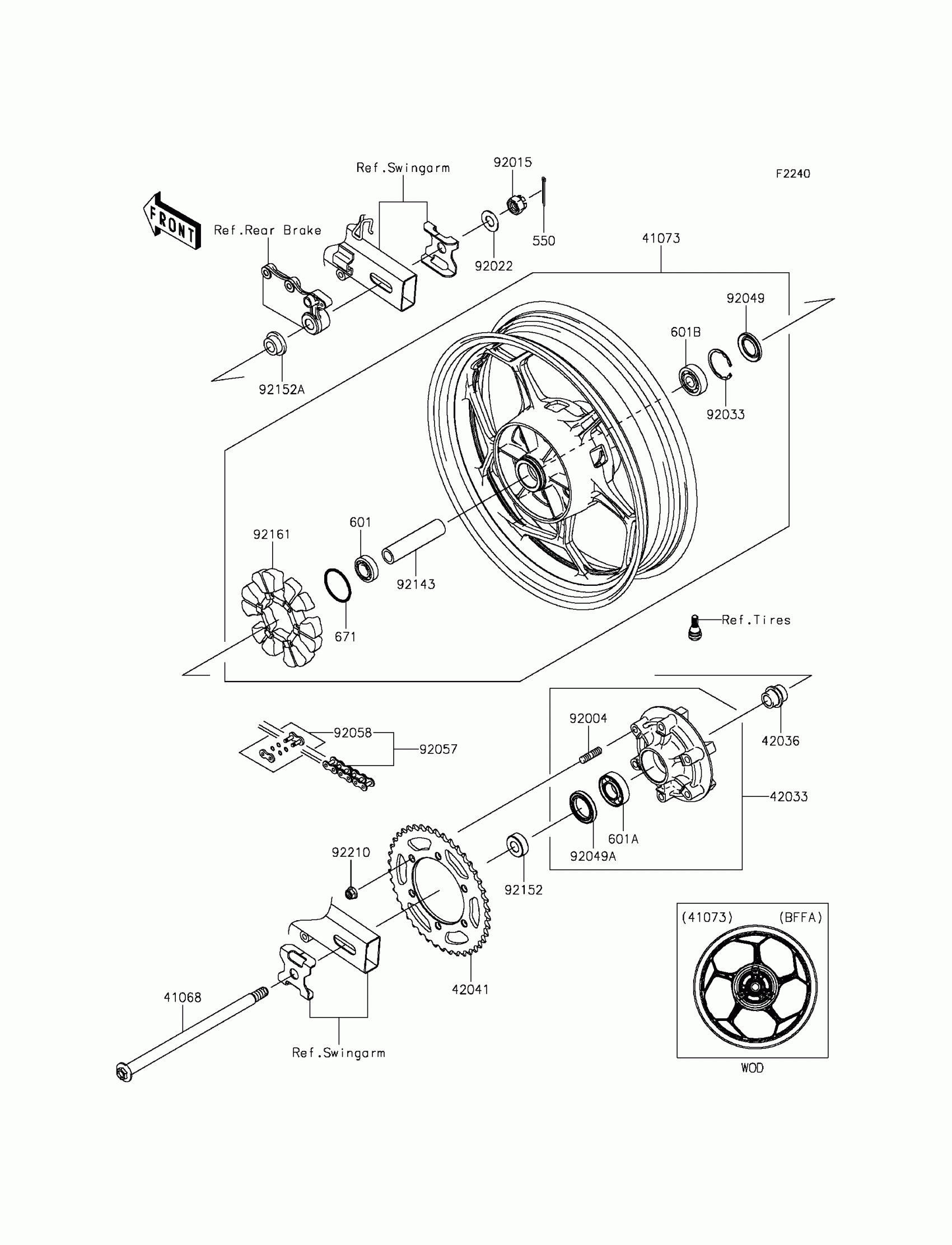

Kawasaki NINJA® 300 ABS Rear Wheel/Chain Diagram

Description

Price

550

PIN-COTTER,4.0X35

550AA4035

$2.17

601

BEARING-BALL,#6203UUC3

601B6203UU

$22.99

601A

BEARING-BALL,#6205G

601B6205G

$19.08

601B

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

$33.26

671

O RING

671B2550

$2.29

41068

AXLE,RR

41068-1223

$65.82

41073

WHEEL-ASSY,RR,G.BLACK

41073-0657-18F

$748.85

42033

COUPLING-ASSY,RR HUB

42033-0044

$241.69

42036

SLEEVE,RR HUB,L=30

42036-1055

$27.73

42041

SPROCKET-HUB,42T

42041-0118

$85.02

92004

STUD,10X19

92004-0028

$8.92

92015

NUT,CASTLE,16MM

92015-1947

$9.91

92022

WASHER,17.5X34X2.0

92022-1916

$4.69

92033

RING-SNAP,47MM

92033-1042

$4.22

92049

SEAL-OIL,BJN28475

92049-1056

$13.08

92049A

SEAL-OIL

92049-1287

$13.08

92057

CHAIN,DRIVE,EK520SR-O2X106L

92057-0019

$224.21

92058

JOINT-CHAIN,DRIVE

92058-1102

$15.06

92143

COLLAR,RR HUB,L=111

92143-1416

$24.41

92152

COLLAR,17X35X13

92152-0843

$27.50

92152A

COLLAR,17X28(38)X15

92152-0844

$30.68

92161

DAMPER,RR HUB SHOCK

92161-0700

$85.61

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61
